Service guide | Disassembling and Assembling, APP(W) 5.1-10.2
© Danfoss | DCS (im) | 2017.06 180R9238 | DKCFN.PI.078.F3.02 | 521B1196 | 9

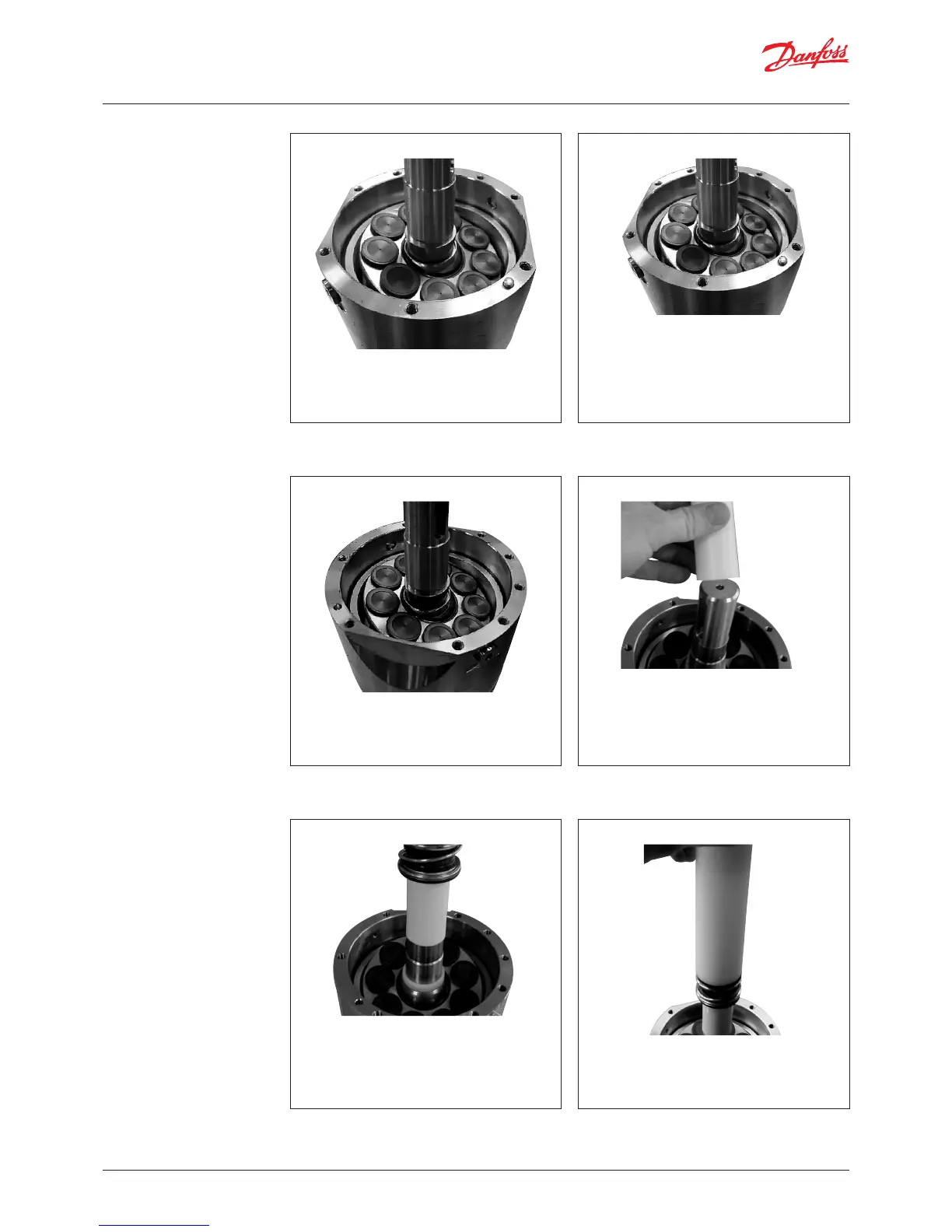

7. Scrap the old stop bush (if black) and
place the new white stop bush on top of
the retaining guide.
10. Slide the new shaft seal over the torpedo
with the carbon seal face pointing
upwards (see also drawing on last page).
IMPORTANT: Be careful not to damage
the carbon seal face on the shaft seal.
6. Ensure that no dirt has entered into the
pump.
IMPORTANT: If loose particles are
observed, the pump must be
dismantled and thoroughly cleaned
with clean filtered water.
8. Fit the hollow bush (torpedo) onto the
shaft.
9. Thoroughly wet the torpedo, shaft and
replacement shaft seal with plenty of clean
filtered water. Do not use silicone grease.
11. Use the plastic assembly tool provided,
large diameter pointing downwards, to
press the seal home against the shoulder
of the spacer.
