1 Installing the outdoor unit
It is essential that the outdoor unit is installed by two people.
1.1 Check the delivery
The outdoor unit is delivered as three items:
• the outdoor unit, on a wooden pallet
• a box containing the stand, adjustable feet and all the necessary screws
• aboxcontainingcovers
The following tools are required for assembly and installation:
• Wrench, or equivalent, 10 mm
• Wrench, or equivalent, 13 mm
• Screwdriver, or equivalent, torx TX25
• Cross head screwdriver
• Drill bit Ø 3 mm
• MillingcutterØ 6 mm, or equivalent
• Drill
Check that the following screws have been supplied:
• 8 x M6x10, hex screw
• 4 x M6x10, hex screw
• 5 x M6x15, torx TX25
• 2 x panel screws, crosshead
1.2 Assembling the stand

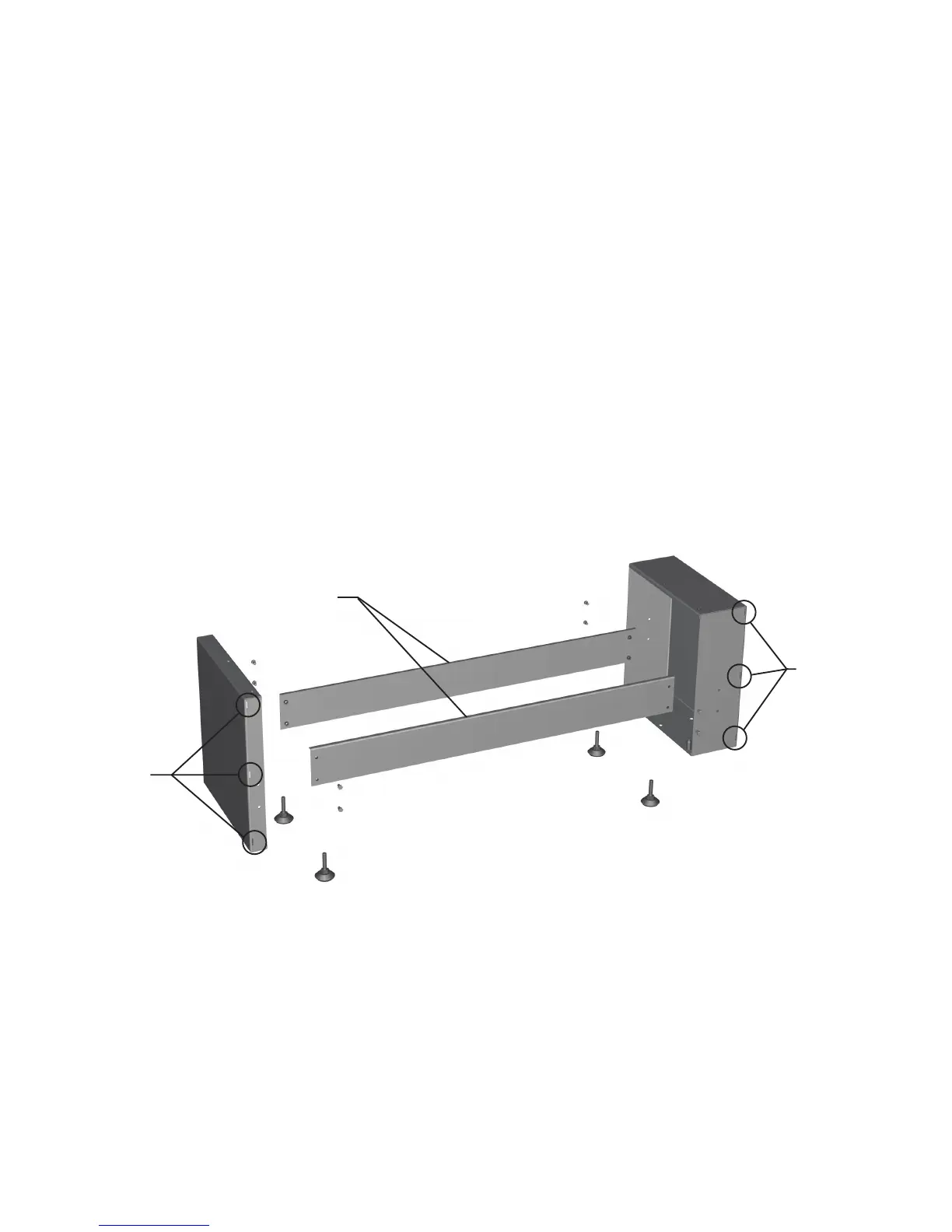

1. Screw the two horizontal struts together (1) using the two ends (2) as illustrated below. Use 8 x M6x10 screws. The bent
edges of the horizontal struts must be facing upwards and inwards.
Figure 1: Assembling the stand.
2. Screw the adjustable feet (3) into the holes under the ends.
1.3 Preparing the outdoor unit
While the outdoor section remains on the pallet it should be prepared for placing on the stand. Carry out the following:
3. There are three M6x20 screws on the lower edge of the outdoor unit. Unscrew them so that 2-3 mm of the thread
remains. Use a torx TX25 screwdriver, or equivalent.
4. Raise the outdoor unit. NOTE! Do not lift the side plates.
5. Remove the side plates. They are held in place by clamps and so are removed by pulling outwards.
6. Remove all four screwed lifting eyes. Use a 13 mm wrench, or equivalent.
1
1
2
3
3
2
Slit
Slit
Bent edge
