1.4 Assembling the outdoor unit on the stand
7. Lift the outdoor unit into the place on the stand.

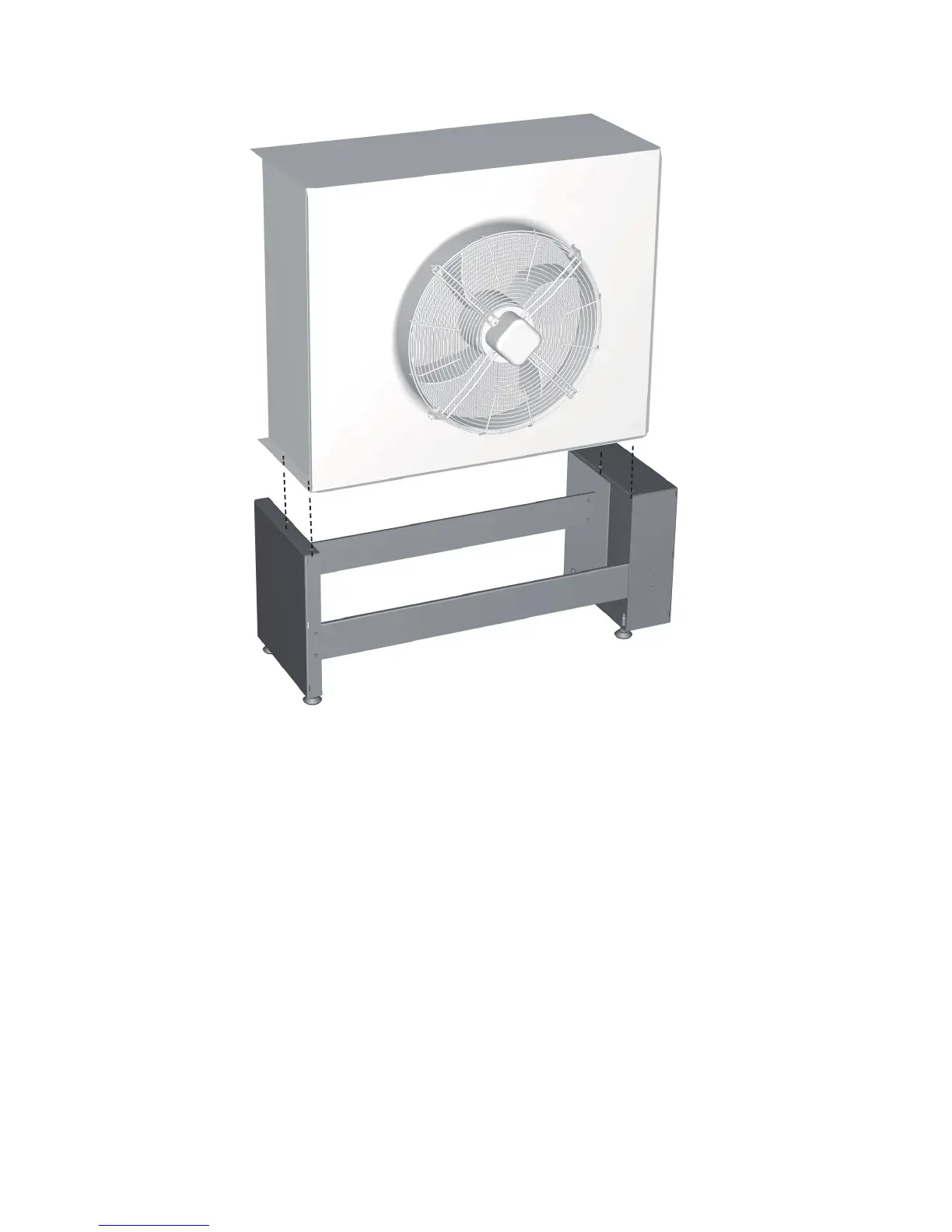

Figure 2: Lift the outdoor unit onto the stand.
8. Screw the outdoor unit onto the stand. Use 4 x M6x20 screws. It may be necessary to push and pull the stand slightly in
order to get the screw holes to align.
9. Reinstall the side panels.
1.5 Assembling the front cover
⚠
Leave the transport protection on the corners of the front panel in place during installation to prevent scratches on the
outer section.
10. Hook the lower edge of the front cover onto at least one of the three screws in the bottom edge of the stand.
11. Secure the upper edge of the front panel temporarily in the centre hole. Use 1 x M6x15 torx TX25.
12. Align all the three screws in the lower edge.
13. Screw the three screws in the lower edge fully. Use a torx TX25 screwdriver, or equivalent.
