Danfoss DHP-A Installation Instruction

4
VMBMF302
14. Secure the upper edge of the front cover. Use 3 x M6x15 torx TX25.

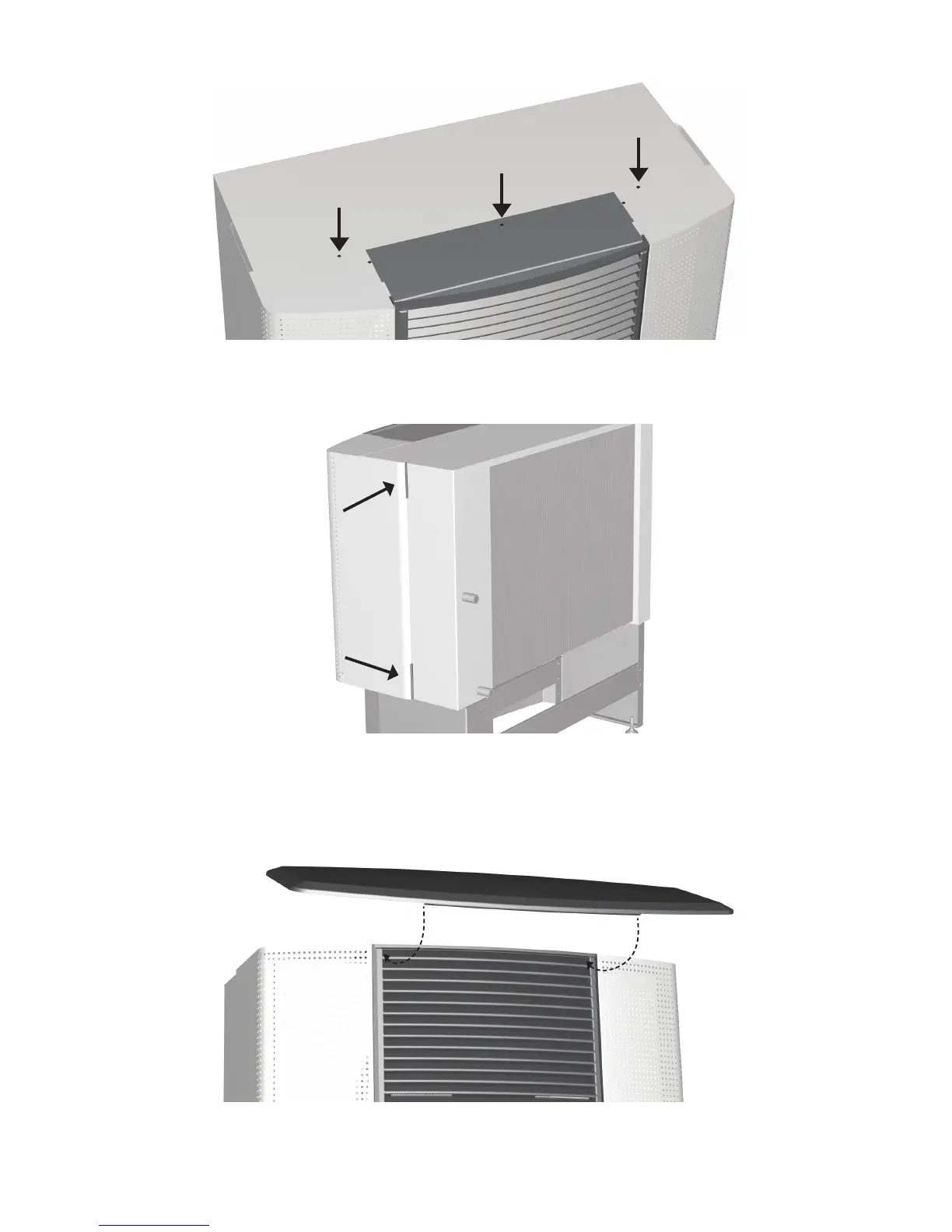

Figure 3: Secure the front cover.
15. Remove the transport protection on the four corners of the front panel.
Figure 4: Transport protection.
1.6 Assembling the cover and cover plate
16. Hook the cover at the front edge on the front cover.
Figure 5: Hook the front cover into place.

Danfoss DHP-A Specifications

General

Brand	Danfoss
Model	DHP-A
Category	Heat Pump
Language	English
