5
VMBMF302
17. Secure the cover using a screw on each side. Use 2 x cross head screws.
If the cover does not align with the side cover plates it may be necessary to drill new Ø 3 mm holes:
Mark for the new holes
Lift off the cover
Drill the holes
Install and screw the cover into place

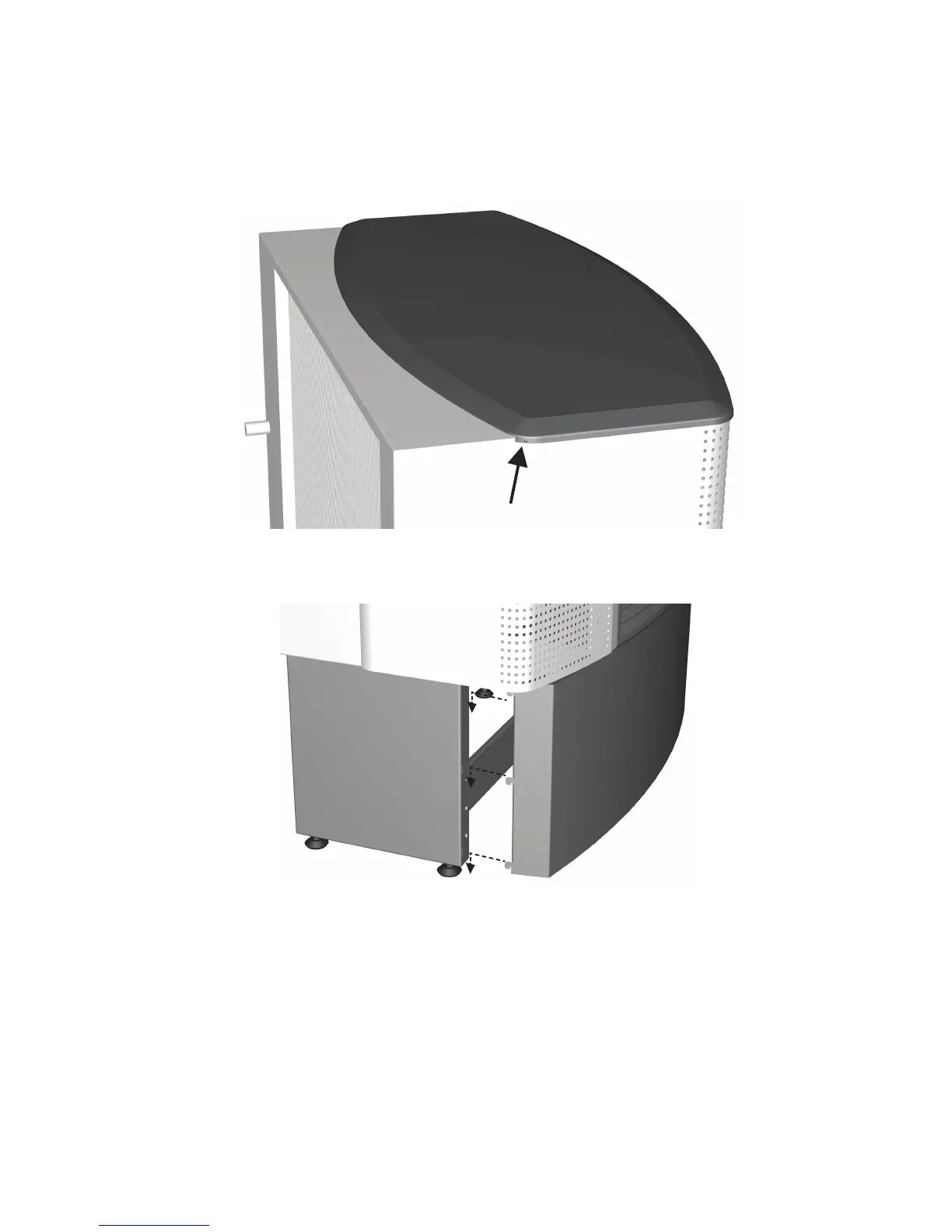

Figure 6: Screw the front cover into place.
18. Hook the cover onto the stand.
Figure 7: Hook the cover into place.
