11
VMBMA602

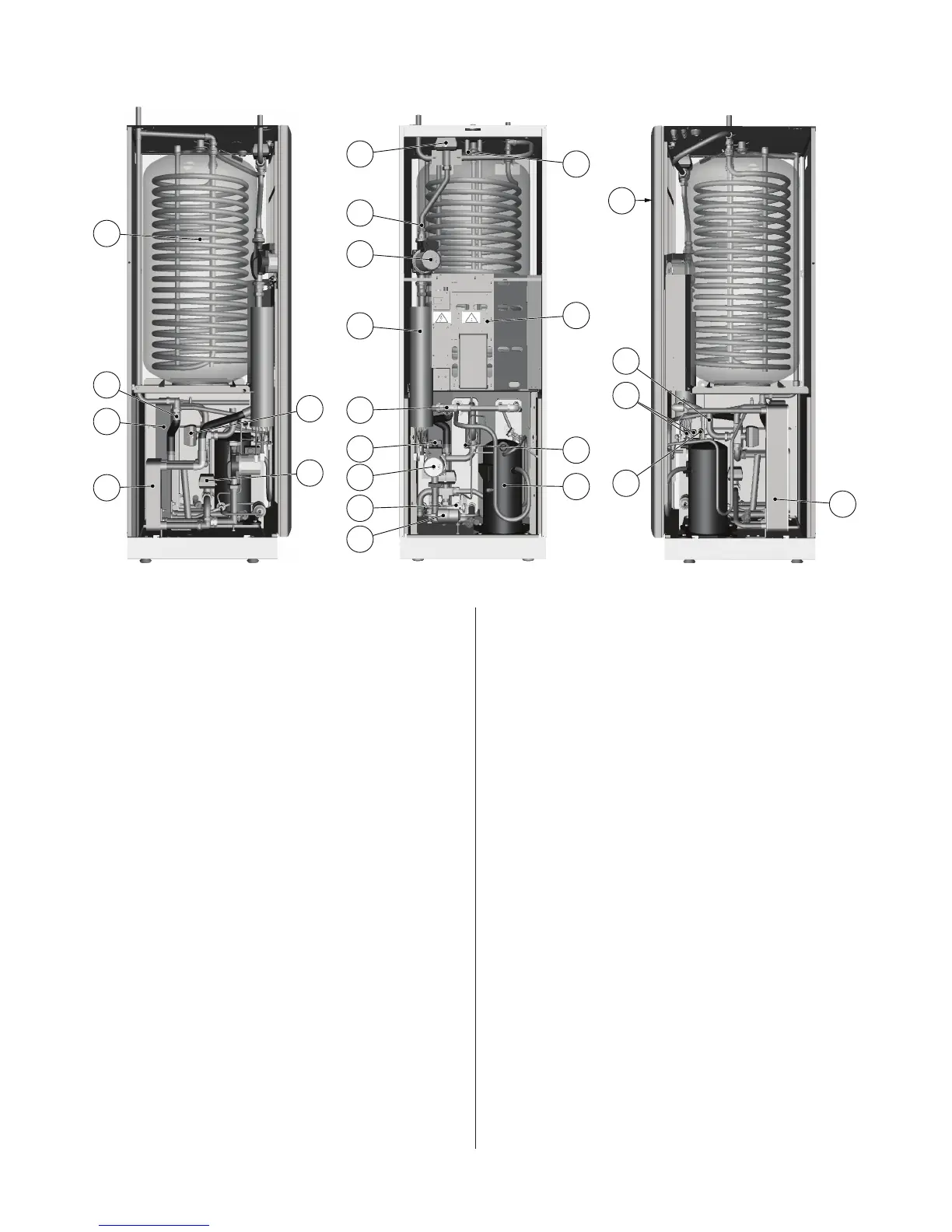

Left view Front view Right view
Components
1
14
16
15
10
13
4
3
5
17
18
19
21
20
24
2
6
7
22
23
8
9
11
12
DHP-C, components.Figure 9:
Position Name
1 Water heater, 180 litres
2 Return line sensor, heating system
3 Evaporator, insulated
4 HGW shunt valve
5 Exchange valve cooling
6 Shunt cooling
7 Exchange valve, heating/hot water
8 Supply line sensor
9 Heating system circulation pump
10 Auxiliary heating, immersion heater
11 Brine in
12 Heating system supply line
13 Brine out
14 Brine pump brine system
15 Expansion valve
16 Drying filter
17 Hot water temperature sensor (displays maximum temperature)
18 Control panel for control equipment
19 Electrical panel
20 Compressor
21 Low pressure pressostat
22 Operating pressostats
23 HGW sensor
24 Condenser with primary side drain
