Danfoss DHP-H - Regulation Information

9
VMBMA602

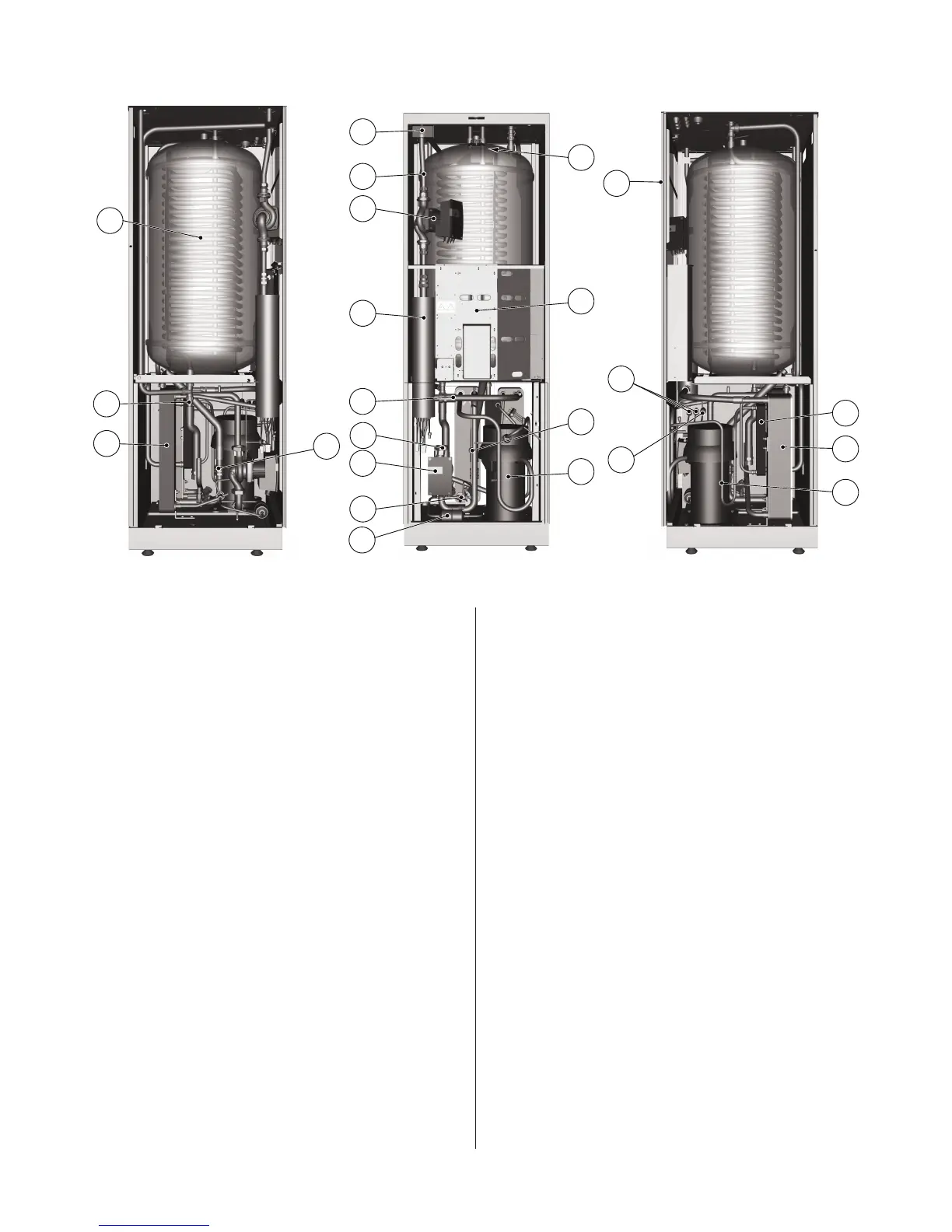

Left view Front view Right view
Components
DHP-H Opti Pro, components.Figure 7:
Position Name
1 Water heater, 180 litres
2 Return line sensor, heating system
3 Evaporator, insulated
4 HGW shunt valve
5 Supply line sensor
6 Heating system circulation pump
7 Auxiliary heating, immersion heater
8 Brine in
9 Heating system supply line
10 Brine out
11 Brine pump brine system
12 Drying filter
13 Expansion valve
14 Hot water temperature sensor (displays maximum temperature)
15 Control panel for control equipment
16 Electrical panel
17 Compressor
18 Low pressure pressostat
19 Operating pressostats
20 High pressure pressostat
21 Condenser with primary side drain
22 De-superheater
23 HGW sensor
9
14
1
3
13
12
11
2
21
22
23
17
18
16
10
4
5
6
7
8
15
19
20
