Danfoss EKE 1C

© Danfoss | Climate Solutions | 2023.10
Danfoss 80G317.10
MMIGRS2
ACCCBI080G0075
CAN RJ
R120 CANH CANL GND RGND D+ D- COM AO1 CAN RJ
24V+ 15V+ 5V+ COM AI5 AI4 AI3 AI2 AI1 COM COM DI2 DI1 COM
CO
M
A
O1
Superheat controller
EKE 1C - 080G5400
2-way screw connector for
power supply
4-way screw connector for
CANbus network
RJ
Termination Jumper
between R and H
CAN connector
For cable >3m (only EKE 1C)
Danfoss 34G306.10
AN269954243889en-000905 | 11
Danfoss MMIGRS2 display
Up
Escape / cancel
Right
Left
Enter
Down
Controller name
Primary readout
Operating status
Evap. temperature
Evap. pressure
Valve OD
Navigation help
S2 – S4
Media
temperature
Reference
point
Important note:
• Max. distance between controller and display is
3 m over CAN RJ.
• CANbus requires termination in both ends of the cable
by a 120 Ohm resistor to ensure reliable communication.
• On EKE 1C and MMI, the termination must be included
by shorting CAN R and CAN H with a wire.
• No external power supply for MMIGRS2 is needed while
using CAN RJ connector.

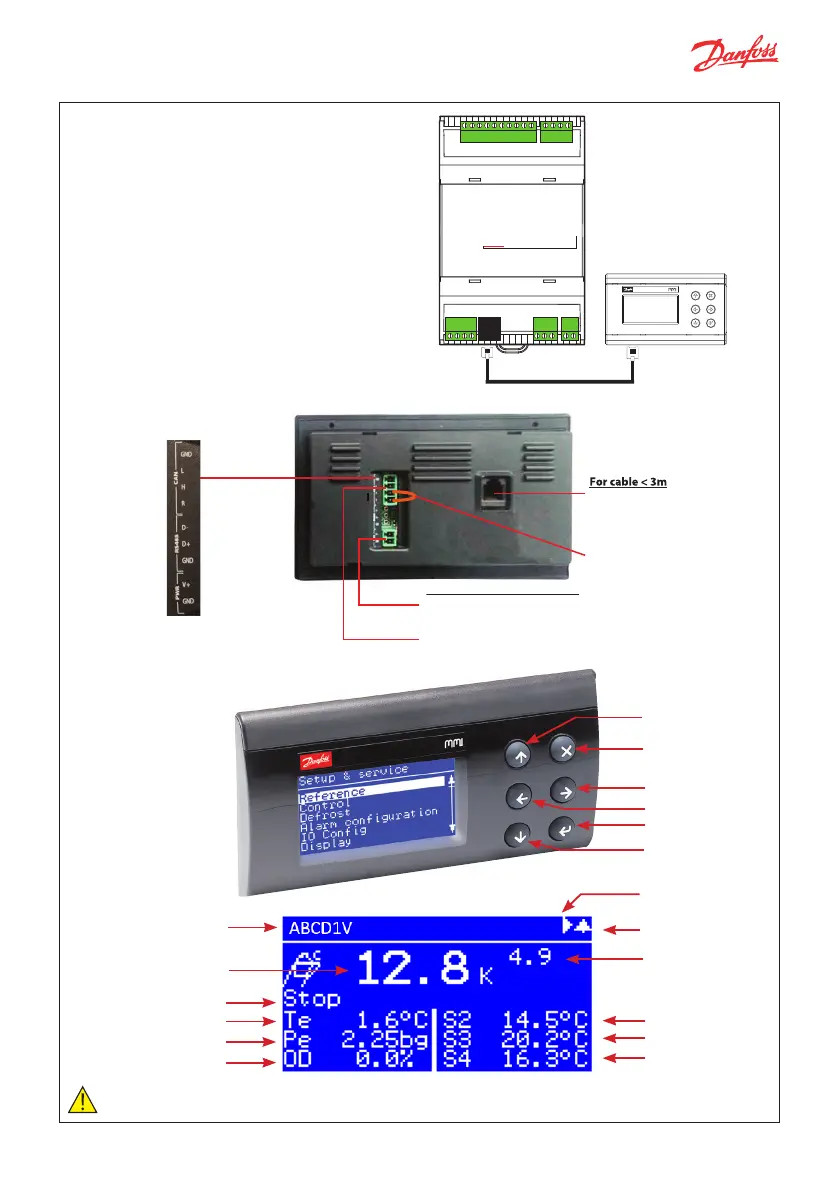

Connecting external MMIGRS2 display
MMIGRS2 display can be used to set up EKE 1C. The display
can be used not only for setting up the necessary
parameters, but also as an external display during
operation to show important parameters, e.g. degree of
opening of valve, superheat, etc.
Homescreen
Alarm indicator
MMIGRS2 (Back view)
MMIGRS2 (Front view)
Superheat controller
Note: Setup and service menu requires login with the default password 100 ( daily use),
200 (service use) or 300 (commissioning use). Long press Enter key to access login menu.
