Danfoss EKE 1C Installation Guide

© Danfoss | Climate Solutions | 2023.10
1
2
3
Danfoss 80G314.10
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
R120 CANH CANL GND RGND D+ D- COM AO1 CAN RJ
15V+ 5V+ COM AI5 AI4 AI3 AI2 AI1 COM COM DI2 DI1 COM
–/~
+/~
GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
PWR 24V Vbat STEPPER VALVE DIGITAL OUTPUT
R120 CANH CANL GND RGND D+ D-
CAN RJ
CAN CAN RJ
RS485 AO1
15V+ 5V+ COM AI5 AI4 AI3 AI2 AI1 COM COM DI2 DI1 COM
ANALOG INPUT 1-5
COM AO1
Superheat controller
EKE 1C - 080G5400
Superheat controller
EKE 1C - 080G5400
AN269954243889en-000905 | 4

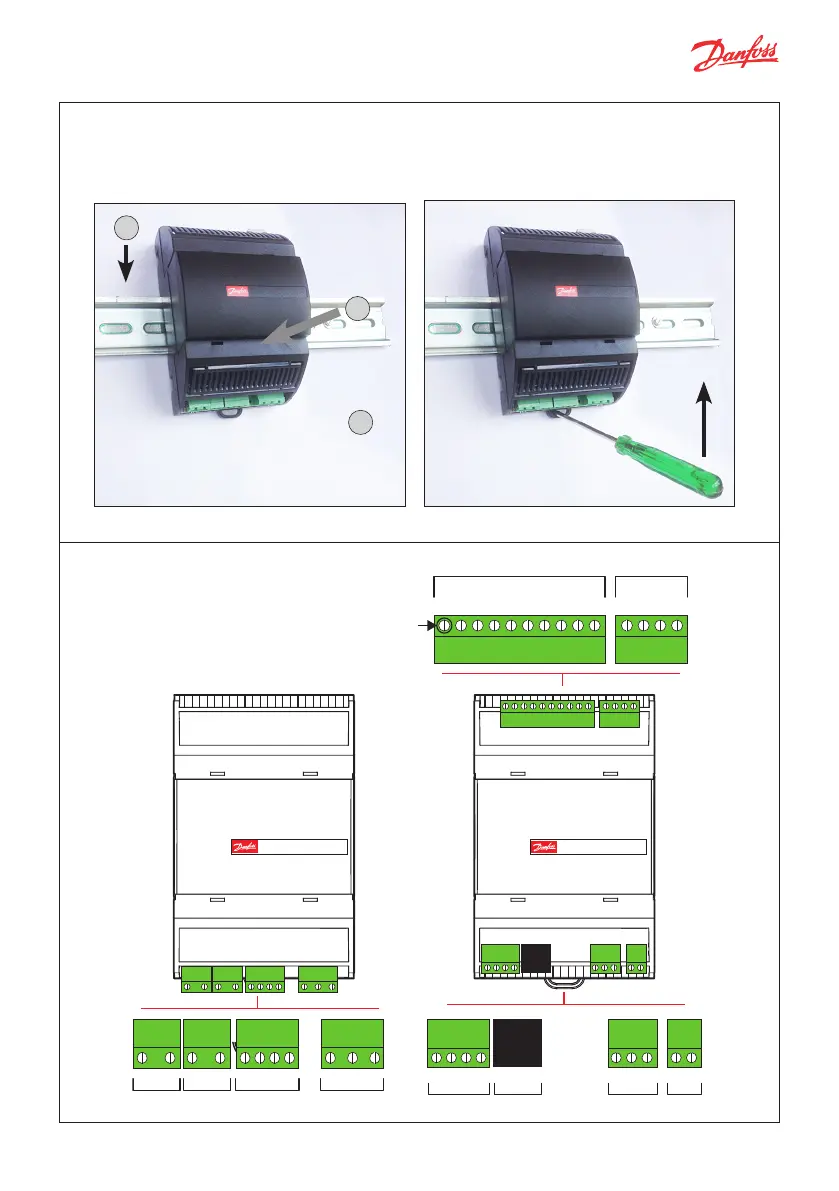

DIN rail mounting / demounting
The unit can be mounted onto a 35 mm DIN rail simply by snapping it into place and securing it with a stopper to prevent
sliding. It is demounted by gently pulling the stirrup located in the base of the housing.
“Click”
Connection overview: EKE 1C
Front board
connections
Not used
Back board
connections
ANALOG INPUT 1-5
DIGITAL INPUT 1-2
DIGITAL OUTPUTSTEPPER VALVE
Superheat controller Superheat controller
Not used
