DIP switch
The driver has one 8-position DIP switch per stepper motor output.
Note: DIP switch must be changed during POWER OFF only, Any change during power on will not take eect until driver
switches o.
Valve selection

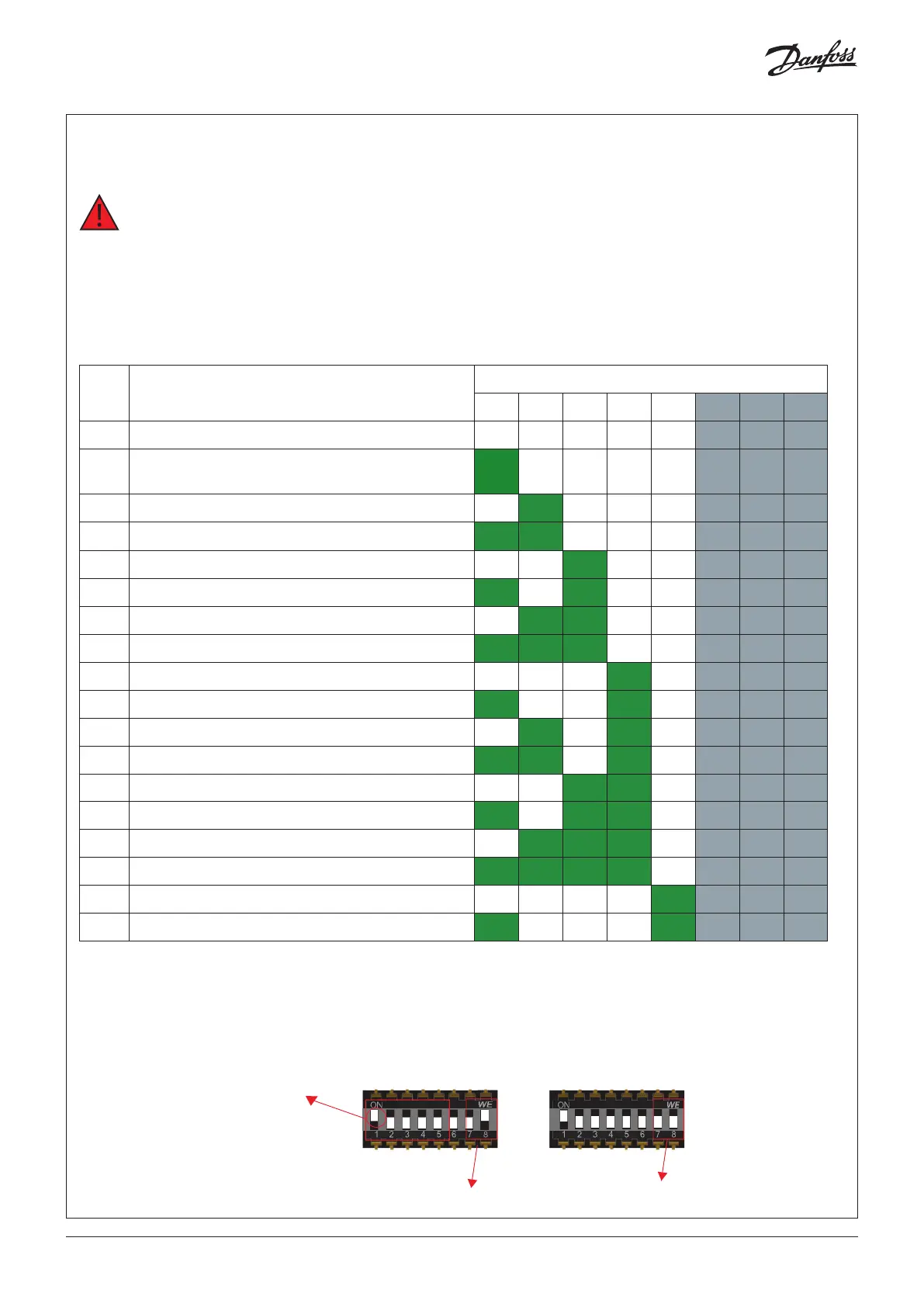

Congure Valve type by selecting DIP switch as shown in table below (green denotes ON).
Note:
When using Manifold Valves (ETS 500P ad ETS 800P).
Dip switch of driver 1 should be selected to ETS 250/ETS 400.
Dip switch of driver 2 should be selected to Manifold Valves (ETS 500P ad ETS 800P).
Valve
DIP Switch
1 2 3 4 5 6 7 8
A
No Valve (Default)
B
ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C, KVS 2C,
KVS 3C, KVS 5C
C
ETS 5M
D
ETS 6, UKV, UKV-J
E
ETS12.5, ETS 25, ETS 50, KVS15
F
ETS 100
G
ETS 250, ETS 400, KVS 42
H
Manifold Valves (ETS 500P, ETS 800P)
I
JKV
J
CCMT 2, CCMT4, CCMT8
K
CCMT 16
L
CCMT 24
M
CCMT30
N
CCMT 42
O
CCM 10, CCM 20, CCM 30
P
CCM 40
Q
CTR 20
R
CCMT 3L, CCMT 5L, CCMT 8L, CCMT 10L
ETS 12C with 0-5 V AI input
ETS 12C selected
ETS 12C with 0-10 V AI input
0-5 V AI input
0-10 V AI input
See example image of Dip Switch setting
Group
