T70 1 dimensions and identification

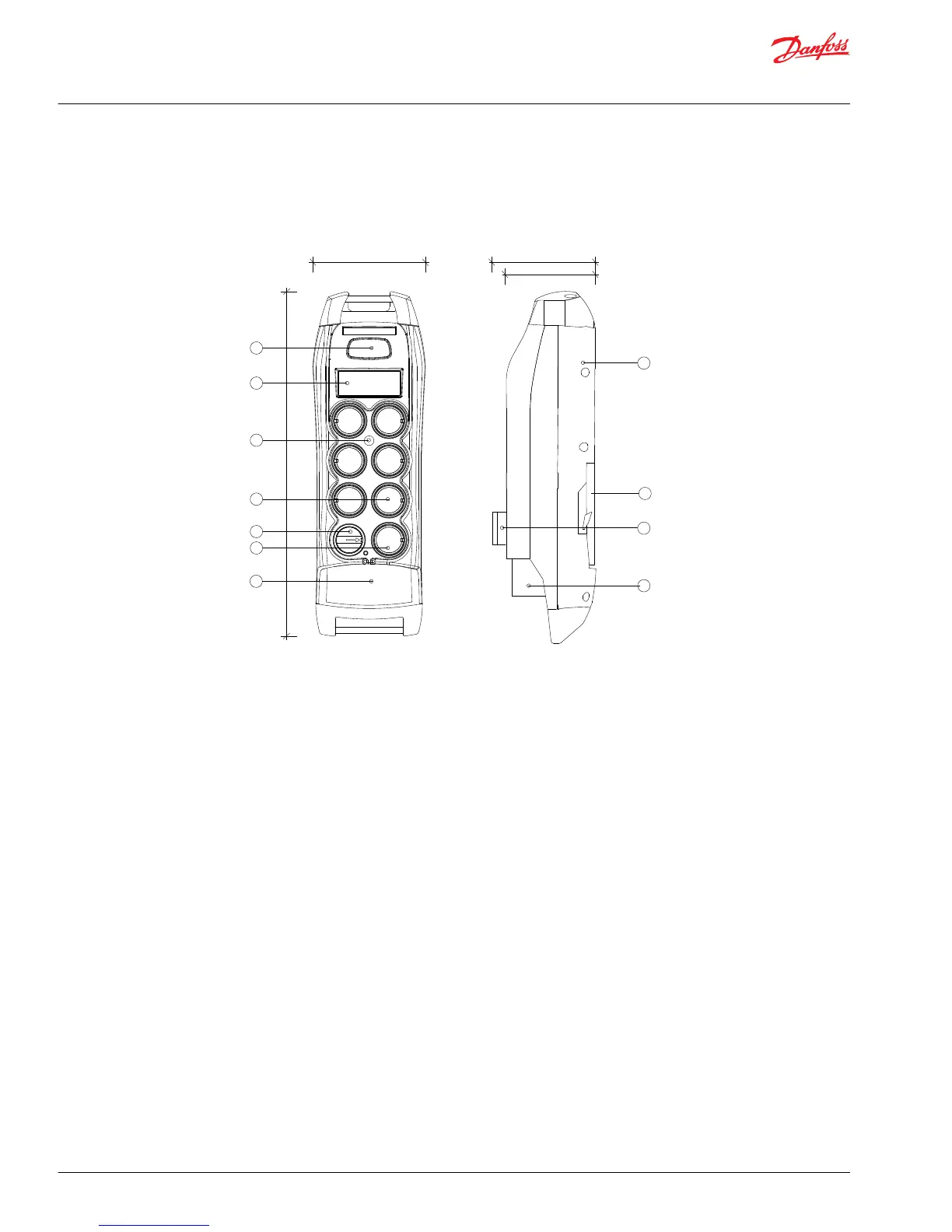

The illustration and list below describe dimensions, buttons, LEDs and labels of the T70 1 transmitter.
Dimensions in mm
64
56
70
220
6
5
7
1
2
3
4
5
6
8
9
1. Label for crane identification
Option: LCD Display
2. LED
3. Maneuver push button
4. Contact key
5. Start button
6. STOP button
7. Option: Range Limiter
8. External and extractable EP70 EEPROM module
9. Battery
User Manual
T70 1 Transmitter
Technical description
6 |
©
Danfoss | March 2019 BC300870271580en-000101
