Danfoss LCP User Manual

Voltage [V] Minimum waiting time (minutes)
4 7 15 20 30 40
200–240 1.1–3.7 kW
(1.50–5 hp)
–5.5–45 kW
(7.5–60 hp)
–––
380–480 1.1–7.5 kW
(1.50–10 hp)
– 11–90 kW
(15–121 hp)
– – 315–1000 kW
(450–1350 hp)
400 – – – 90–315 kW
(121–450 hp)
––
500 – – – 110–355 kW
(150–500 hp)
––
525 – – – 75–315 kW
(100–450 hp)
––
525–600 1.1–7.5 kW
(1.50–10 hp)
– 11–90 kW
(15–121 hp)
–––
690 – – – 90–315 kW
(100– 350 hp)
––
525–690 – 1.1–7.5 kW
(1.50–10 hp)
11–90 kW
(15–121 hp)
–400–1400 kW
(500–1550 hp)
450–1400 kW
(600–1550 hp)
–
Table 1.2 Discharge Time, VLT
®
HVAC Drive FC 102
Mechanical Installation
NOTICE
The guidelines in this instruction are applicable for a
frequency converter in a standard conguration without any
modications.

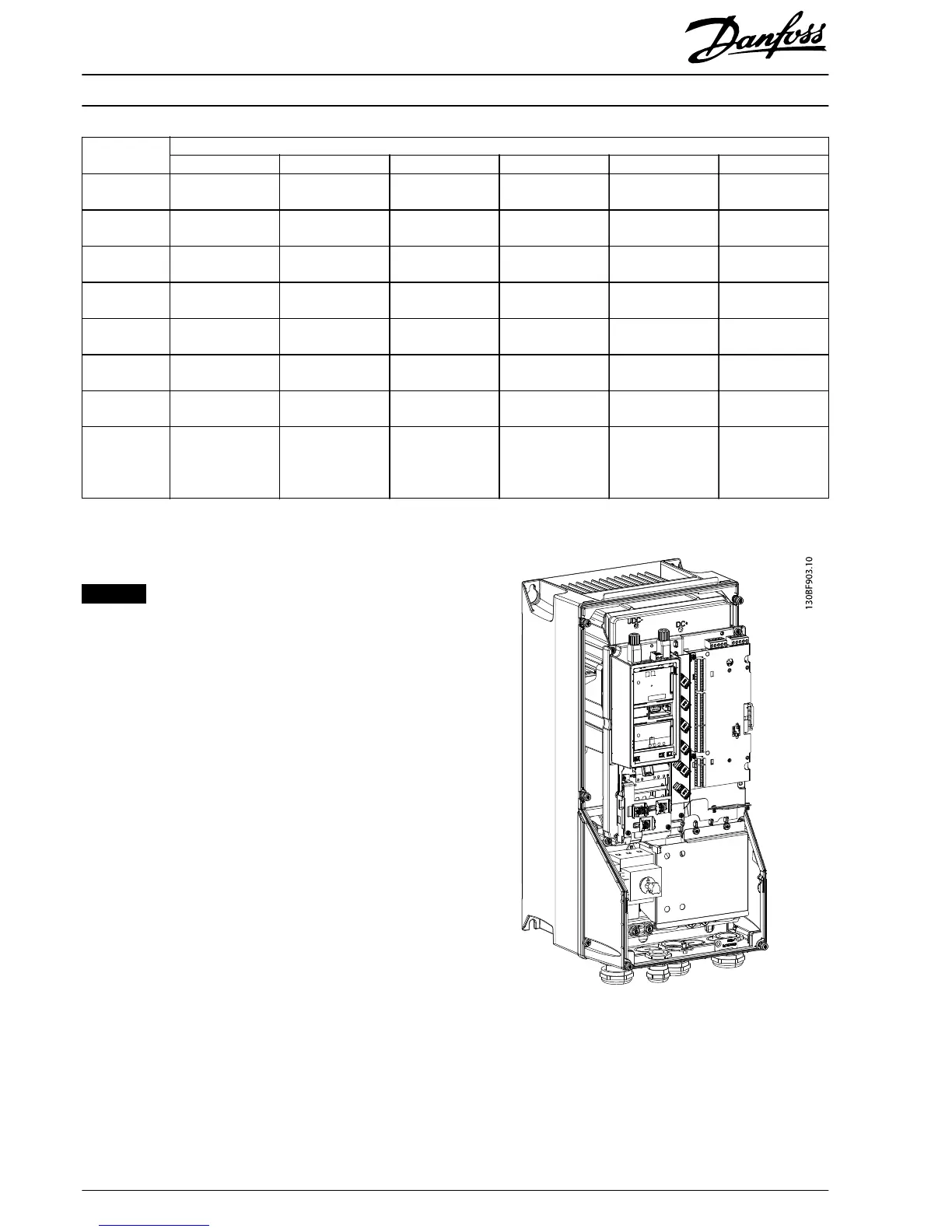

Installing the blind cover
1. Remove the front cover from the frequency converter
and then remove the LCP, see Illustration 1.1.
Illustration 1.1 Frequency Converter with the LCP Removed
2. Install the blind cover with the gasket and the M12
connector.
3. Install the front cover on the frequency converter, see
Illustration 1.2.
Installation Instructions
Remote Mounting of LCP
VLT
®
HVAC Drive FC 102
2 Danfoss A/S © 11/2017 All rights reserved. MI05A202
