Installation manual Danfoss Link™ HP kit
Danfoss HP kit for DHP-AQ
The installation kit q for the DHP-AQ series consists of a power supply, where a DIN rail is connected to
the DHP-AQ control (MAXI +60, MIDI or MINI). The DCM03 unit w is wall-mounted outside the control unit
so that it can communicate wirelessly with the Danfoss Link TM CC 3 panel. The Danfoss Link
™ CC e panel
communicates with the other Danfoss Link
™ components in the heating system.

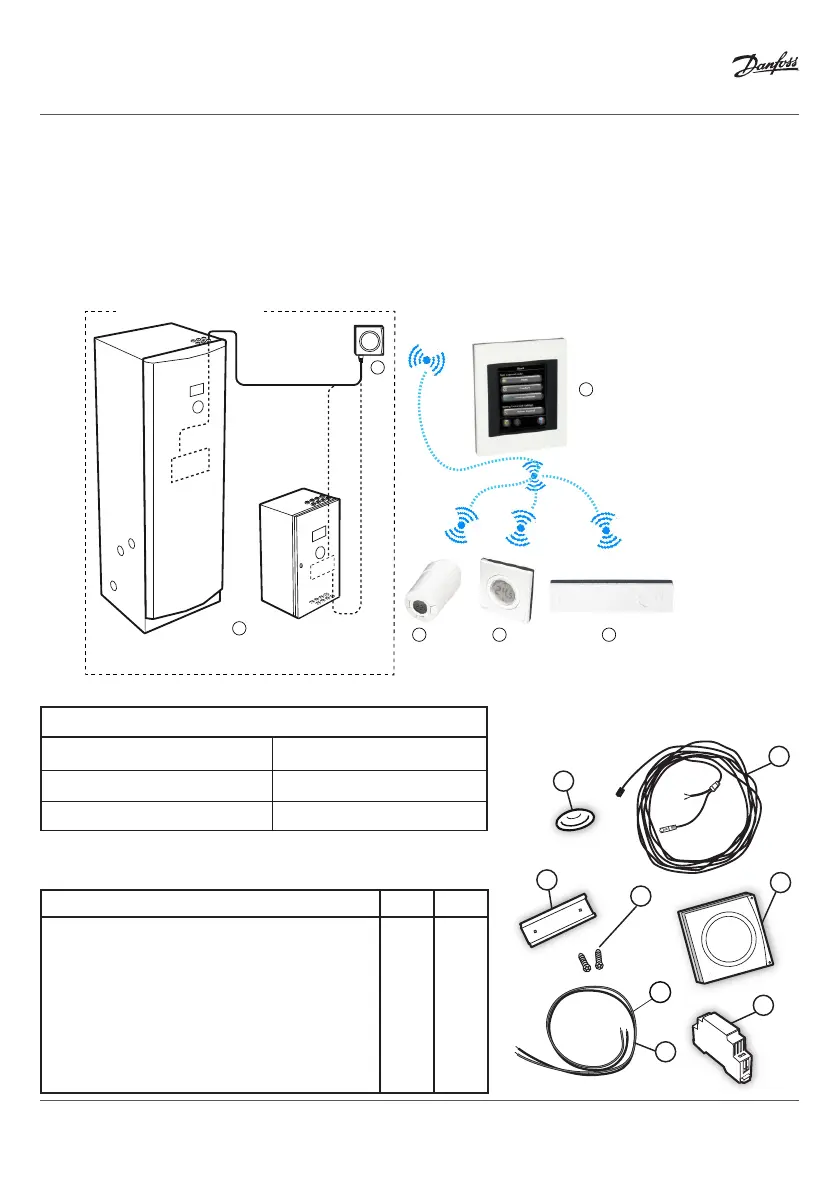

An example of a heating system with wireless units is shown in the gure below. The Danfoss Link
™
components are indicated with a dotted line.
1
2
3
4 5 6
Legend
q Heat pump
r living connect
®
w DCM03 t Room sensor (RS)
e Link Central Controller (CC) y Hydronic controller (HC)
Delivery check
Check the delivery contents of 086L2382:
Description Qty. Pos.
AC/DC transformer (power supply DCM03)
Cable 230VAC - ACDC switching supply
DCM03
Connection cable DHP-AQ-DCM03
DIN rail (for ACDC transformer assembly)
Membrane nipple
Screws
Installation manual
1
1
1
1
1
1
4
1
A
B
C
D
E
F
G
-
II
Danfoss HP kit for DHP-AQ
A
B
C
D
E
F
G
