10
MG.10.P2.22 VLT is a registered Danfoss trade mark

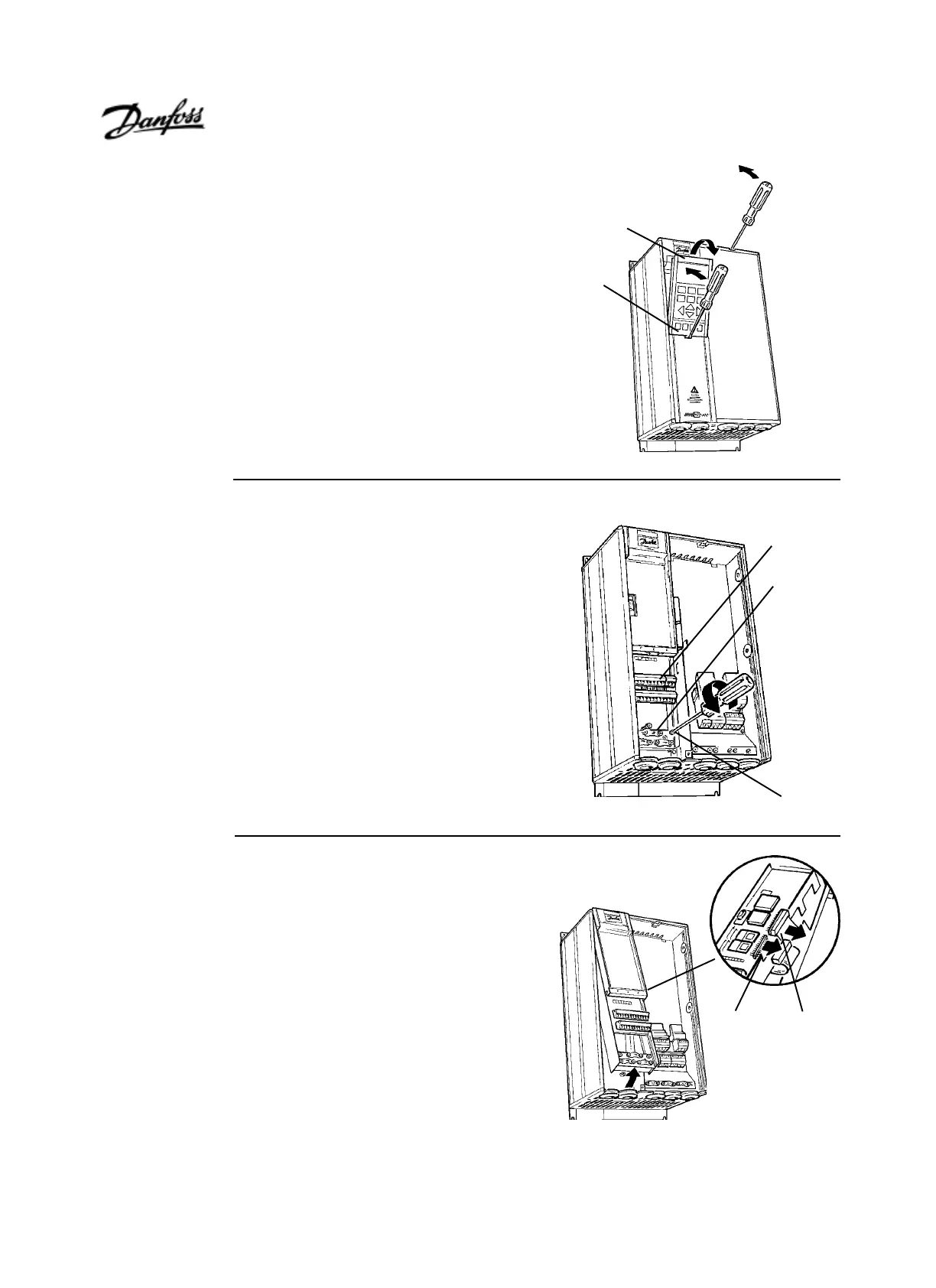

1. Access to
Control
Card
Cassette
IP20/NEMA 1 Drives:
Remove Local Control Panel (LCP) by
pulling out from top of display (A) by hand.
LCP connector on panel back will
disconnect.
Remove protective cover by gently prying
with a screw driver at notch (B) and lift
cover out of guide pin fittings.
IP54/NEMA 12 Drives:
Open front panel of drive by loosening
captive screws and swing open.
Disconnect Local Control Panel (LCP)
cable.
Remove control wiring by unplugging
connector terminals (A).
Remove grounding clamps (B) by removing
two screws holding each in place. Save
screws for reassembly.
Loosen two captive screws (C) securing
cassette to chassis.
2. Disconnect
Control
Card
Cassette
Lift control card cassette from bottom.
Unplug two ribbon cables (A) and (B) from
VLT control board.
Unhinge cassette at top to remove.
3. Remove
Cassette
and Ribbon
Cables
NOTE
Ribbon cables will need to be
reconnected to same connec-
tions from which removed.
(A)
(B)
(A)
(B)
(C)
(A) (B)
