8
MG.10.P2.22 VLT is a registered Danfoss trade mark
Address
(Hex)
SW1
2
0
SW2
2
1
SW3
2
2
SW4
2
3
SW5
2
4
SW6
2
5
SW7
2
6
SW8
2
7
TERM
Default
01 ON OFF OFF OFF OFF OFF OFF OFF ON
55 ON OFF ON OFF ON OFF ON OFF ON
AA OFF ON OFF ON OFF ON OFF ON ON
F7 ON ON ON OFF ON ON ON ON ON
Address Input Selection
The Modbus RTU option card interface to the
VLT 5000 and VLT 6000 Adjustable Frequency
Drive FC protocol requires drive parameter
values selected as shown. They are the default
settings for those parameters and probably
require no change to operate the drive using
Modbus. The Modbus RTU option card always
transmits to the drive in which it resides as
address one (001). See the VLT Operating
Instructions for details on selecting and
changing parameter values, if necessary.
VLT
Parameter
Settings
VLT 5000
Parameter 500, Address: 001
Parameter 501, Baud Rate: 9600 baud
VLT 6000
Parameter 500, Protocol: FC protocol
Parameter 501, Address: 001
Parameter 502, Baud Rate: 9600 baud

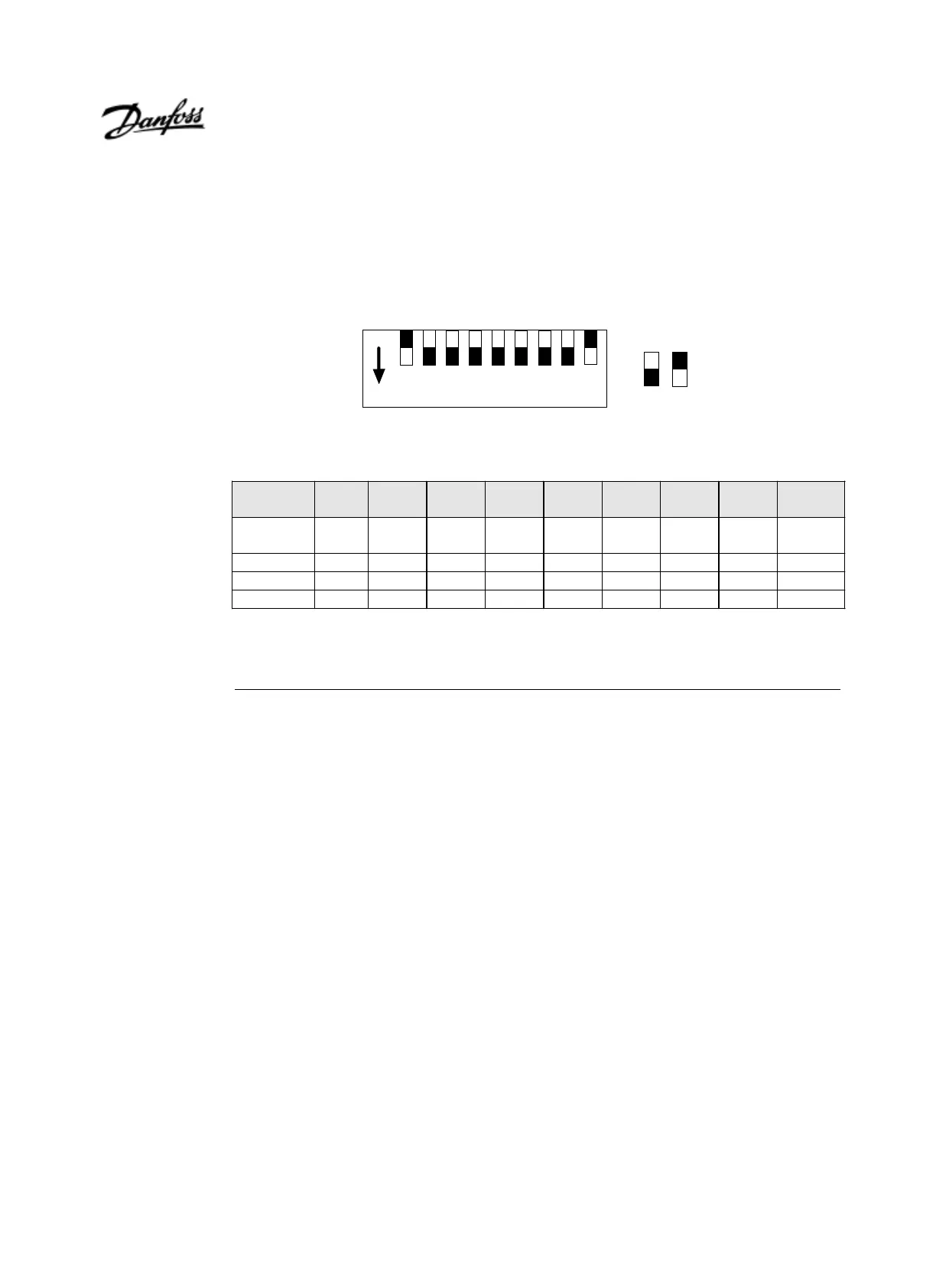

The Modbus RTU option card has an address
and termination 9-input dip switch. The Modbus
network address for the VLT is set by dip switch
positions on the switch. Pin 9 is an ON/OFF
switch for network termination. DIP switch
positions are read on power-up only, so position
changes will not be recognized until the next
power-up.
Modbus
RTU Option
Card
Network
Address
Settings
123456789
ON
ON
OFF
Set the Modbus address for the VLT in
accordance with the table below. The
default input setting is for ADDRESS 1 and
termination ON.
Address and Termination
