Service guide | Disassembling and assembling PAH 50-100
5
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017

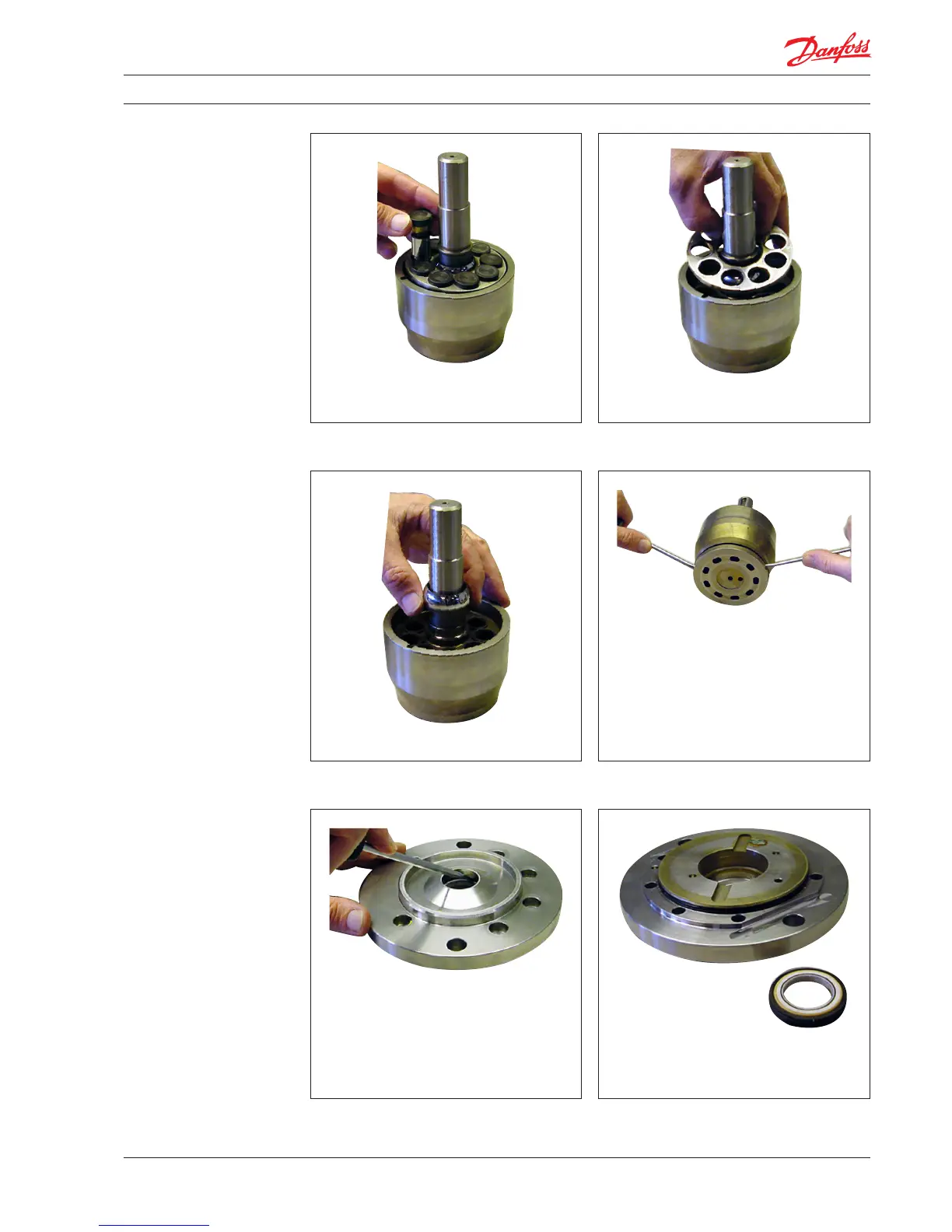

14. Remove the retaining plate.13 Remove the pistons.
15.Remove the retaining ball.
16. Remove the the thrust plate using two
screwdrivers.
18. The ceramic ring removed from the front
flange.17. Remove shaft sealing from front flange.
