Danfoss PAH Series Service Guide

Service guide | Disassembling and assembling PAH 50-100
12
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017

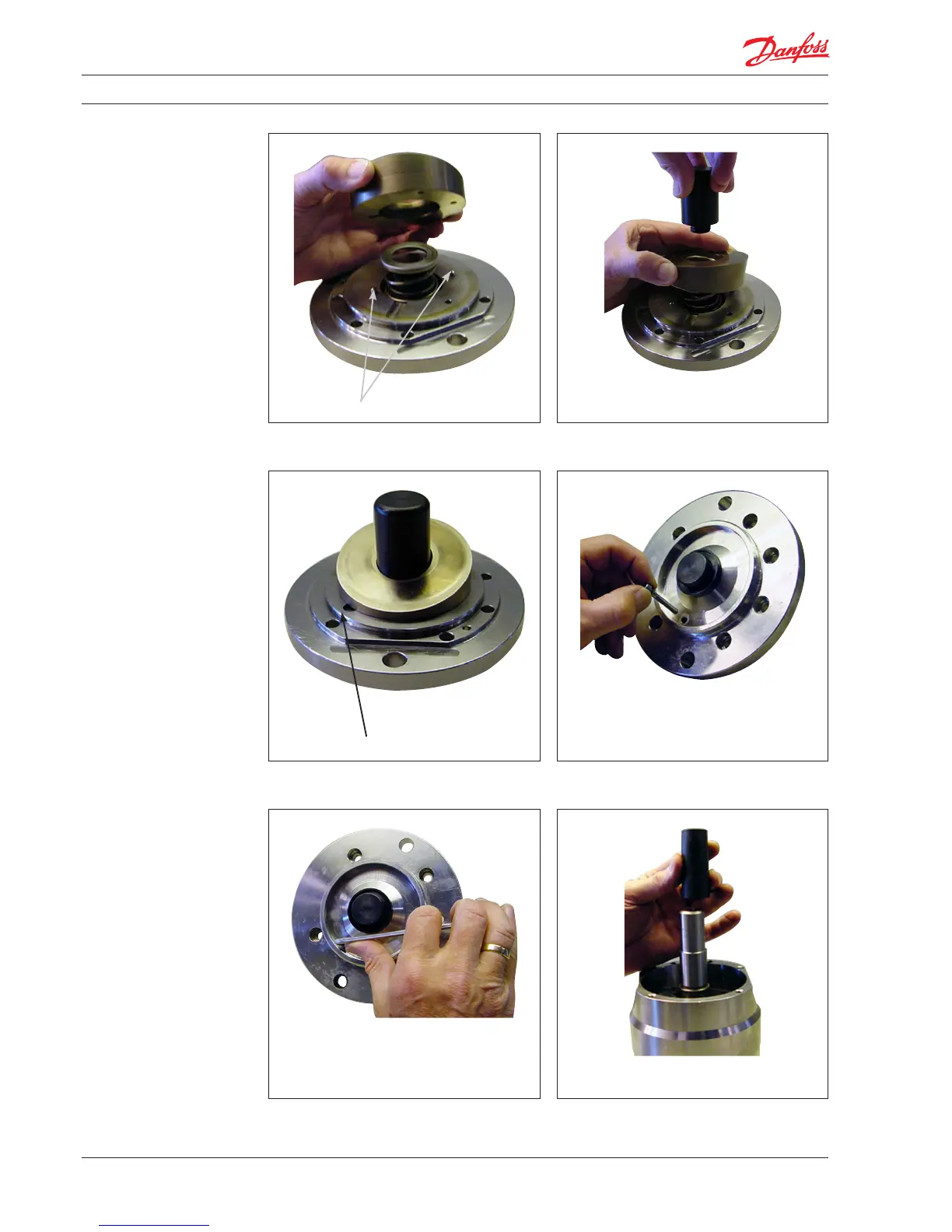

18. Press the swash plate against the flange
and screw the tools together.
20. Mount the washer and the screw in the
front flange to fix the swash plate.
22. Mount the tool over the shaft.
19. Mount the O-ring on the front flange.
21. Tighten the screw to a torque of 8 Nm and
remove the tool.
17. Mount the swash plate on the front flange
using the pins as guide.
