Danfoss PAH Series Service Guide

Service guide | Disassembling and assembling PAH 50-100
4
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017

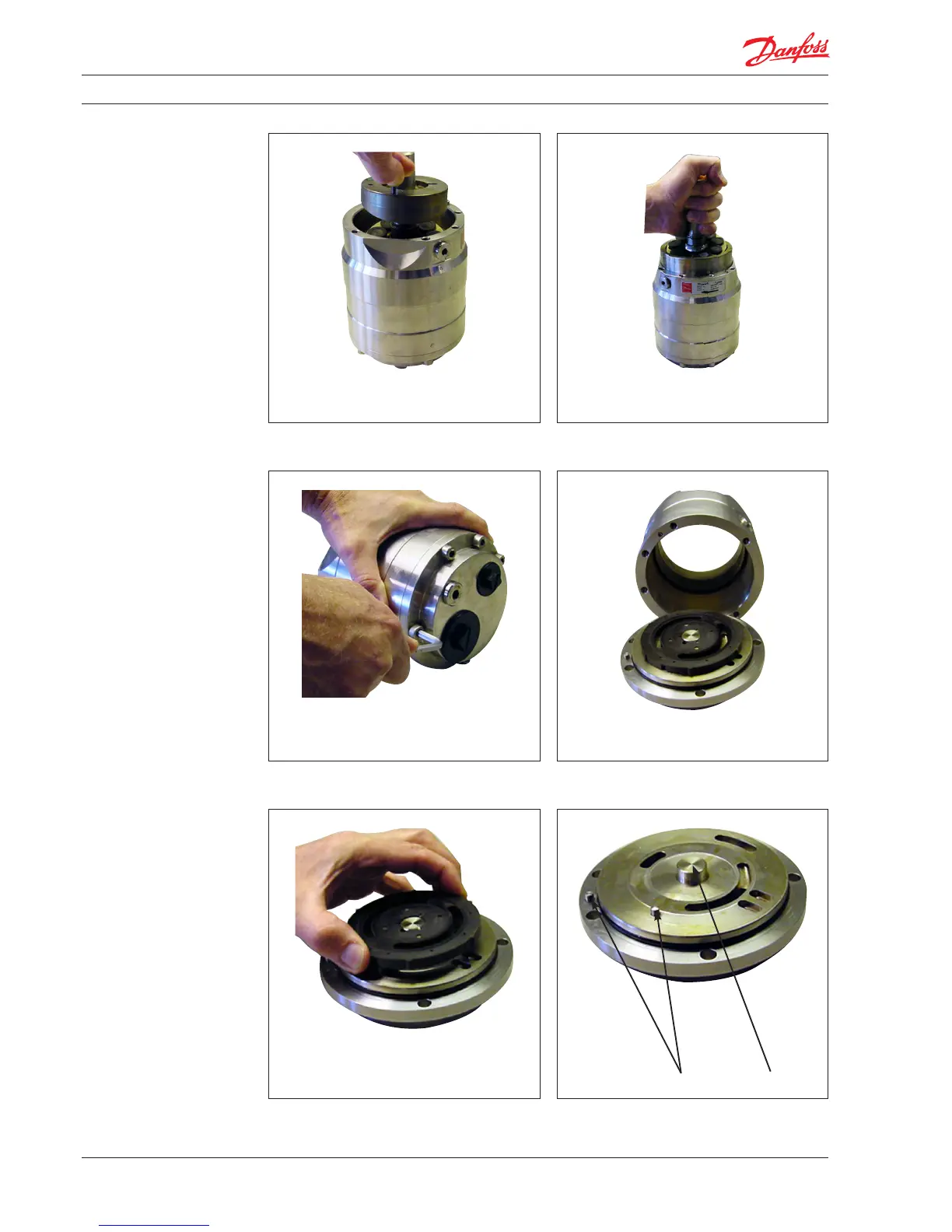

7. Remove the swash plate using the front
screw.
8. Remove the cylinder barrel from the
housing.
10. Separate the housing and the end cover.9. Unscrew the six screws in the end cover.
12. Remove the guide pins and the guide.11. Remove the valve plate from the end cover.
