Danfoss PAH Series Service Guide

Service guide | Disassembling and assembling PAH 50-100
6
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017
19. Wash all parts and replace all seals
(inclusive shaft seal).
21. If the pump has failed, the reason for the
failure must be found and fixed before the
repaired pump is re-installed.
20. Inspect all parts carefully (see ”Inspection”)
and replace any worn parts.

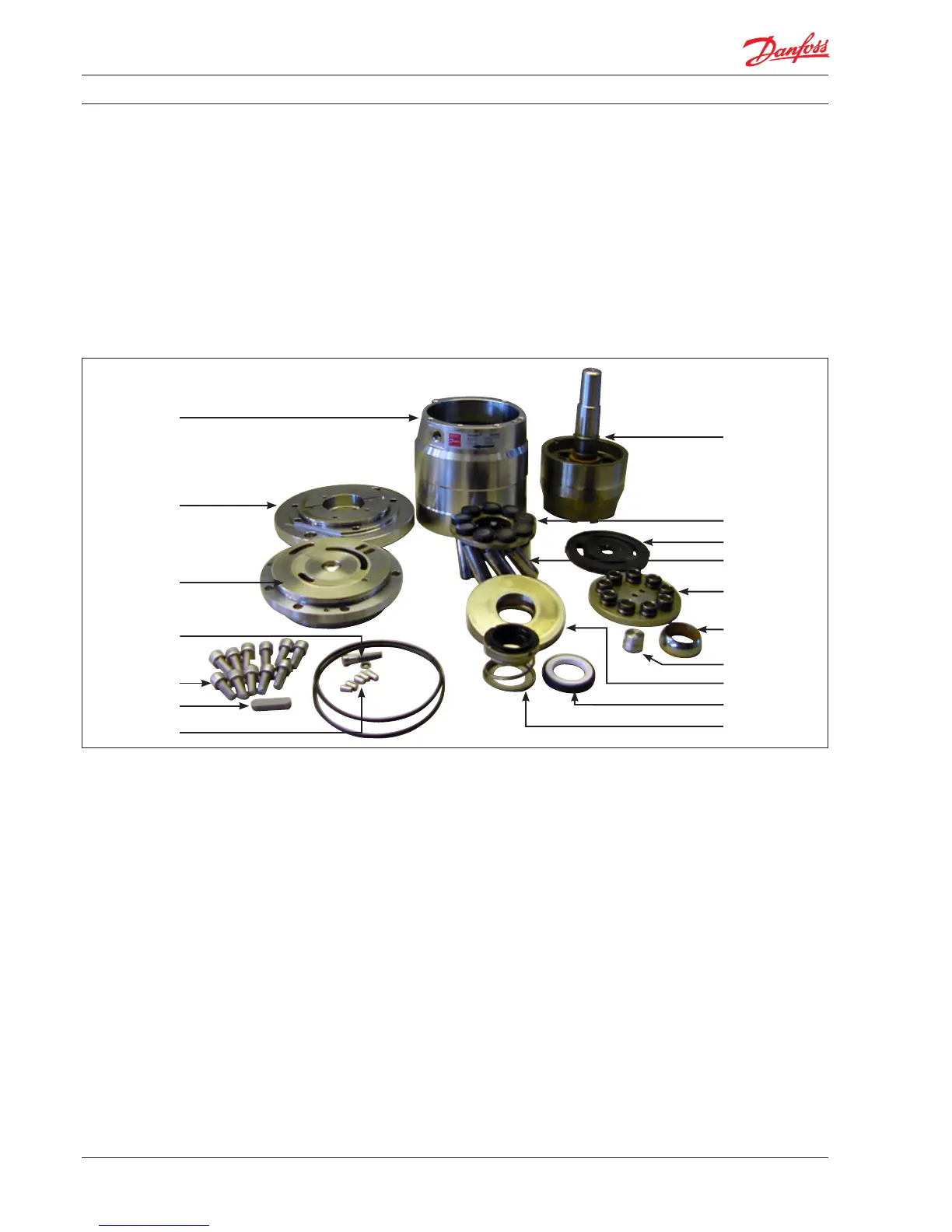

Front Flange
Housing with
bearing
Port flange
Screws for flanges
Washer and
screw (for fixing
swash plate)
Key
Five guide pins
Swash plate
Cylinder barrel
Retainer ball
Retaining guide
Thrust plate
with sealings
Port plate
Pistons
Ceramic ring
Shaft seal
Retainer plate
