5.1 Important dimensions
Physical dimensions and connections of the
pump unit are described in appendix 1, Data
sheet.
5.2 Cleanliness
It is very important that the tubes and pipes are
completely clean: no dirt, chips or burrs are
allowed.
Flush all piping before connecting the high-
pressure pump to ensure the system is clean.
Internal surfaces of the piping must not be
corroded. If dirt or rust is not removed, the pump
and the valves can be damaged. In worst case
the pump can be damaged beyond repair!
5.3 Fluid temperature
Before start-up, the uid and pump housing
temperature must be within the specied
temperature range listed in appendix 1, Data
sheet.
5.4 Electrical data
Check voltage, current frequency and rated
power on the electric motor and VFD settings on
the name plate placed on both the motor and
the VFD.
5.5 Local regulations
Commissioning must always be done in
accordance with valid regulations and local
standards.
5. Installation and
commissioning

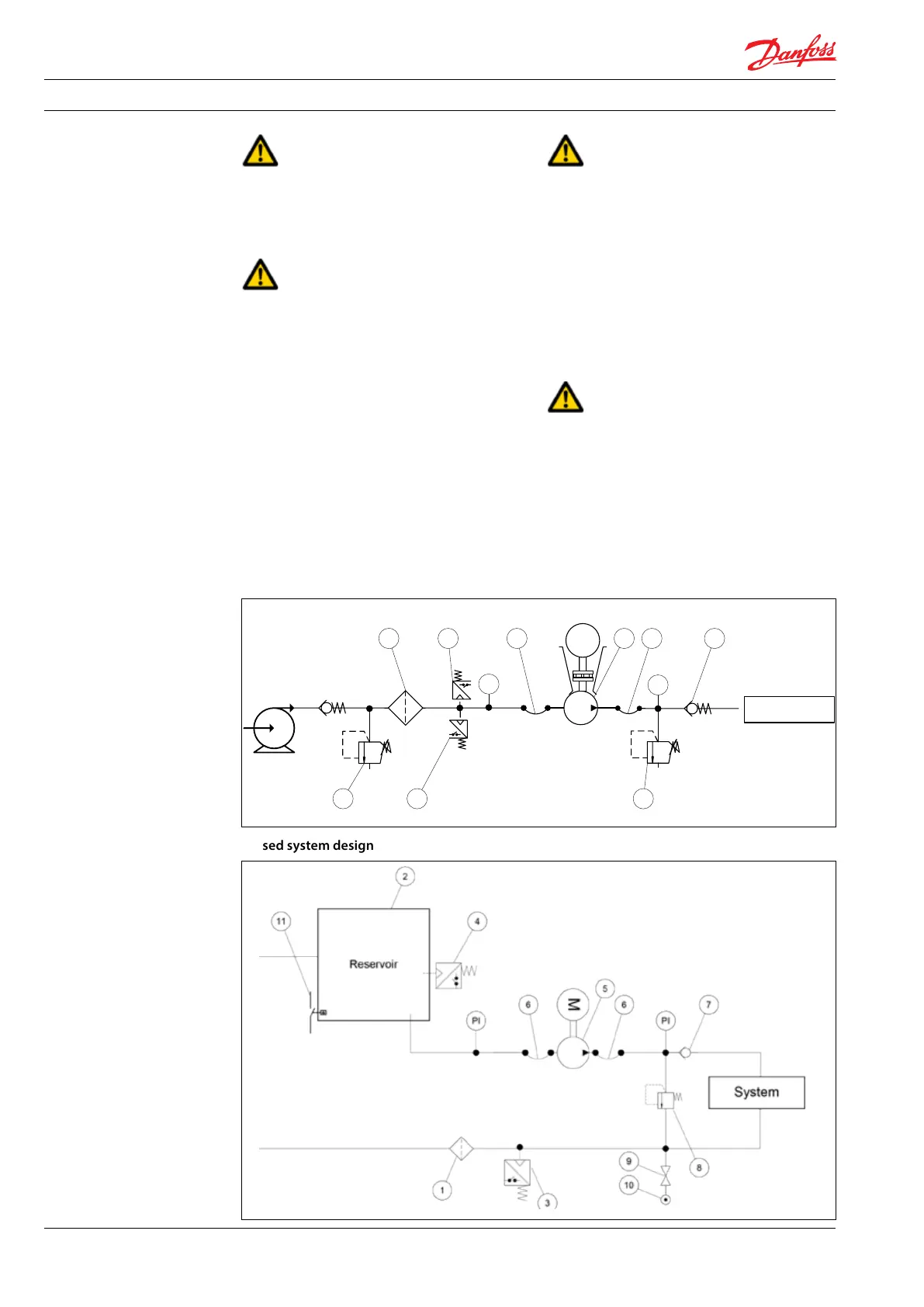

Open system design
Closed system design
M
2
SYSTEM
1 4 5 5 6
73
PI
PI
8
