DI general note
Til DI udførelserne er det nødvendigt at have 2 U
DC
-tilslutninger (U
DC
og U
DC2
):
• U
DC
forsyner elektronikken og
• U
DC2
forsyner magnetventilerne
De to jordforbundne stikben er internt forbundet.
Der kan med fordel anvendes to separate strømforsyninger (jvf. tekniske informationer for PVE serie 4)
On DI versions two U
DC
connections (U
DC
and U
DC2
) are necessary.
• U
DC
will supply the electronics and
• U
DC2
will supply the solenoid valves
The two ground pins are internally connected.
With advantages two separate power supplies can be used, see also Technical information for PVE series 4.
Die DI Ausführungen fordern zwei U
DC
-Anschlüsse (U
DC
und U
DC2
):
• U
DC
versorgt die Elektronik und
• U
DC2
versorgt die Magnetventile
De zwei Erdungsstecker sind intern verbunden.
Es kann mit Vorteil zwei separate Stromversorgungen verwendet werden (vgl. technische Informationen
für PVE Serie 4)
Pour les versions DI deux raccordements U
DC
(U
DC
et U
DC2
) sont nécessaires.
• U
DC
alimente l’électronique
• U
DC2
alimente les électrodistributeurs
Les deux bornes masse sont reliées intéreurement.
L’emploi de deux sources d’alimentation séparées a des avantages, voir Information Technique pour PVE
série 4

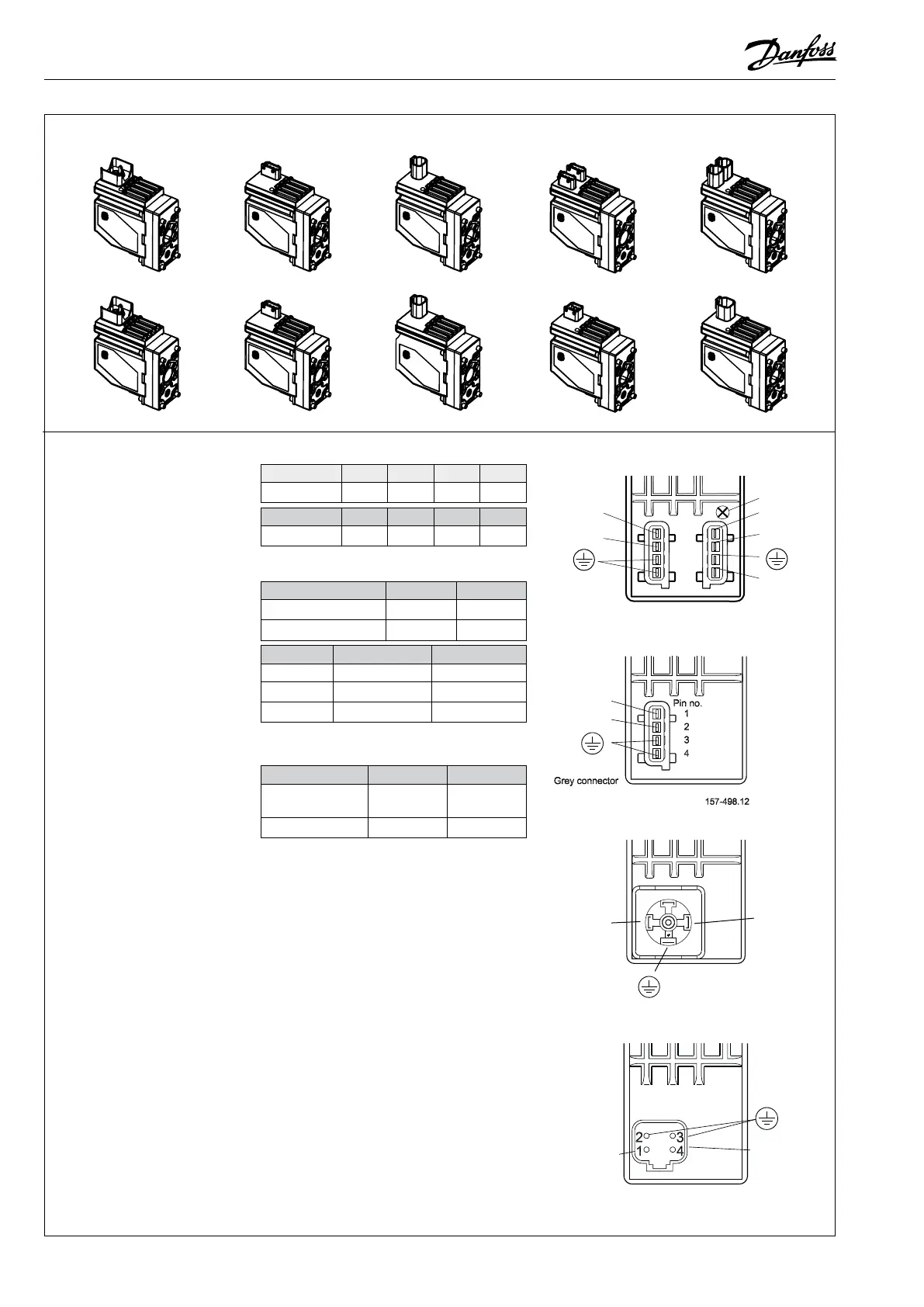

Version ON/OFF Connection PVEO with direction indication (DI)
Connector 1 A U
DC
B U
DC
Gnd Gnd
AMP (grey)
p 1 p 2 p 3 p 4
Connector 2 DI-B DI-A Gnd U
DC 2
AMP (black)
p 1 p 2 p 3 p 4
Connection PVEO standard
Connector A B
AMP/Hirschmann/DIN
pin 1 pin 2
Deutsch
pin 1 pin 4
Function A (pin 1) B (pin 2)
Neutral 0 0
Q: P → A
U
DC
0
Q: P → B
0 U
DC
Control all PVEO
Connector A B
AMP
Hirschmann/DIN
pin 1 pin 2
Deutsch
pin 1 pin 4
y Ground pins are internally
connected.
y Pin 3 is not connected on
Hirschmann/DIN version of
PVEO.
y U
DC2
supplies electronics for
feedback signal on PVEO-DI.
AMP version of PVEO/PVEO–R
AMP version of PVEO–DI
Hirschmann/DIN version of PVEO / PVEO–R
Deutsch version of PVEO /PVEO-R
A U
DC
B U
DC
PVEO/PVEO-R
157-502.11
DC
DC
U
U
3
1
2
A U
DC
B U
DC
A U
DC
B U
DC
P301 104
Black connector
Grey connector
DI-B
DI-A
PVEO-DI
1
2
4
3
Pin no.
LED
U
DC
U
U
DC2
DC
A U
DC
B U
DC
All PVE variants. PVEO and PVEO-R are without LVDT
