7Danfoss T-420 Crimp machine operator´s manual December 2022
Operating instructions

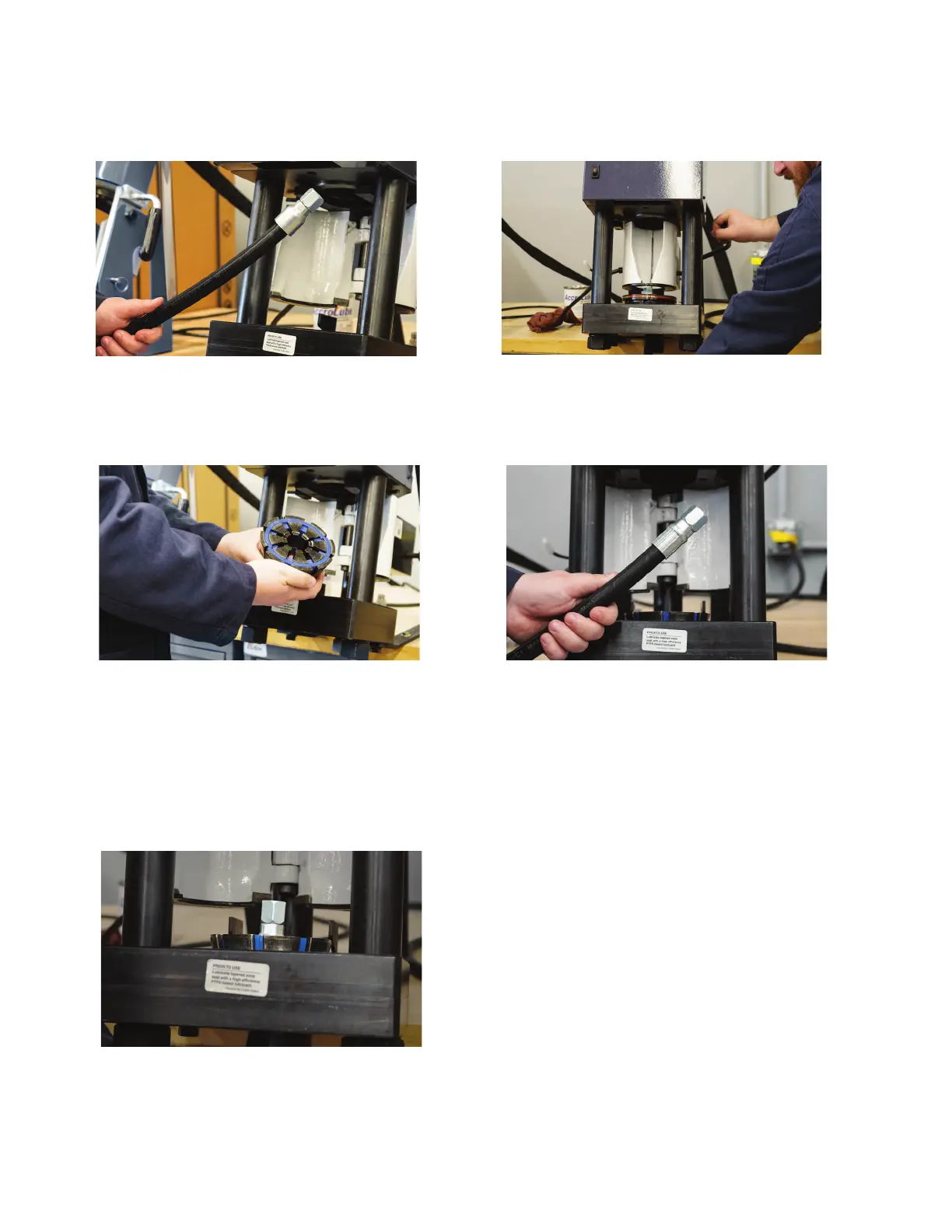

1. Measure the appropriate insertion depth and scribe a
T-marking on the hose. Insert the hose into the tting.
The socket should cover a portion of the depth marking
or be fully bottomed out into the tting.
3. Insert hose assembly from bottom between collet
halves. Our optimized tooling provides built in tting
locators, ensuring correct alignment for optimal crimp
position.
5. Release activating lever. Pusher will automatically retract
and pusher halves will open. Remove factory quality
crimped hose assembly and visually inspect.
6. To ensure a proper crimp has been completed, measure
the nominal crimp diameter as shown in gure on page 8
2. To establish the crimp settings and tooling needed,
access the PowerSource Crimp Spec Tool from the Tools
Menu on PowerSource.
Select proper size collet for hose type and size being
crimped. Apply grease to outside of each collet segment.
Insert collet in cavity of base plate. Place spacer ring on
top of collet if called for in the crimp spec.
4. Pull activating lever down. Pusher halves will close.
Continue to pull activating lever down (pump will activate)
until pusher contacts the base plate. The crimp is complete.
