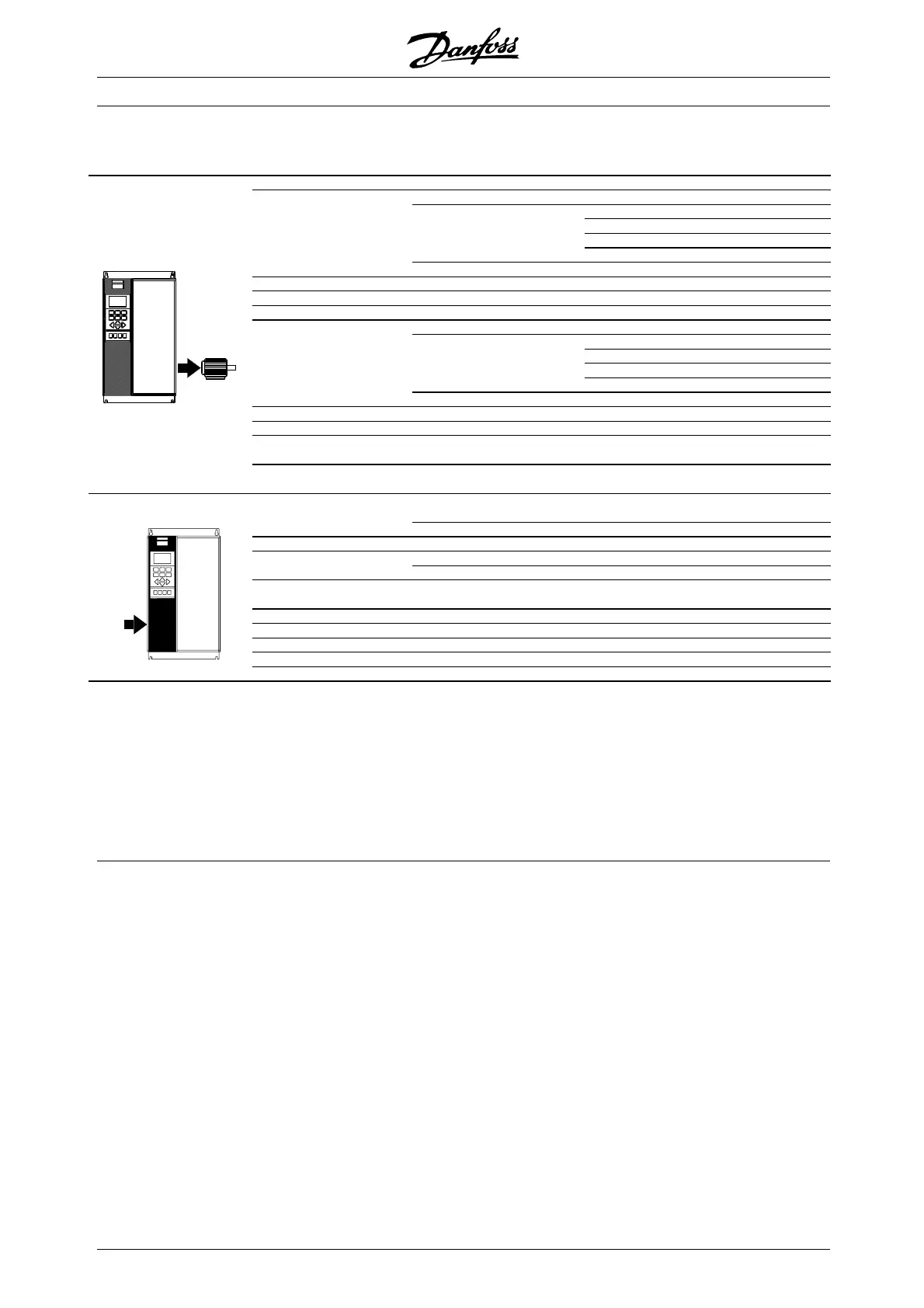

Danfoss VLT 5000 Crane Series Operating Instructions

VLT
®
5000 Series
Compact, Mains supply 3 x 525 - 600 V
According to international requirements VLT type 5032 5042 5052 5062
Normal overload torque (110 %):
Output current I
VLT,N
[A] (550 V) 43 54 65 81
I
VLT, MAX
(60 s) [A] (550 V) 47 59 72 89
I
VLT,N
[A] (575 V) 41 52 62 77
I
VLT, MAX
(60 s) [A] (575 V) 45 57 68 85
Output S
VLT,N
[kVA] (550 V) 41 51 62 77
S
VLT,N
[kVA] (575 V) 41 52 62 77
Typical shaft output P
VLT,N
[kW] 30 37 45 55
Typical shaft output P
VLT,N
[HP] 40 50 60 75
High overload torque (160 %):
Output current I
VLT,N
[A] (550 V) 34 43 54 65
I
VLT, MAX
(60 s) [A] (550 V) 54 69 86 104
I
VLT,N
[A] (575 V) 32 41 52 62
I
VLT, MAX
(60 s) [A] (575 V) 51 66 83 99
Output S
VLT,N
[kVA] (550 V) 32 41 51 62
S
VLT,N
[kVA] (575 V) 32 41 52 62
Typical shaft output P
VLT,N
[kW] 22 30 37 45
Typical shaft output P
VLT,N
[HP] 30 40 50 60
Max. cable cross-section to motor, 35 50 50 50
brake and loadsharing [mm
2
]/[AWG]
2)5)
21/01/01/0
Min. cable cross-section to motor, 10 16 16 16
brake and loadsharing [mm
2
]/[AWG]
4)
8666
Normal overload torque (110 %):
Rated input current I
L,N
[A] (550 V) 42 53 63 79
I
L,N
[A] (600 V) 38 49 58 72
High overload torque (160 %):
Rated input current I
L,N
[A] (550 V) 33 42 53 63
I
L,N
[A] (600 V) 30 38 49 58
Max. cable cross-section 35 50 50 50
power[mm
2
]/[AWG]
2) 5)
21/01/01/0
Max. pre-fuses [-]/UL
1)
[A] 60 75 90 100
Efficiency
3)
0.96 0.96 0.96 0.96
Weight IP 20 EB [kg] 30 48 48 48
Power loss at max. load [W] 1074 1362 1624 2016
Enclosure IP 20 / Nema 1
1. For type of fuse see section Fuses
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
4. Min. cable cross-section is the smallest cable cross-section allowed to be fitted on the terminals to comply
with IP 20. Always comply with national and local regulations on min. cable cross-section.
5. Aluminium cables with cross-section above 35 mm
2
must be connected by use of a AI-Cu connector.
MG.51.A9.02 - VLT is a registered Danfoss trademark
