VLT
®
6000 HVAC
Line 4 says that the frequency converter is in Auto mode
with remote reference, and that the motor is running.

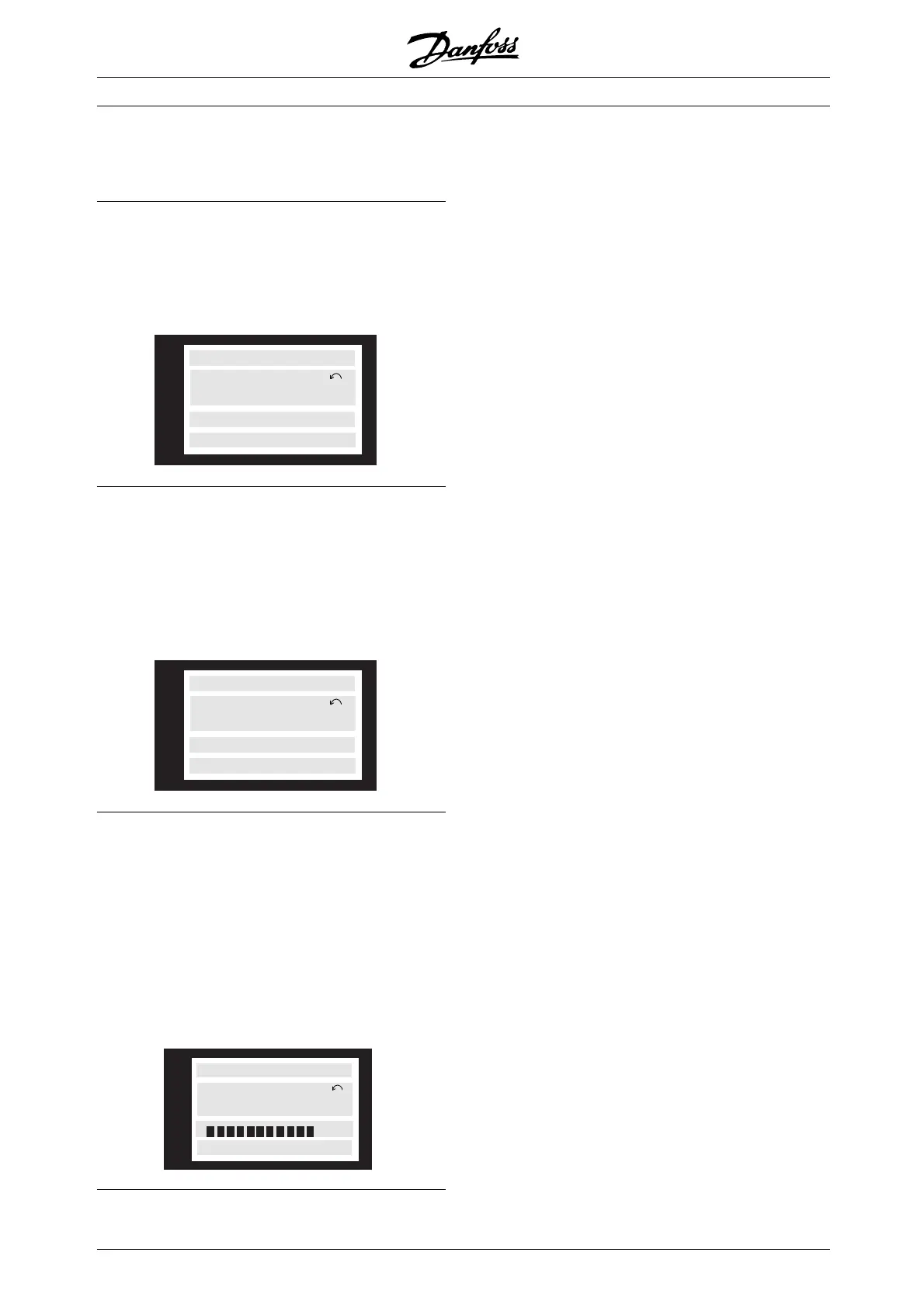

■ Display mode II:
This display mode makes it possible to have three
operating data values displayed at the same time in
line 1. The operating data values are determined
in parameters 007-010 Display readout.
175ZA685.10
50.0Hz
SETUP
1
AUTO REMOTE RUNNING
100% 7.8A 5.9kW
■ Display mode III:
This display mode is active as long as the [DISPLAY
MODE] key is kept depressed. In the first line,
operating data names and units of operating data
are displayed. In the second line, operating data 2
remains unchanged. When the key is released, the
different operating data values are shown.
175ZA695.10
50.0Hz
SETUP
1
AUTO REMOTE RUNNING
REF% CURR.A.POW.,KW
■ Display mode IV:
This display mode is only active in connection with
local reference, see also Reference handling.Inthis
display mode, the reference is determined via the
[+/-] keys and control is carried out by means of the
keys underneath the indicator lamps. The first line
indicates the required reference. The third line gives
the relative value of the present output frequency at
any given time in relation to the maximum frequency.
The display is in the form of a bar graph.
176FA156.10
40.0Hz
HAND LOCAL RUNNING
USE +/- 40Hz
SETUP
1
0
----60
MG.60.C7.02 - VLT is a registered Danfoss trademark
20
