Danfoss VLT 6000 Unpacking And Installation Instructions

3
General
For an option enclosure containing a bypass stored prior to
installation, ensure a storage temperature range between
13° F (–25° C) to 149° F (65° C).
Dimensions for the 1200 option enclosure, 600 option
enclosure and their associated shipping containers in inches
and millimeters are shown in the table below.
To lessen the possibility of damage, it is recommended that
the option enclosure be located as close to the final
installation site as possible prior to removing the shipping
crate.
thgieHhtdiWhtpeD
mm0021
sissahC
sehcni1.97
)mm0102(
sehcni2.74
)mm0021(
sehcni6.32
)mm006(
mm0021:etarC
.ni5.19
)mm4232(
ni0.35
)mm6431(
.ni0.03
)mm267(
sissahCmm006
sehcni1.97
)mm0102(
sehcni6.32
)mm006(
sehcni6.32
)mm006(
mm006:etarC
.ni5.19
)mm4232(
ni0.35
)mm6431(
.ni0.03
)mm267(
Option Enclosure Base Installation
A mounting base is provided to secure the option enclosure
into position (see figure 1).
1. Assemble mounting base in accordance with
manufacturer's instructions.
2. Do not assemble side access panel of mounting base,
on appropriate side, to allow for electrical cable access
for connection to drive.
3. Ensure that mounting base is level.

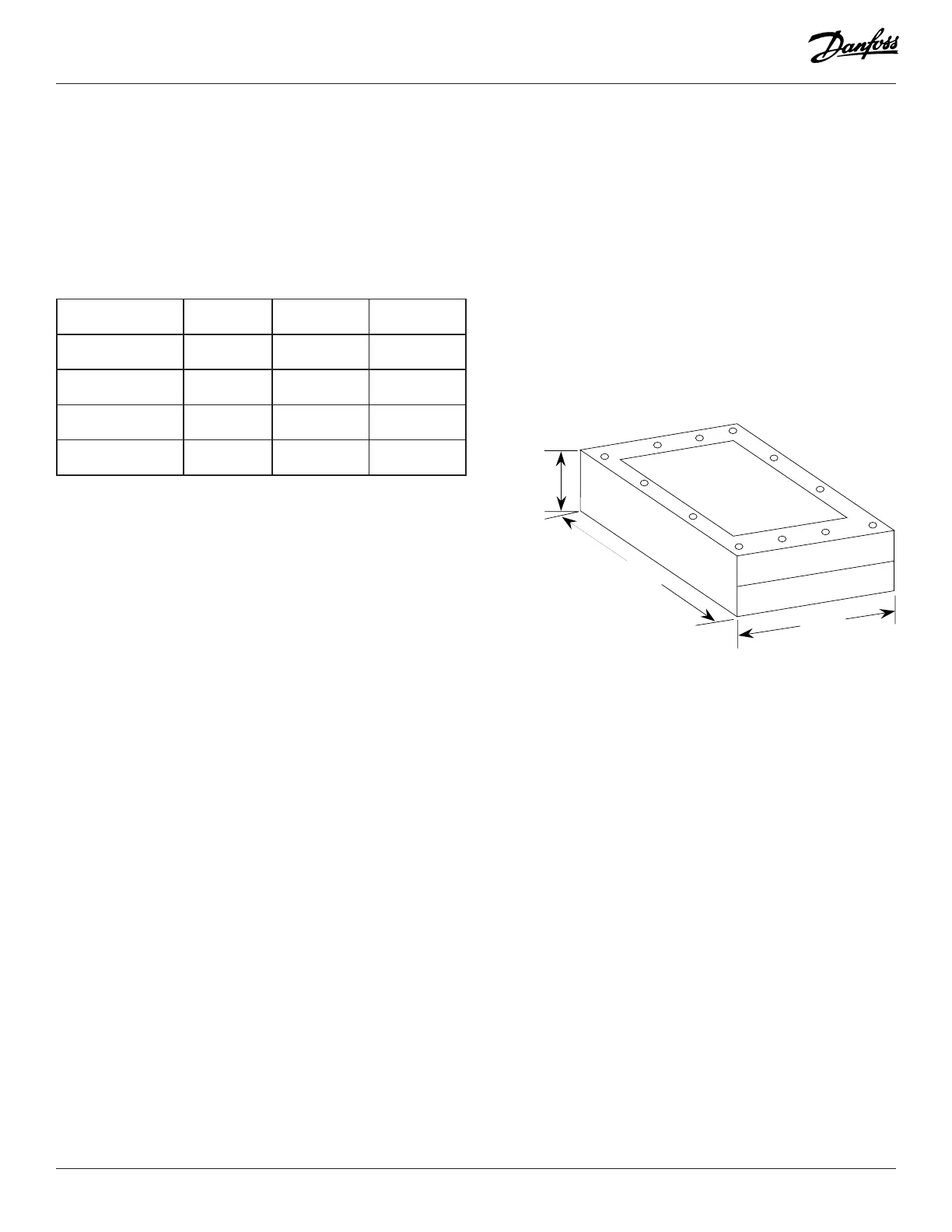

Figure 1. 1200 Chassis Mounting Base
23.6
(600)
47.2
(1200)
7.8
(200)

Danfoss VLT 6000 Specifications

General

Category	Controller
Cooling method	Forced air cooling
Enclosure	IP20
Output frequency range	0-500Hz
Protection features	Overvoltage, Undervoltage, Short circuit
Communication options	Profibus
Ambient temperature range	-10°C to +40°C
