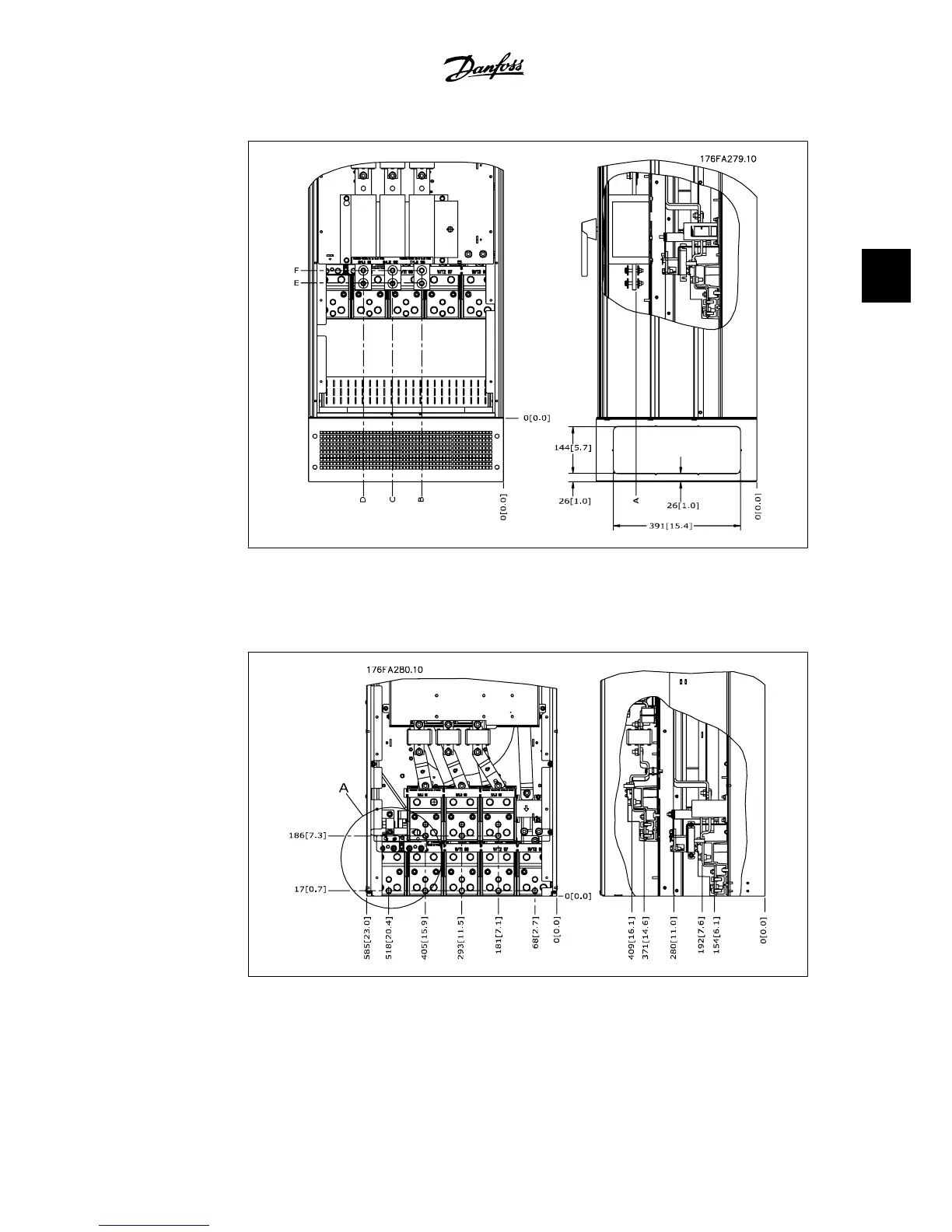

3.12: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection position of disconnect
switch
Terminal locations - E2 enclosures
Give thought to the following terminal positions when designing the cable access.
3.13: IP 00 enclosure power connection positions
VLT
®
Automation Drive FC 300
Instruction Manual High Power
3. How to Install
MG.33.U1.22 - VLT
®
