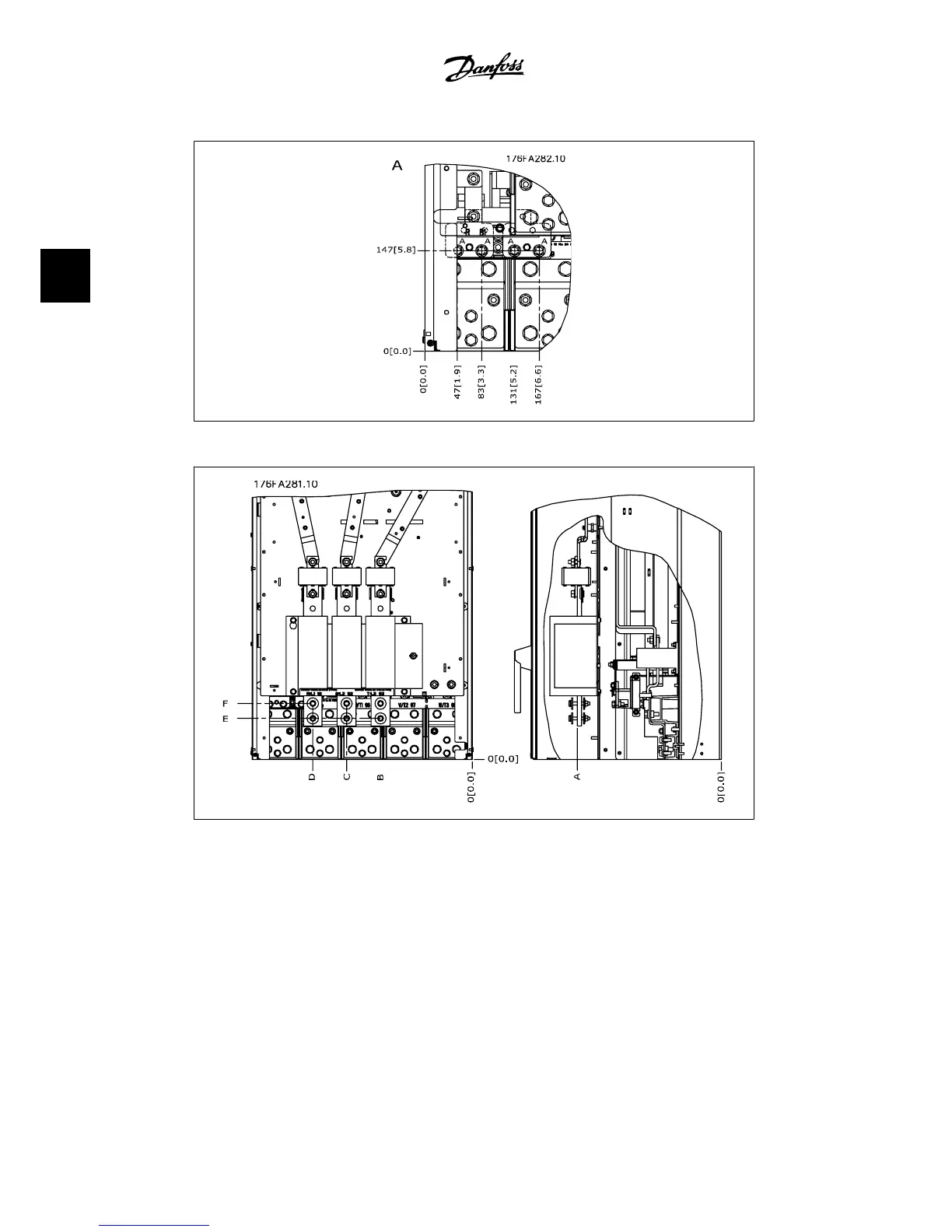

3.14: IP 00 enclosure power connection positions
3.15: IP 00 enclosure power connections positions of disconnect switch
Note that the power cables are heavy and difficult to bend. Give thought to the optimum position
of the adjustable frequency drive for ensuring easy installation of the cables.
Each terminal allows for the use of up to 4 cables with cable lugs or the use of standard box lug.
Ground is connected to relevant termination point in the drive.
3. How to Install
VLT
®
Automation Drive FC 300
Instruction Manual High Power
28
MG.33.U1.22 - VLT
®
is a registered Danfoss trademark.
