Terminal locations - E1 enclosures
Give thought to the following terminal positions when designing the cable access.

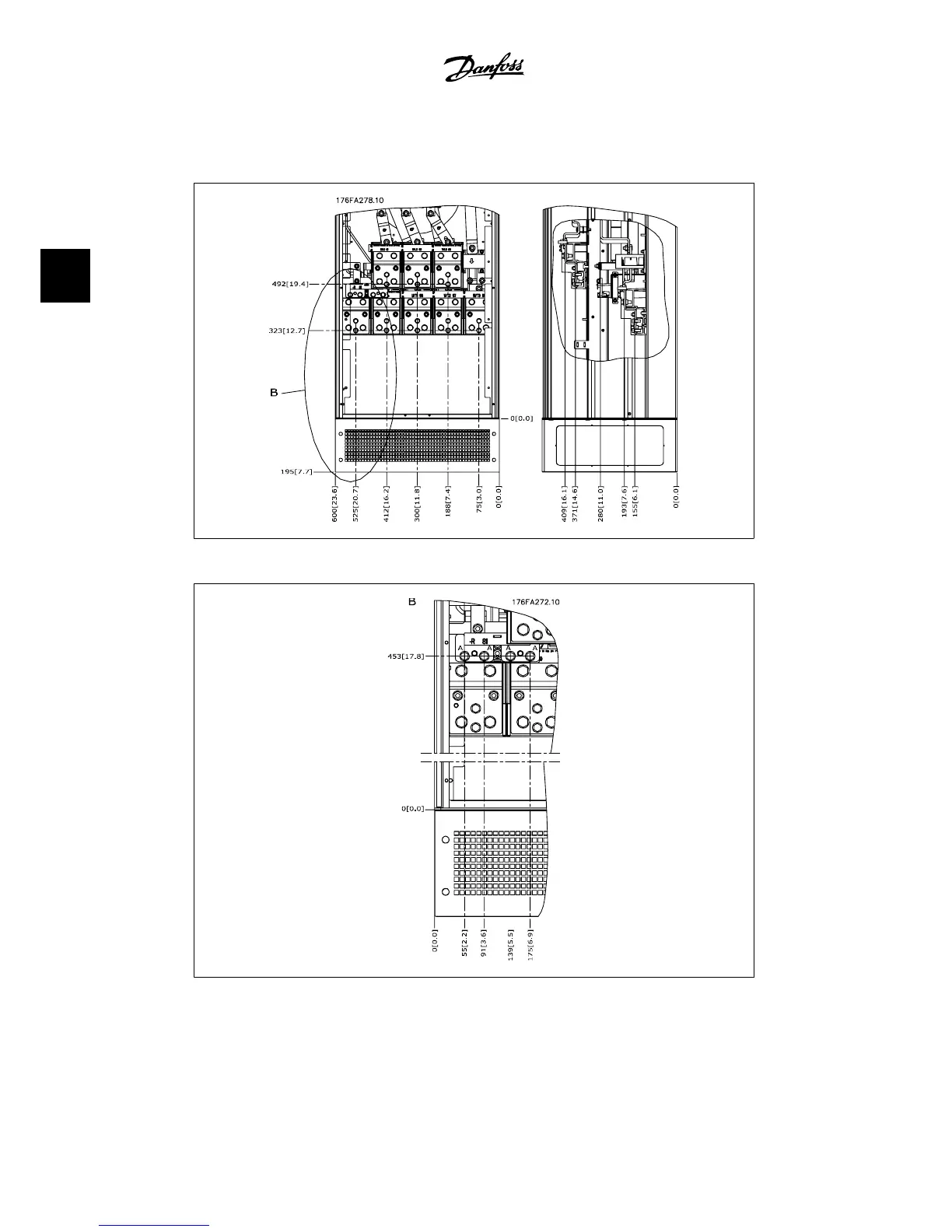

3.10: IP 21 (NEMA Type 1) and IP 54 (NEMA Type 12) enclosure power connection positions
3.11: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection positions (detail B)
