130BX334.11

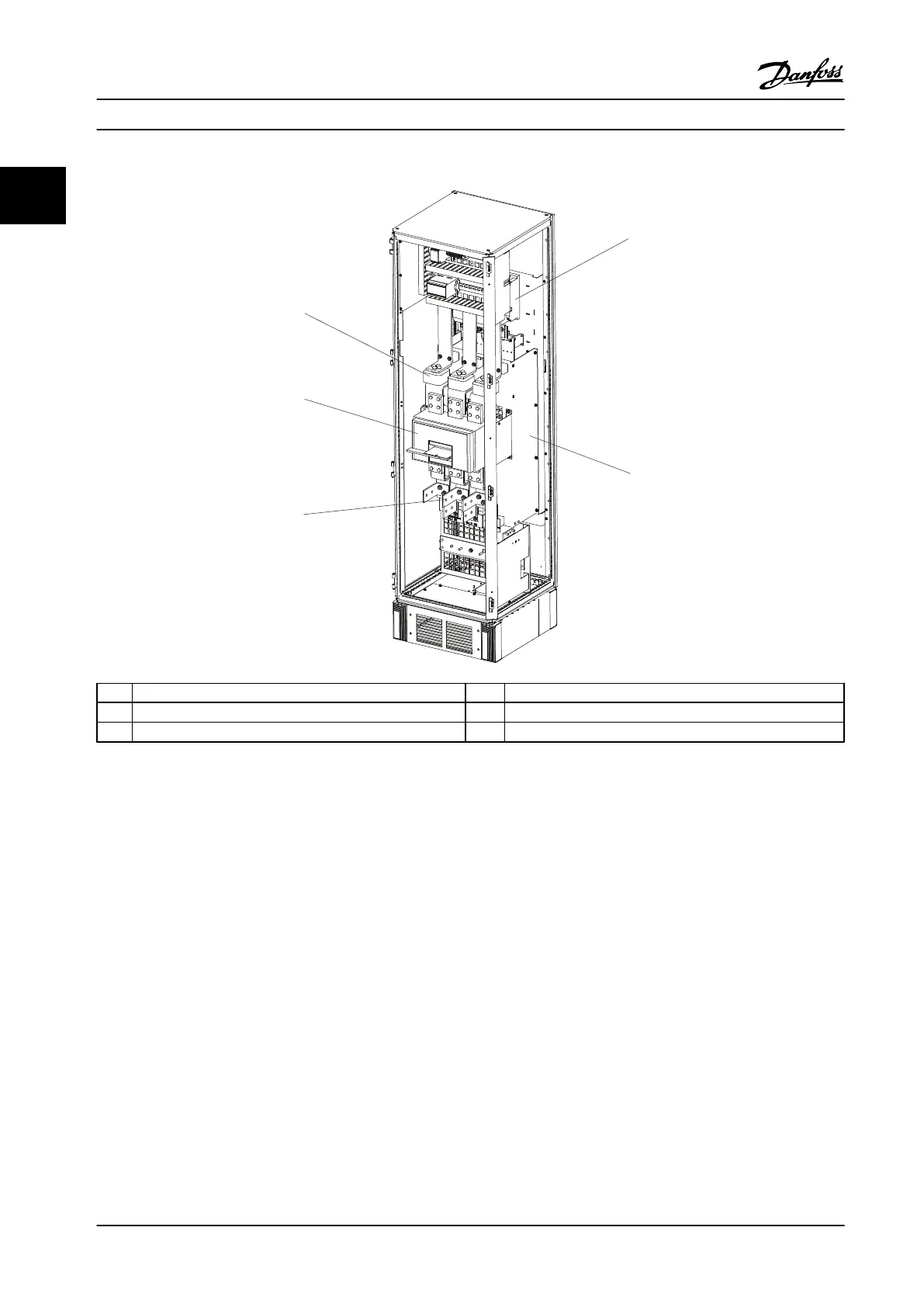

1 Contactor 4 Circuit breaker or disconnect (if purchased)
2 RFI filter 5 AC line power/line fuses (if purchased)
3 Line power AC power input terminals
Figure 2.5 Frame Size F18 Options Cabinet
*The options cabinet is not optional for the LHD. The ancillary equipment is stored in the cabinet.
Introduction Instruction Manual
10 Danfoss A/S © Rev. 2014-02-07 All rights reserved. MG37A222
22

Danfoss VLT HVAC Drive FC 102 Specifications

General

Enclosure	IP20, IP21, IP55
Ambient Temperature Range	-10°C to +40°C
Storage Temperature Range	-25°C to +70°C
Relative Humidity	5-95% (non-condensing)
Communication Protocols	Modbus RTU, BACnet, Profibus
Certifications	CE, UL, cUL
Control Principle	PWM
Cooling Method	Forced air cooling
Input Voltage	200-240V, 380-480V, 525-600V
Control Modes	sensorless vector control, closed loop vector control
