130BA853.12
1) Pilz Relay Terminal 4) Safety Relay Coil Fuse with PILZ Relay
2) RCD or IRM Terminal See fuse tables for part numbers
3) Mains 5) Line Fuses, F3 and F4 (3 pieces)
R S T See fuse tables for part numbers
91 92 93 6) Contactor Relay Coil (230 VAC). N/C and N/O Aux Contacts
(customer supplied)
L1 L2 L3 7) Circuit Breaker Shunt Trip Control Terminals (230 V AC or 230 V
DC)

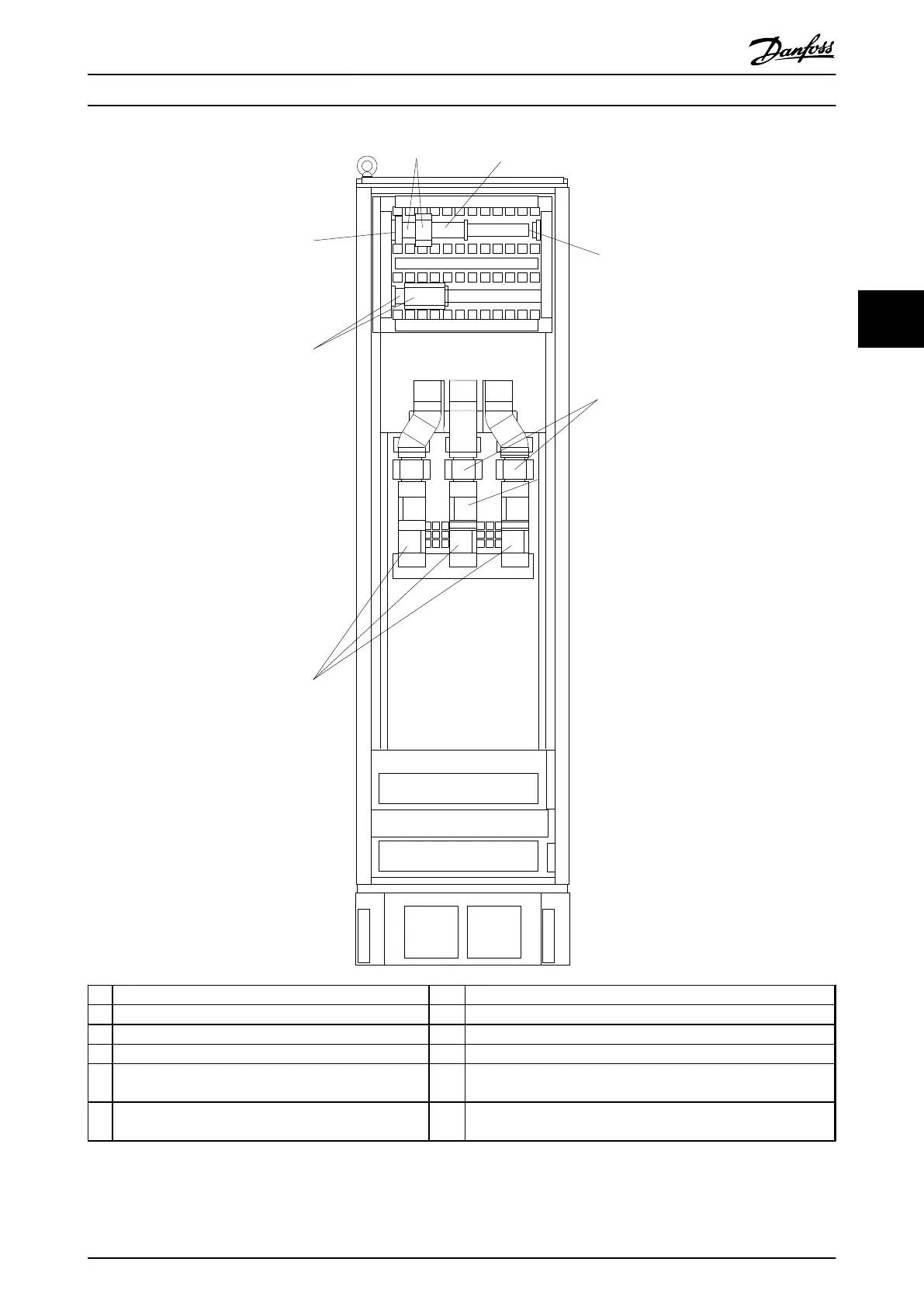

Illustration 4.15 Options Cabinet, Enclosure Types F3 and F4
