Danfoss VLT MCD 201

Danfoss Drives · DKDD.PB.551.A1.02 | 53
There are two options to connect an MCD 200 to a Modbus network.
Option 1: Using an MCD Modbus Module (Cat. No: 175G9000)
Notes
• A single Modbus Module is required for each MCD 200.
• Modbus Module settings are provided using two 8-way
DIP switches on the module.
• Up to 31 Modbus Modules can be used as Modbus slave devices
on a single Modbus RTU network.
• The Modbus Module is powered-up by the MCD 200.
• For more information about operating the MCD Modbus Module,
refer to the Installation Instructions (MG.17.Fx.02), located at
www.danfoss.com/drives.

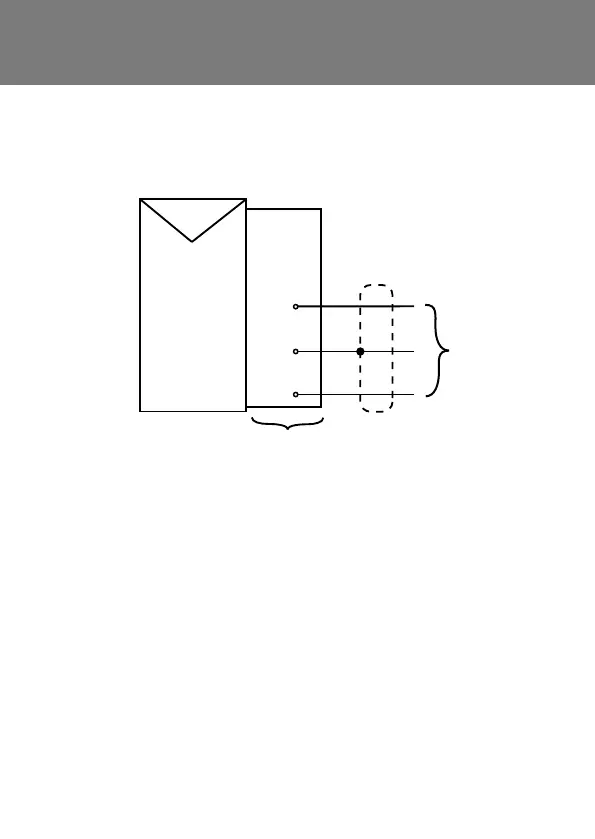

B8
B7
B6
-
+
GND
MCD200
MCD
Modbus
Module
RS485
connection
onto a
Modbus
RTU
network
Cat. No: 175G9000
MCD 200 Modbus Option
