D4-9 / D4-9X Four-Post Lifts 23 P/N 5900251 — Rev. A1— August 2021

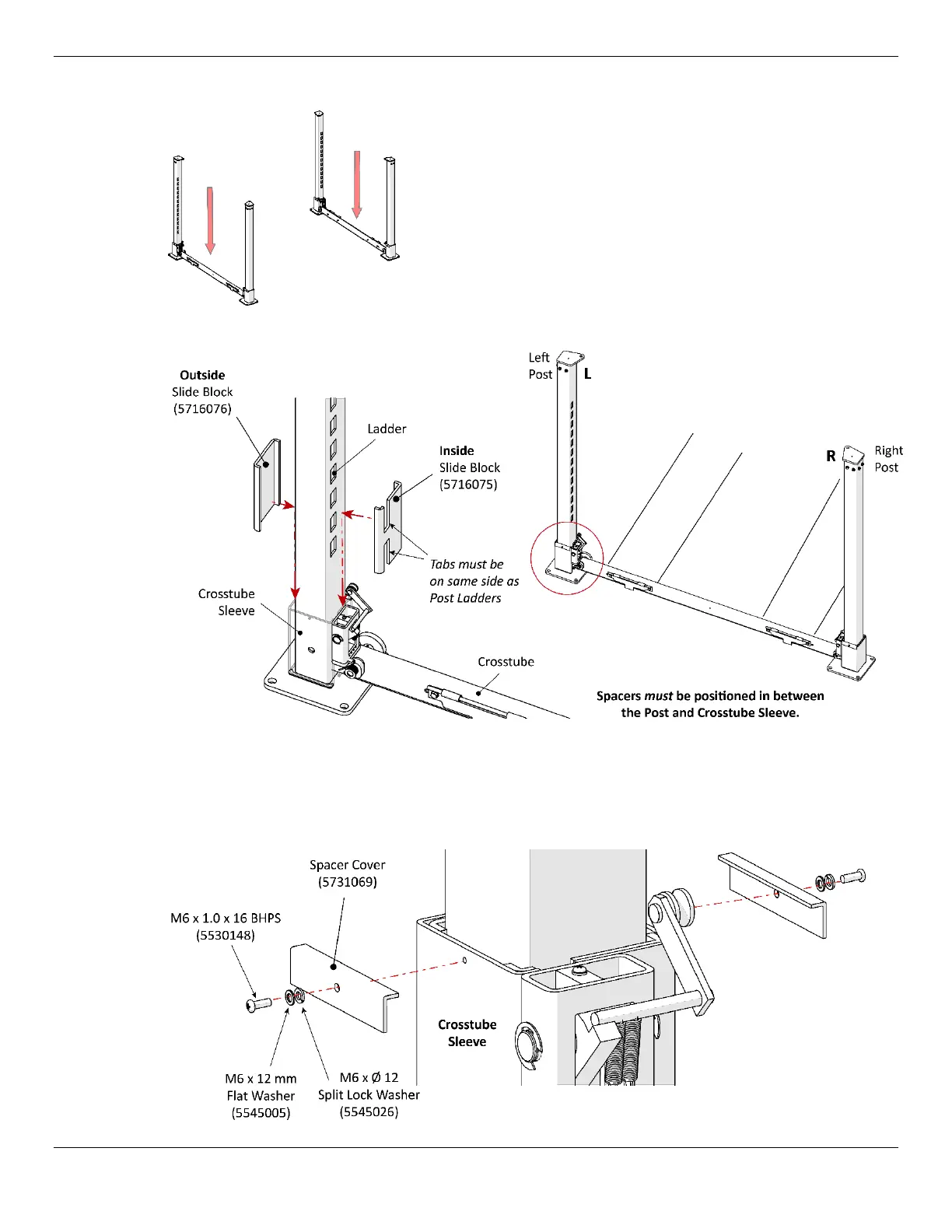

4. Stand the Posts back up again and carefully move the Sleeves all the way to the ground.
5. Insert the Slide Blocks in between the Posts and the Sleeve; slide them down from above.
Top view. Top Caps not installed at this point. Sleeves partially shown. Not all components shown.
Important: The Inside Slide Blocks go on the inside of the Posts, and the
Outside
Slide Blocks
go on the
outside
of the Posts.
6. Once the Slide Blocks are properly installed on the Posts, screw the Spacer Covers into place.
