D4-9 / D4-9X Four-Post Lifts 25 P/N 5900251 — Rev. A1— August 2021
Installing the Runways
Your Lift has two Runways:
• Powerside Runway: Has the Lift’s Hydraulic Cylinder underneath it. Lifting Cable routing starts
under the Powerside Runway.
• Offside Runway: The Offside Runway does not have a Hydraulic Cylinder under it, nor are there
any Lifting Cables or Runway Sheaves under it.
⚠ WARNING Pay close attention when moving the Runways into position, they are very heavy
and very long, and could shift position or fall, potentially causing serious injury. Only
let trained personnel move the Runways and only use appropriate tools, such as a
Forklift or Shop Crane.

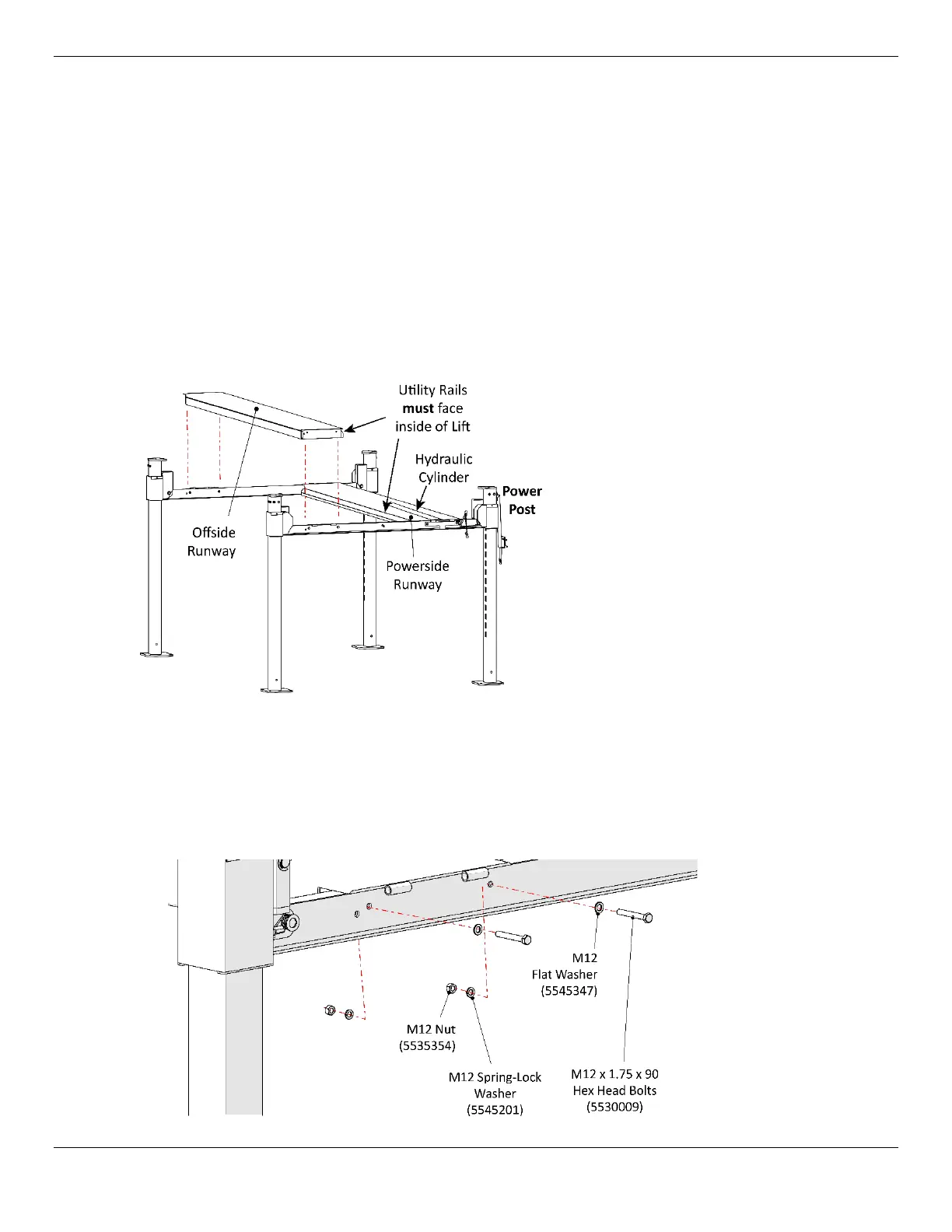

The following drawing shows the correct orientations of the Runways.
Not all components are shown. Powerside Runway must go next to the Power Post.
To install the Runways:
1. Make sure all six Sheaves have been removed from under the Powerside Runway.
2. Using a Forklift or Shop Crane, carefully move the Runways, one at a time, to their
required
positions with two Bolts and Washers on each end going into the Crosstubes.
