D4-9 / D4-9X Four-Post Lifts 29 P/N 5900251 — Rev. A1— August 2021

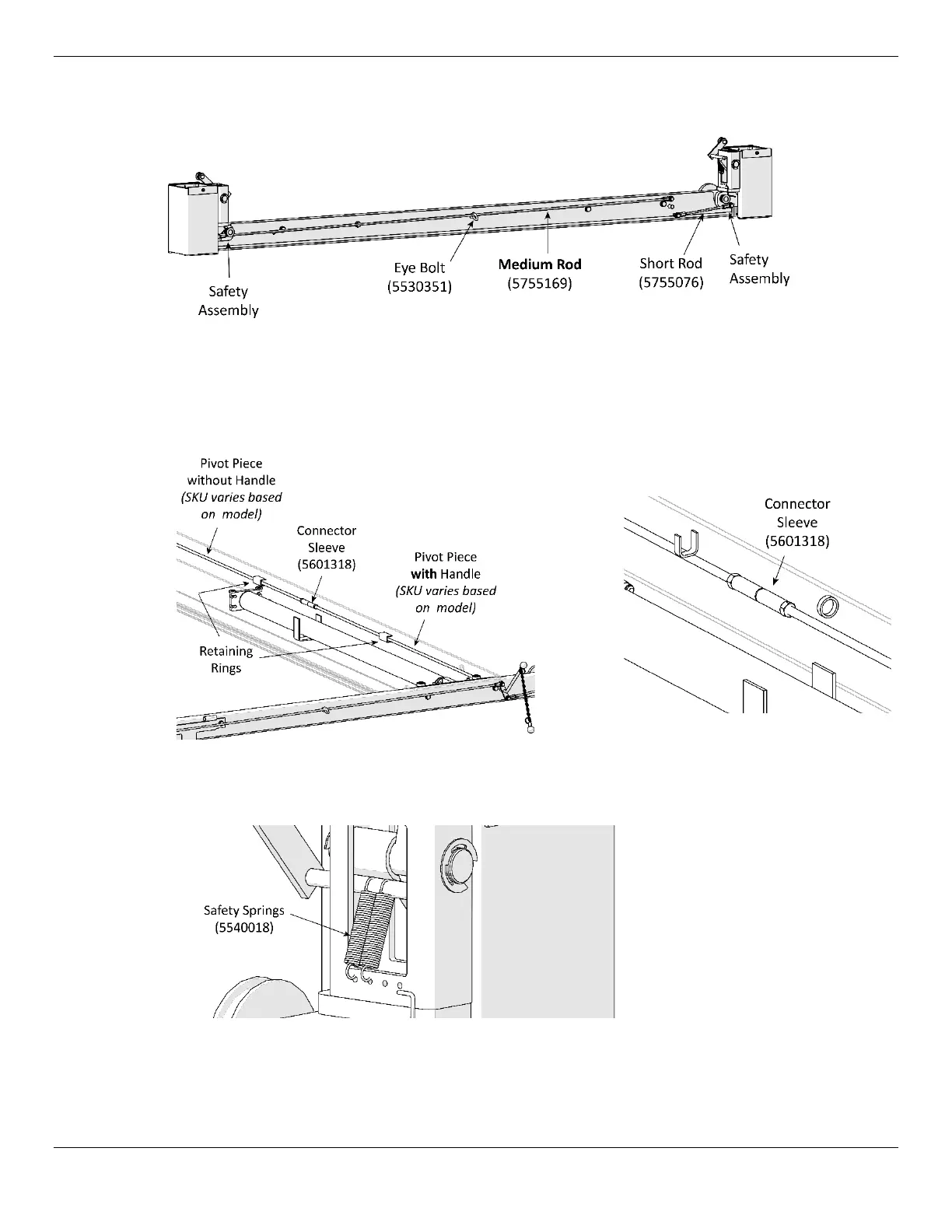

7. On the other end of the Medium Rod, unscrew the Female Rod End, Slide the Rod through the
Eye Bolt, and then reinstall the Female Rod End you just removed onto the Safety Assembly.
Posts removed for clarity. Front view of the Crosstube. Not all components are shown.
8. Complete Steps 1 through 7 for the other Crosstube with the Pivot Piece (without a Handle).
9.
Under
the Powerside Runway, put the two Rods into place in the Retaining Rings, put a Nut on
the end of each Rod, and then connect the Rods in the middle with the Connector Sleeve.
Close up of Connector Sleeve:
Not all components shown. Top of Runway removed for clarity.
10. Verify that the Safety Springs are in place on the Safety Assemblies; if not, then add them.
11. Re-check all of the connections you have made; tighten any loose connections.
12. Carefully push down the Handle on the Pivot Piece near the Power Unit.
13. Check to make sure that all parts of the Safety Lock Release Mechanism move correctly when you
push down on the Handle.
