D4-9 / D4-9X Four-Post Lifts 57 P/N 5900251 — Rev. A1— August 2021
Caster Kit
The Caster Kit includes four assemblies, one per Post. When the Lift is raised by the Caster Kit
assemblies, you can move it to a different location.
Important: Only put the Caster Kit into position to move the Lift. When you are done moving the
Lift, remove the Caster Kit.
⚠ WARNING Do
not
raise a Vehicle when it is on its Caster Kit.
To move your Lift with the Caster Kit:
1. Raise the Lift to the first lock and engage it there.
⚠ WARNING Do not proceed until you have confirmed that the Lift is securely on a Safety Lock.
2. Locate the components of the four Caster Kit assemblies.

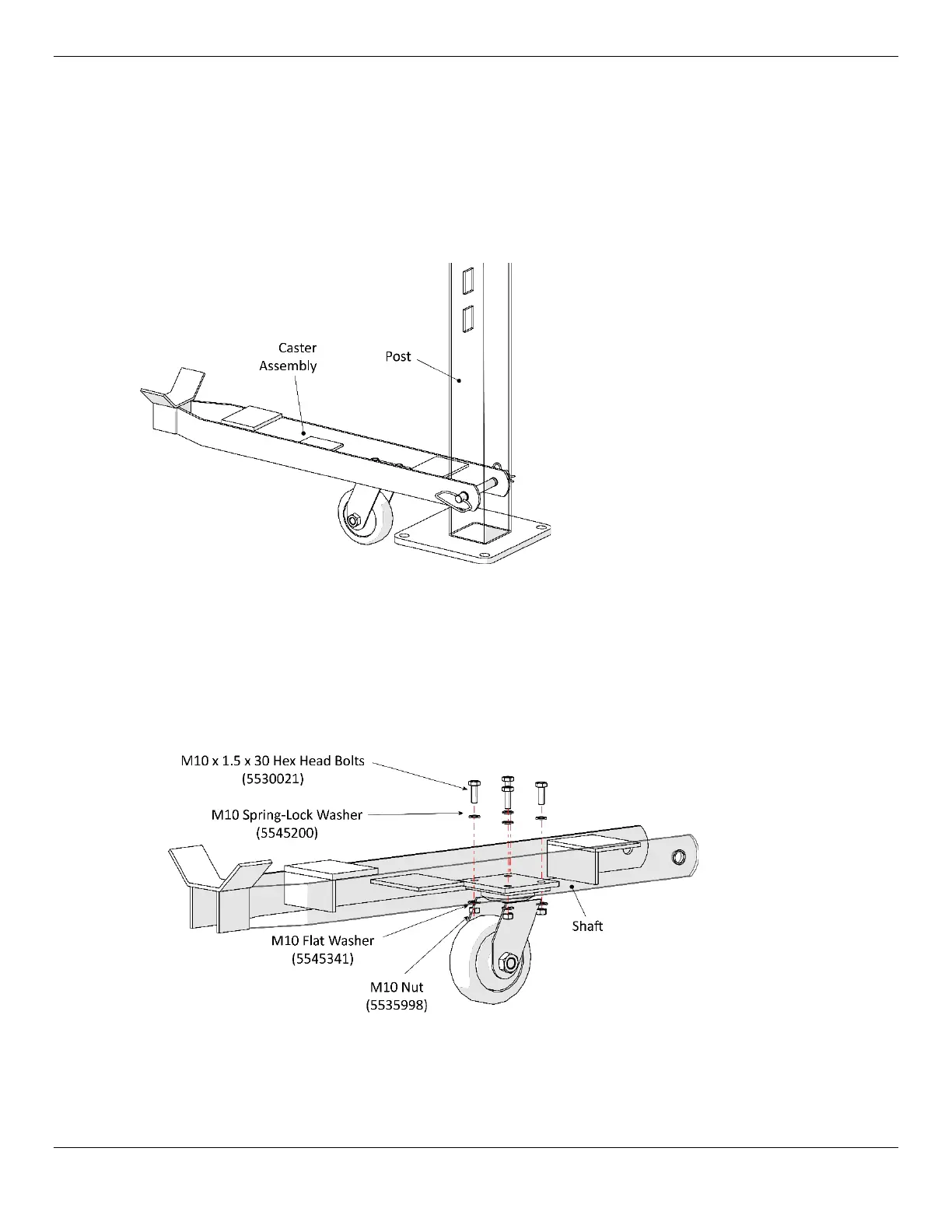

3. Using the supplied hardware, bolt all four Casters to the four holes in each of the Caster Assembly.
4. Put the open end around the Post, with the Caster Assembly on the inside of the Lift.
Important: The Cradle of the Shaft needs to be directly below the Crosstube above it.
