D4-9 / D4-9X Four-Post Lifts 58 P/N 5900251 — Rev. A1— August 2021

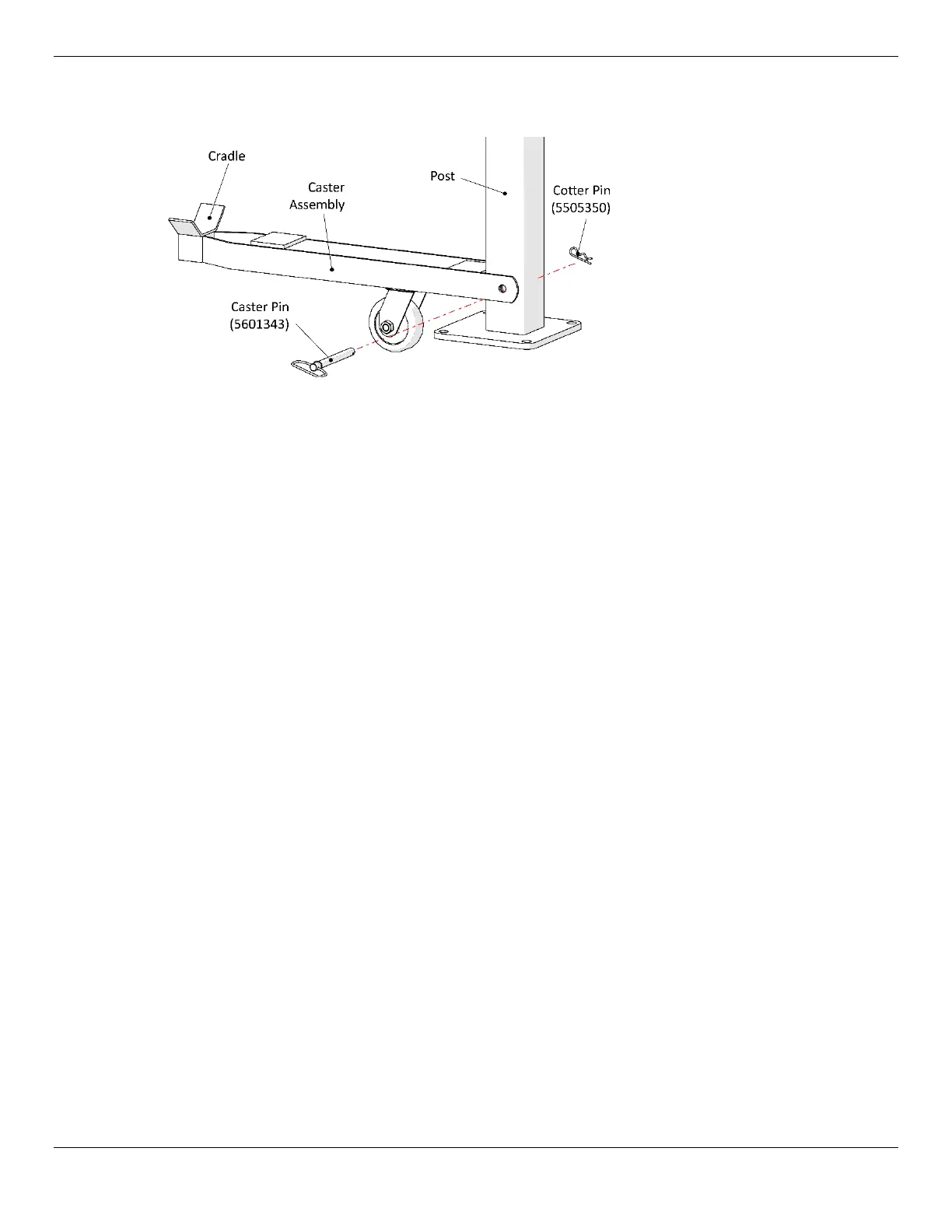

5. Put the Pin through the holes in the Caster Kit assembly and the Post, then secure it on the other
side with a Cotter Pin.
6. Repeat Steps 3 through 5 for the other three Caster Kit Assemblies.
7. Lower the Lift down all the way to the ground.
Make sure the Crosstubes are going into all four Cradles on all four Caster Kit Shafts; this is what
pushes the Bases of the Posts off the ground so that you can move it.
8. Move the Lift to the desired location, then raise the Lift to a locking position — off the Caster Kit
assemblies — and engage it there.
⚠ WARNING Do not proceed until you have confirmed that the Lift is securely on a Safety Lock.
9. Take off all four Caster Kit Assemblies.
