DB-70 Automatic Wheel Balancer 13 P/N 5900261 — Rev. A1 — January 2021
Clearance
A space around the Wheel Balancing Machine is required.
⚠ WARNING The Clearance values shown below allow enough space to operate the Wheel
Balancing Machine.
However, for safety purposes, only the Operator
should be within 30 feet of the Wheel Balancing Machine while it is
in use.

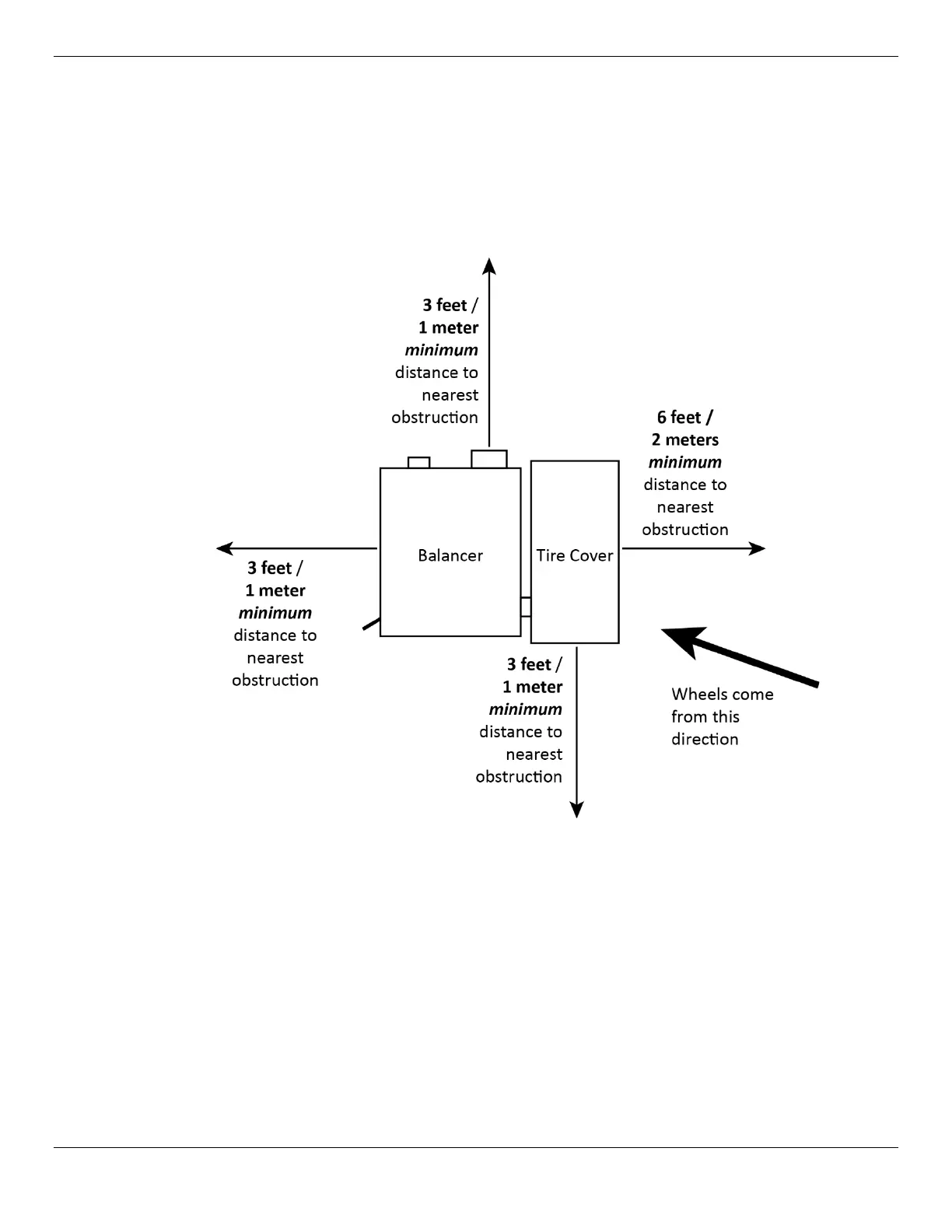

Top view. Not necessarily to scale. Not all components shown.
