Mounting of anti-vibration stands
Purpose of anti-
vibration stands
The anti-vibration stands permit floor mounting of the following dehumidifiers:
CDP 75 • CDP 125 • CDP 165
Contents
The following parts must be included in the package:
 2 stands
 4 vibration dampers
 4 set screws, M8 × 10 mm with Ø8 tension discs
 4 set screws M5 × 16 mm for fixing of dehumidifier

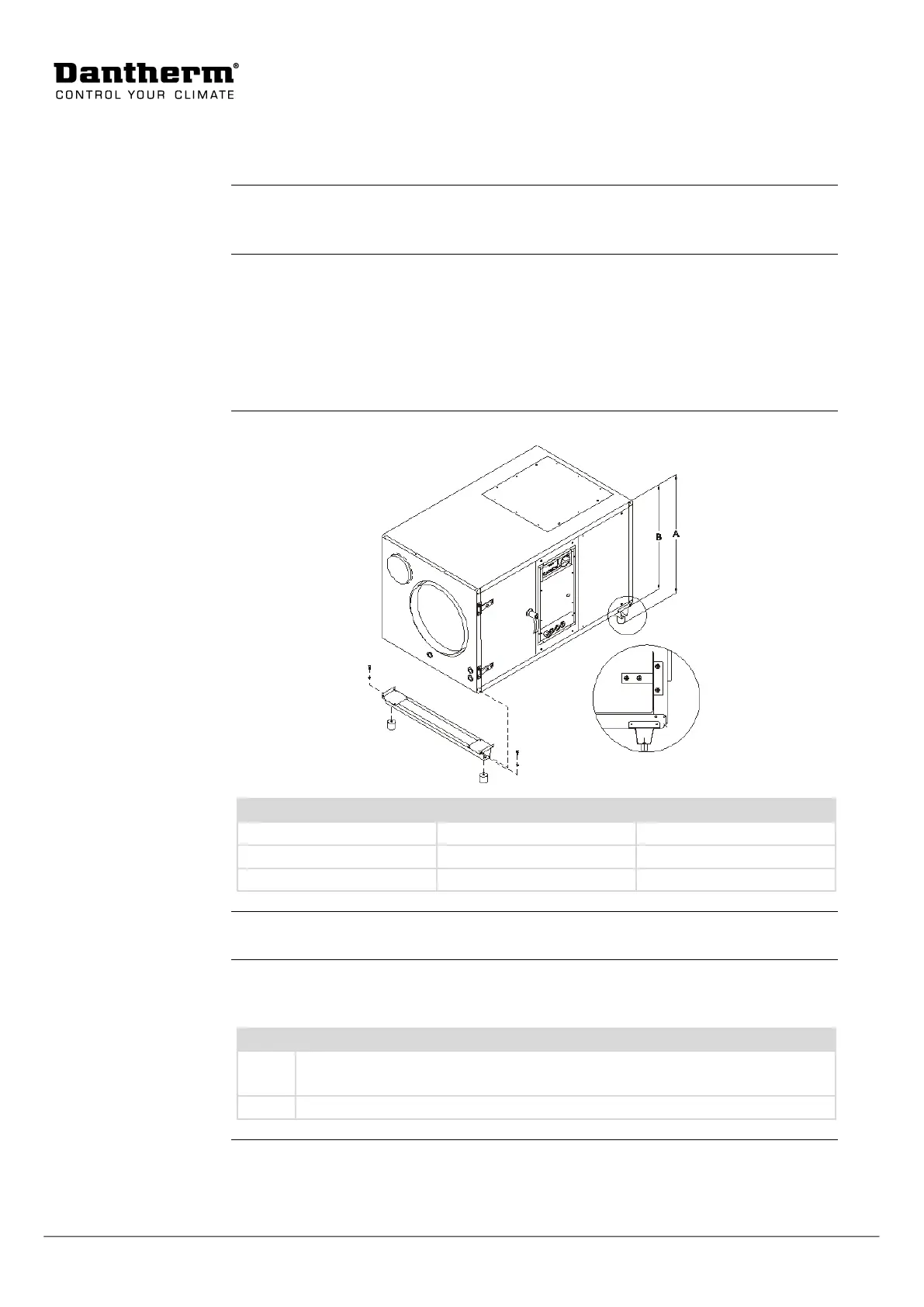

Illustration
This illustration may be useful during the mounting:
A ±2 mm
B
CDP 75
745 mm
650 mm
CDP 125
942 mm
850 mm
CDP 165
1067 mm
975 mm
Tools
For the mounting of the anti-vibration stands you need an 8 and a 13 mm fork wrench.
Procedure
Follow the below directions for the mounting of the anti-vibration stands onto the
dehumidifier:
Step
Action
1
Fit the vibration dampers onto the stands by means of the 4 set screws and
the tension discs as illustrated.
2
Place the dehumidifier on the stands and fasten by means of the 4 M5 screws.
