Dantherm CDP 50 - Cooling Circuit

15
EN

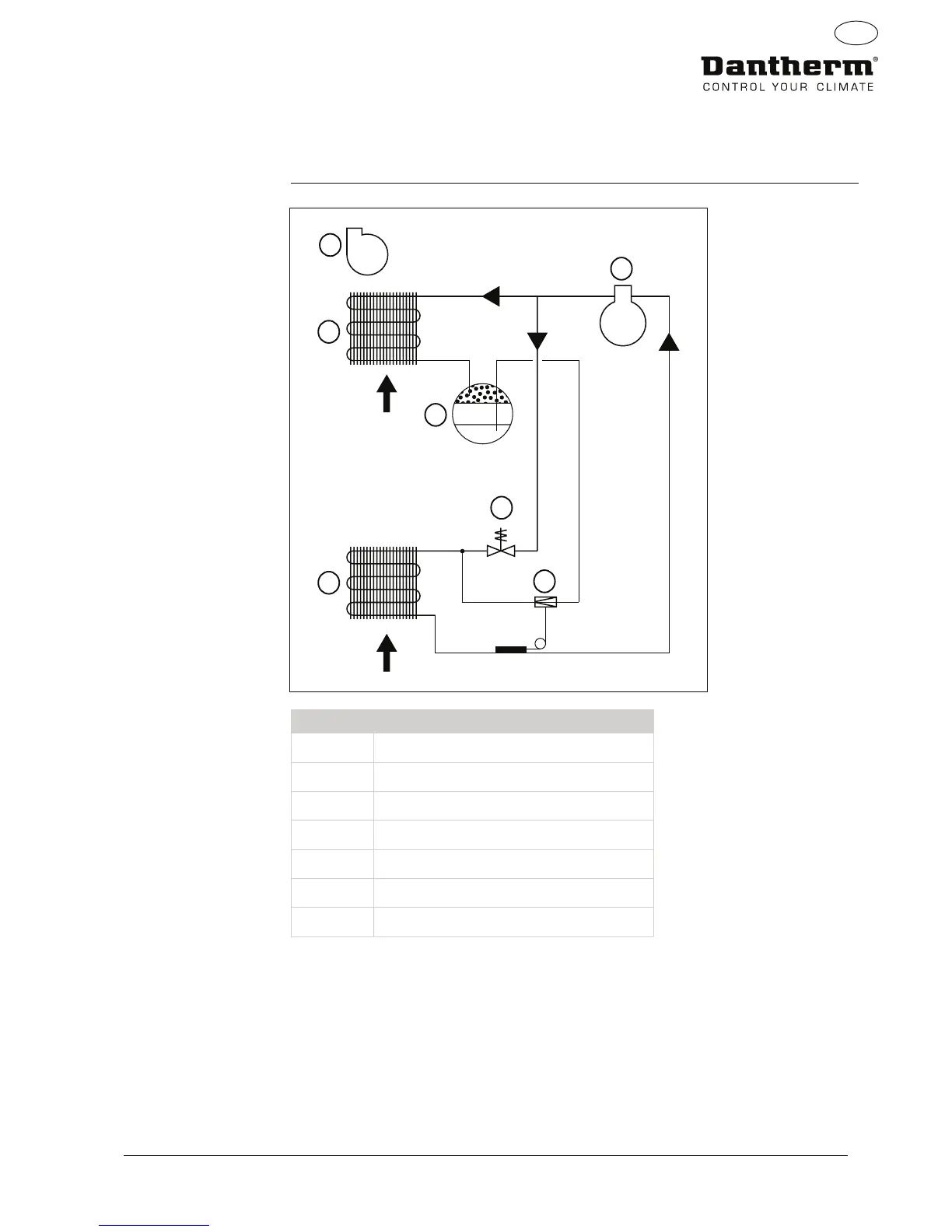

Illustration
No. Description
1 Compressor
2 Evaporator
3 Air-cooled condenser
4 Thermostatic expansion valve
5 Receiver/liquid line drier
6 Solenoid valve for pressure equalization
7 Fan
Cooling Circuit CDP 40-50-70, CDP 40T-50T-70T
2
3
4
5
6
7
1
