Water heating coil for CDP dehumidier - mounting
Installation procedure

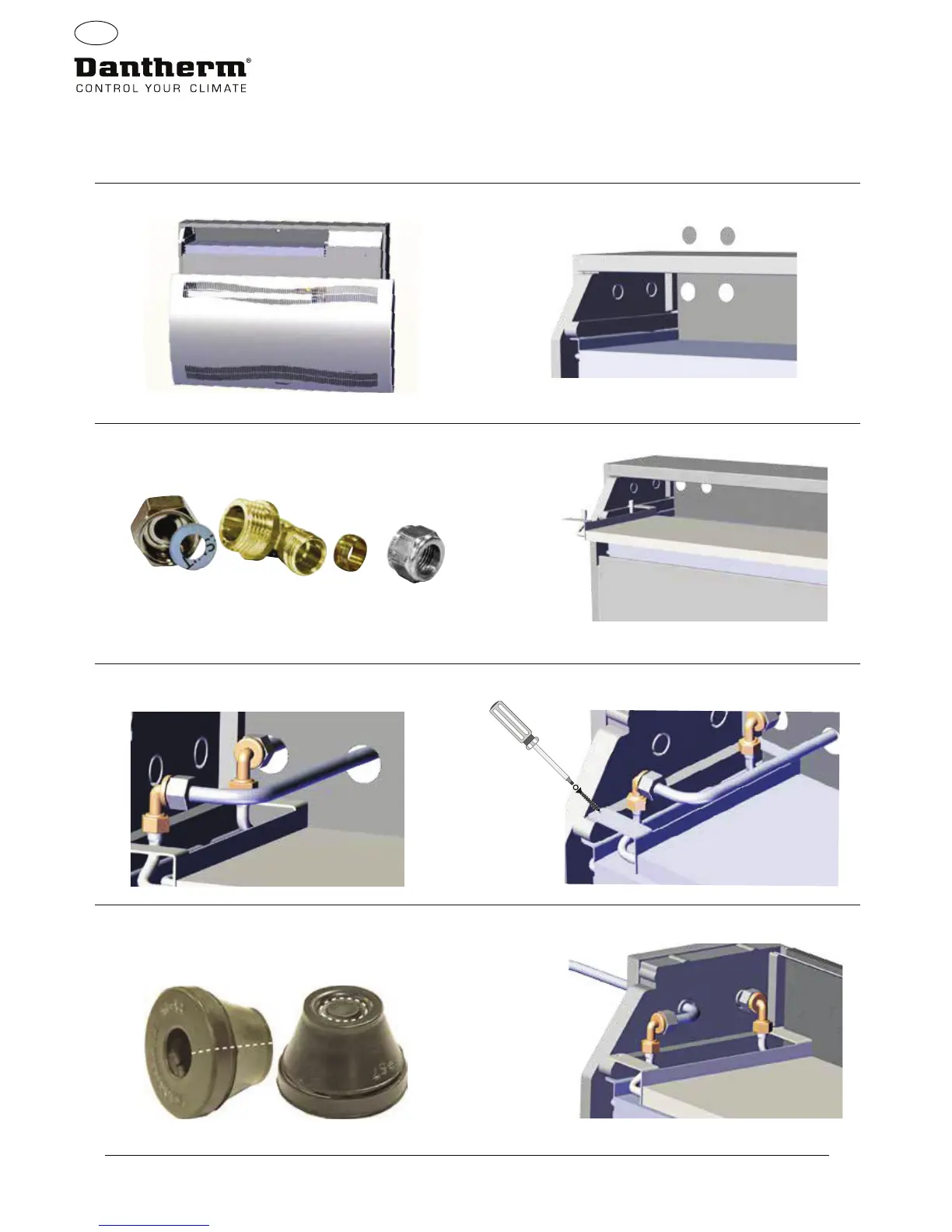

1. Remove front cover 2. Punch out the two discs in the rear of the unit.
3. Pre-assemble gaskets, ttings and exible hoses. 4. Slide heating coil into place.
5. Connect hoses to external heating source.
Note: the hoses run through the wall behind the unit.
6. Secure heating coil with two screws left and right front.
7. Cut along dotted lines and t grommet around ex hose.
Push grommet and hose in place using liquid detergent for
lubricant.
8. For CDP-T models the hoses are at the end of the unit.
