13
Advanced
parameters
°Dantherm Air Handling A/S., Skive, 7800 DENMARK
Controller - CC4 SW Ver - 0.4e
-----------------------------------------------------------

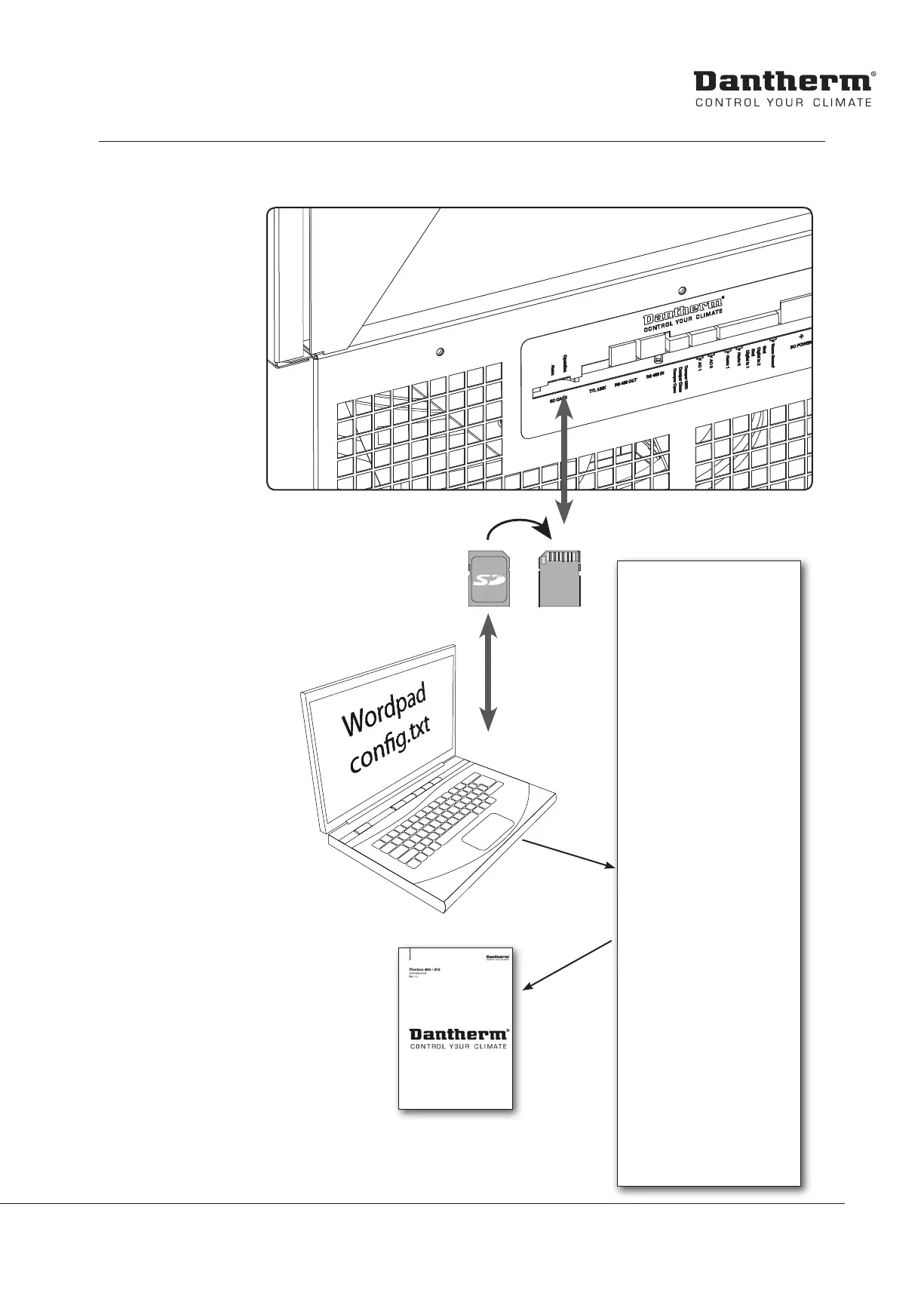

CC4 Configuration SW 2013.02.11
-----------------------------------------------------------
Device: Flexibox 810, 368453
-----------------------------------------------------------
Cooling Fan Configuration
Fan 1 Fan 2 Fan 3
1.OFF Temp [xT0][-40-80]: 20.0 :0.0 :20.0
2.IDLE ON Temp [xT1][-40-80]: 24.0 :5.0 :25.0
3.IDLE entry Temp [xT2][-40-80]: 24.0 :22.0 :30.0
4.SET POINT Temp [xTs][-40-80]: 24.0 :24.0 :30.0
5.HIGH SPEED Temp [xT3][-40-80]: 28.0 :30.0 :55.0
6.EXTND HS entry Temp [xT4][-40-80]: 30.0 :34.0 :55.0
7.EXTND HS exit Temp [xT5][-40-80]: 28.0 :32.0 :55.0
8.BOOST entry Temp [xT6][-40-80]: 36.0 :40.0 :60.0
9.BOOST exit Temp [xT7][-40-80]: 34.0 :35.0 :55.0
10.IDLE_RPM [xR1][500-9999]: 500 :1000 :800
11.HIGH SPEED RPM [xR3][500-9999]: 1860 :1700 :1400
12.EXTND HS RPM [xR2][500-9999]: 2000 :1300 :1600
13.IDLE Duty Cycle [xD1][10-100]: 20 :20 :30
14.HIGH SPEED Duty Cycle [xD3][10-100]: 80 :80 :80
15.EXTND HS Duty Cycle [xD2][10-100]: 65 :65 :80
16.BOOST Duty Cycle [xD4][10-100]: 100 :100 :100
17.Dead Band RPMCycle [DBx][100-1000]: 100 :100 :100
18.Override - Digi.1 [x/0/1]: 0 :x :x
19.Override - Digi.2 [x/0/1]: 0 :x :x
20.Override - Sensor Fail [x/0/1]: x :x :x
21.Sens.Sel. OBD/ROOM/SUPP/COND [0/1/2/3]: 1 :1 :3
22.Tacho pulse/rev [Tpx][1-8]: 3 :3 :3
23.Tacho Control Ena/Dis [Tcx][0/1]: 0 :0 :1
24.Ctrl type [0-10V/PWM] [Ctx][0/1]: 0 :0 :0
25.Enable [xFe][0/1]: 1 :0 :0
-----------------------------------------------------------
Damper Configuration
Damper 1 Damper 2
1.LOWER Close Temp [dT0][-40-80]: 20.0 : 20.0
2.SET POINT [dTs][-40-80]: 24.0 : 24.0
3.UPPER Open Temp [dT1][-40-80]: 60.0 : 60.0
4.UPPER Close Temp [dT2][-40-80]: 60.0 : 60.0
5.EMGNCY Open Temp [dT3][-40-80]: 60.0 : 60.0
6.Override - Digi.1 [x/0/1]: 0 : 0
7.Override - Digi.2 [x/0/1]: 0 : 0
8.Override - Sensor Fail [x/0/1]: x : x
9.Sensor Sel. OBD/ROOM/SUPPLY [0/1/2]: 1 : 1
10.Damper Run dur. [30 - 300]: 120 : 120
11.Enable [xDè][0/1]: 1 : 0
-----------------------------------------------------------
Compressor/AC-Unit Configuration
Comp A/C 1 A/C 2
1.ON Temp [cT0][-40-80]: 32.0 : 32.0 : 32.0
2.OFF Temp [cT1][-40-80]: 30.0 : 30.0 : 30.0
3.Emerg ON Temp [cT2][-40-80]: 55.0 : 36.0 : 36.0
4.Emerg OFF Temp [cT3][-40-80]: 55.0 : 34.0 : 34.0
5.Override - Digi.1 [x/0/1]: x : 0 : 0
6.Override - Digi.2 [x/0/1]: x : x : x
7.Override - Sensor Fail [x/0/1]: x : x : x
8.Sensor Sel. OBD/ROOM/SUPPLY [0/1/2]: 1 : 1 : 1
9.Min. ON duration Sec.(1-30min) [60-1800]: 480 : 180 : 180
10.Restart time-out Sec.(1-30min) [60-1800]: 120 : 180 : 180
11.Lead/Lag Enable [0/1]: 0 : 0 : 0
12.Enable [xAe][0/1]: 0 : 0 : 0
-----------------------------------------------------------
Heater Configuration
1.ON Temp [hT0][-40-80]: 12.0
2.OFF Temp [hT1][-40-80]: 14.0
3.Override - Digi.1 [x/0/1]: 0
4.Override - Digi.2 [x/0/1]: 0
5.Override - Sensor Fail [x/0/1]: x
6.Sensor Sel. OBD/ROOM/SUPPLY [0/1/2]: 1
7.Enable [xDe][0/1]: 1
-----------------------------------------------------------
System Control Configurations
1.Norm. Vdc Low Level [V1][18-60]: 40
2.Norm. Vdc High Level [V2][18-60]: 60
3.Temp Alarm Low Limit [TL][(-40)-80]: 0.0
4.Temp Alarm high Limit [TH][(-40)-80]: 50.0
5.Delta T [Dt][(-40)-80]: 3.0
6.Alarm1 NO/NC Type [Àlm1][0/1]: 0
7.Alarm2 NO/NC Type [Alm2][0/1]: 0
8.Alarm1 delay sec [Alm1 delay][0-100]: 10
9.Alarm2 delay sec [Alm2 delay][0-100]: 10
10.Dig.1 NO/NC Type [Dig1][0/1]: 0
11.Dig.2 NO/NC Type [Dig2][0/1]: 0
12.Door Xtch. NO/NC Type [Door][0/1]: 0
13.Filter Grd NO/NC Type [Filt][0/1]: 0
14.Phase Monitor NO/NC Type [PHm][0/1]: 0
15.Status Log Dis/Ena. [Log][0/1]: 1
16.Log interval in min. [Int][1-60]: 1
17.RS-485 Bus Pow. Dis/Ena [0/1]: 1
18.ModBus Slave Addr [1-255]: 23
19.Alarm Mapping 1.Alarm1 2.Alarm2
1.Pwr Save Mode [PSM][0/1]: 1 : 0
2.Room Temp H/L [THL][0/1]: 1 : 0
3.Fan 1 [F1][0/1]: 1 : 0
4.Fan 2 [F2][0/1]: 0 : 0
5.Fan 3 [F3][0/1]: 0 : 0
6.Onbrd. Sens [OS][0/1]: 0 : 0
7.Room Sens [RS][0/1]: 1 : 0
8.Amb. Sens [AS][0/1]: 1 : 0
9.Supp. Sens [SS][0/1]: 0 : 0
10.Cond. Sens [CS][0/1]: 0 : 0
11.Digi.1 I/P [FIL][0/1]: 0 : 0
12.Digi.2 I/P [FI][0/1]: 0 : 0
13.Door Xtch I/P [DI][0/1]: 0 : 0
14.Filt Grd I/P [FI][0/1]: 0 : 1
15.Phase I/P [FI][0/1]: 0 : 0
