AC-6 iAC 6K 8K Manual Rev B Page 17 of 22

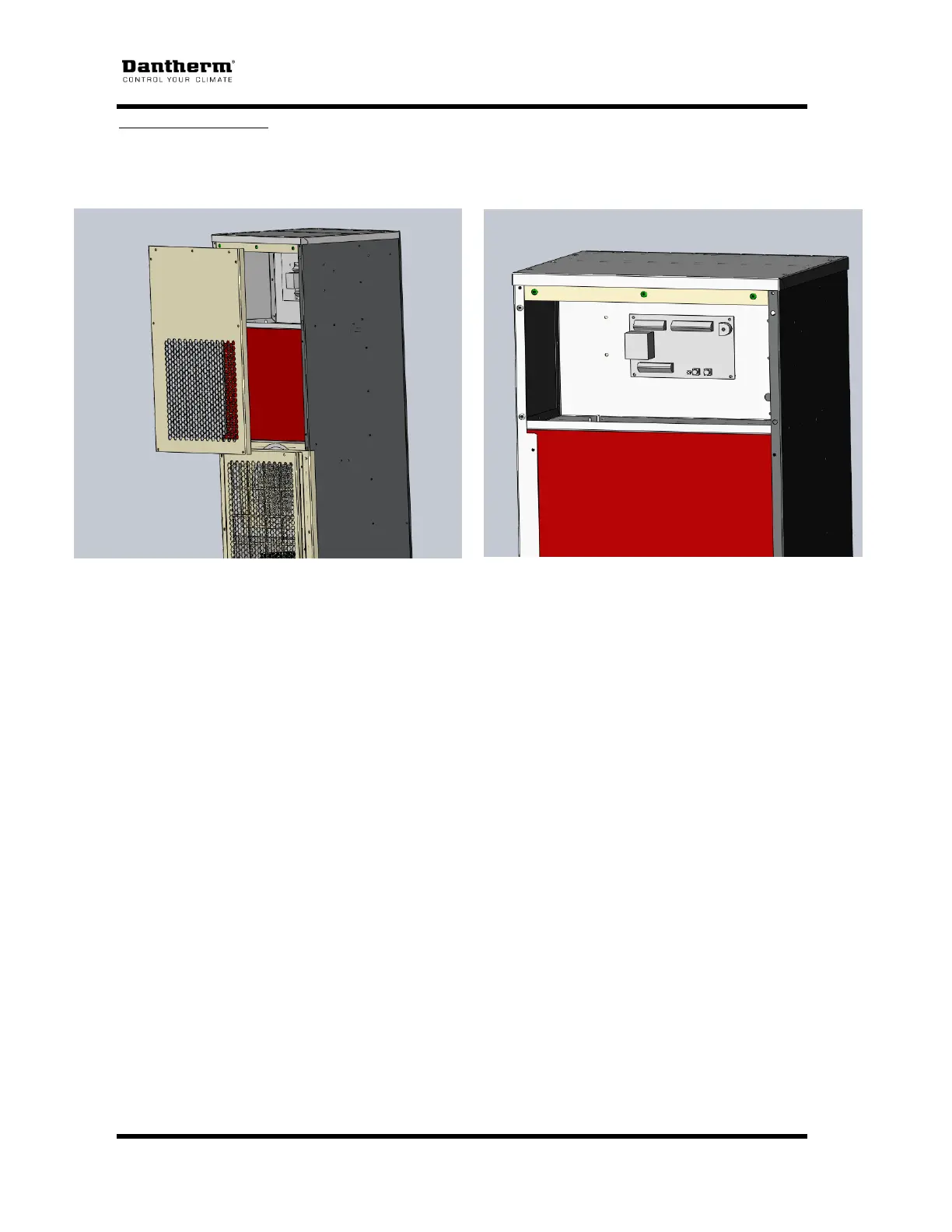

Control Board Removal - Remove front cover by unscrewing 9 torx screws. Now disconnect all wires and
connectors to control board, unscrew the four phillips screws holding the control
board down. Now the control can be removed. Note: When reinstalling the
control board, the compressor wire going through the current sensor on the
control board should be looped in order to maintain the correct current.
6.8 Overload Temperature Limiting Device
The overload temperature limiting device is located below the heater element. Remove 2 Torx security screws
to remove bottom front cover. Remove 4 Torx security screws to remove condenser fan assembly. Remove 8
torx screws to remove TXV access panel and reset the overload device.
