IMIX 7.1
Ordercode: D2350
Description of the device
Features
The IMIX-7.1 is a compact installation mixer for many kind of applications. It has a basic design which
makes it easy to control. Gain settings are at the backside which prevents wrong use by non-technical
users. The 3 balanced master outputs each with low, mid and high tone controls make it possible to set
up different sound levels for 3 areas. At the front it has a direct input for 2 microphones, 1 Line source or a
Phone/MP3 device with a dedicated impedance switch.
 Gain settings at backside
 Special front input for phone/mp3 devices
 3 Balanced master outputs with tone control
 2 Mic, 11 Line input
Overview

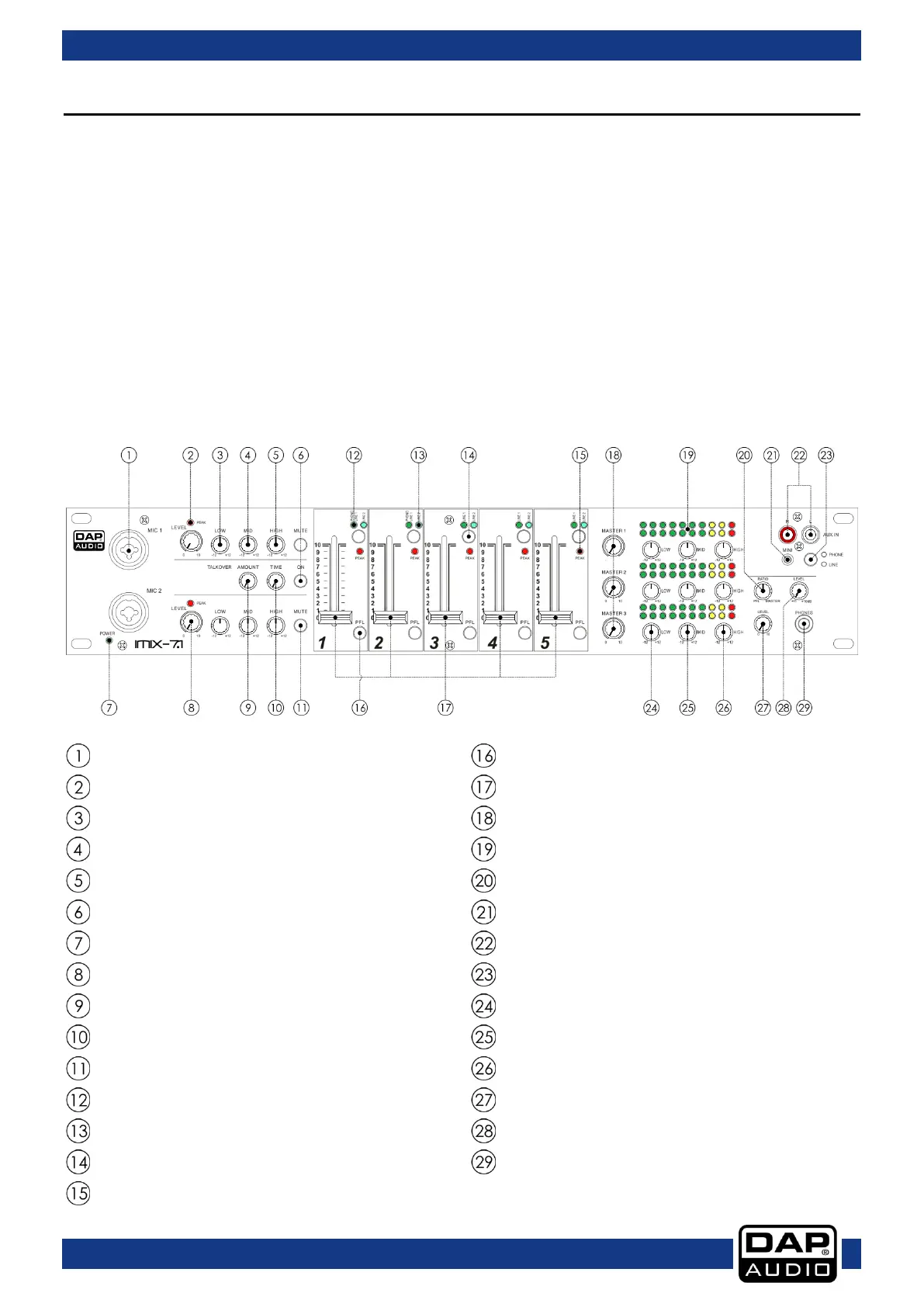

Front
Balanced input connector (mic 1/2)
PFL button (channel 1-5)
Peak LED (mic 1/2)
Channel fader (channel 1-5)
Low control (mic 1/2)
Master control (master 1-2)
Mid control (mic1/2)
VU-meter (master 1-3)
High control (mic1/2)
Ratio control
Talkover on button
Aux in unbalanced mini jack input
Power LED
Aux in unbalanced RCA input
Mic level control (mic 1/2)
Phone/line button
Talkover amount control
Low control (master 1-3)
Talkover time control
Mid control (master 1-3)
Mute button (mic 1/2)
High control (master 1-3)
Phono/ line 1 LED (channel 1-5)
Headphone level control
Line 2 LED (channel 1-5)
Aux in level
Input selection switch (channel 1-5)
Headphone output
Peak LED (channel 1-5)
