DAPAudio IMIX-7.1 User Manual

6
IMIX 7.1
Ordercode: D2350

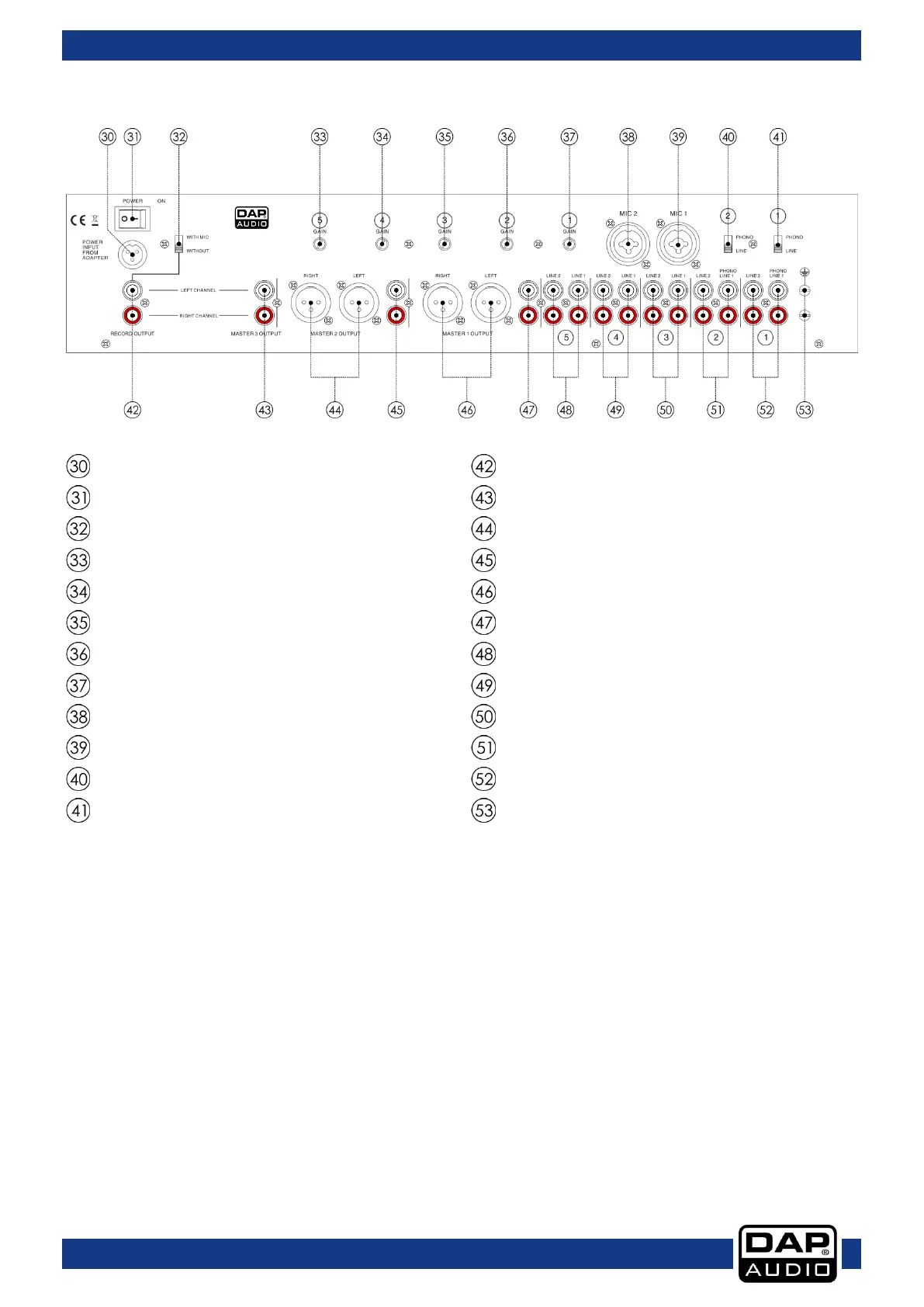

Rear
Power adapter connector
Record RCA unbalanced out connector
Power on/off switch
Master 3 RCA unbalanced out connector
With/without mic Switch
Master 2 XLR balanced out connector
Channel 5 gain control
Master 2 RCA unbalanced out connector
Channel 4 gain control
Master 1 XLR balanced out connector
Channel 3 gain control
Master 1 RCA unbalanced out connector
Channel 2 gain control
Channel 5 line 1/line 2 input connectors
Channel 1 gain control
Channel 4 line 1/line 2 input connectors
Mic 2 combo input connector
Channel 3 line 1/line 2 input connectors
Mic 1 combo input connector
Channel 2 phono/line input connectors
Channel 2 line/phono switch
Channel 1 phono/line input connectors
Channel 1 line/phono switch
GND screw
Installation
Remove all packing materials from the IMIX-7.1. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

DAPAudio IMIX-7.1 Specifications

General

Brand	DAPAudio
Model	IMIX-7.1
Category	Music Mixer
Language	English
