13. Channel 3 pan control
By using the panorama control you can change the input signal’s position within the stereo image. When
the panorama control is set to center position, the audio signal is equal for both the left and right output.
14. Channel 4 pan control
By using the panorama control you can change the input signal’s position within the stereo image. When
the panorama control is set to center position, the audio signal is equal for both the left and right output.

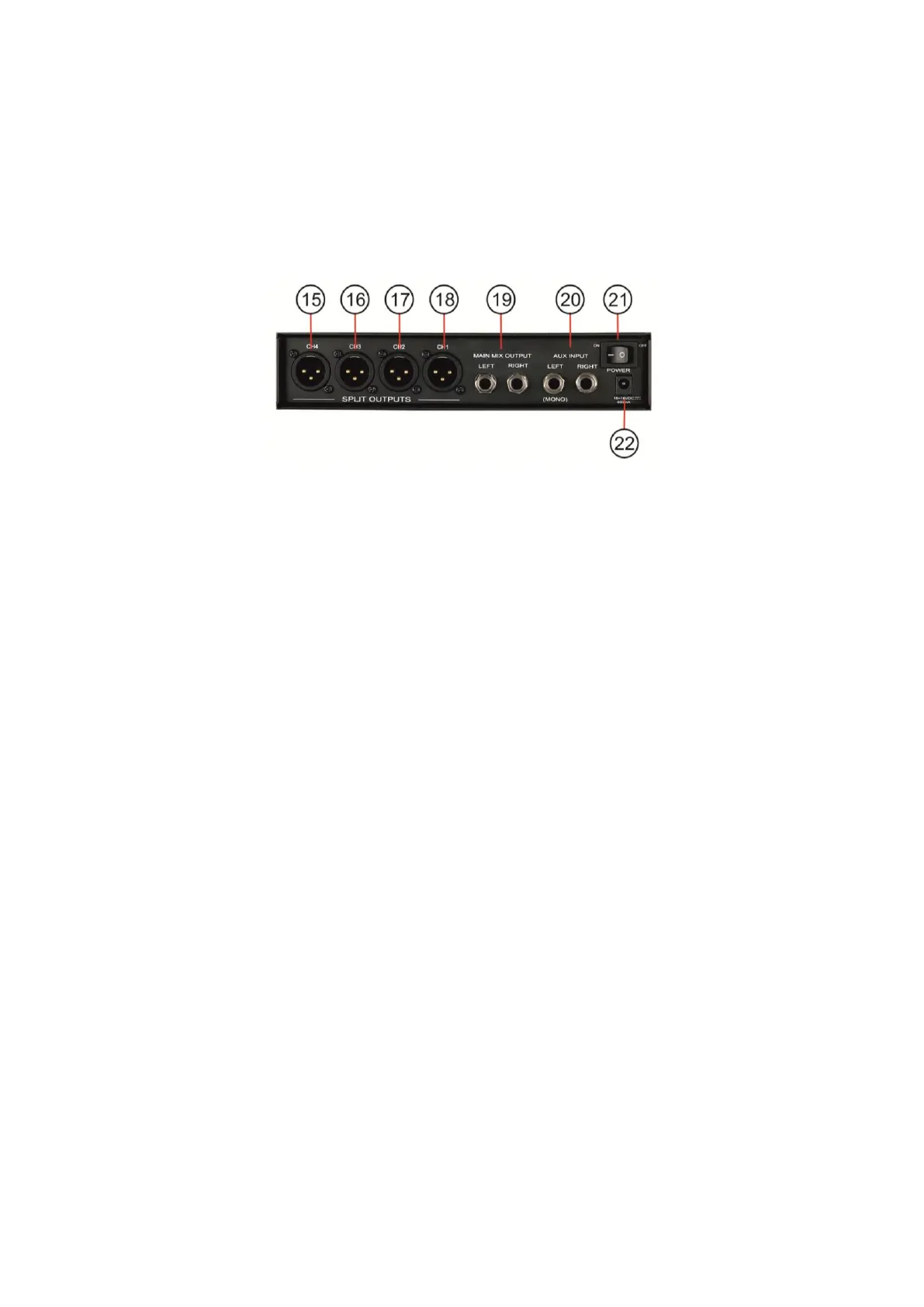

Rear
Fig. 3
15. Channel 4 split output
Use this output to connect your input devices directly with the front of house mixer.
16. Channel 3 split output
Use this output to connect your input devices directly with the front of house mixer.
17. Channel 2 split output
Use this output to connect your input devices directly with the front of house mixer.
18. Channel 1 split output
Use this output to connect your input devices directly with the front of house mixer.
19. Main mix stereo outputs
Connect these outputs to a (headphone)amplifier with unbalanced inputs or to the aux (20) inputs of
another MMIX-4.
20. Aux stereo/mono inputs
Connect a mono or stereo signal source to this aux bus. Make sure to use the left input if you want to
connect a mono signal source.
21. Power on/off switch
This is the main Power switch. Press to turn the device on.
22. DC power connector
This connector is meant for the connection of the supplied power adapter. Use the supplied adapter
only.
