16 Vantec series User's Manual
Vantec Series | Configuration
Caution

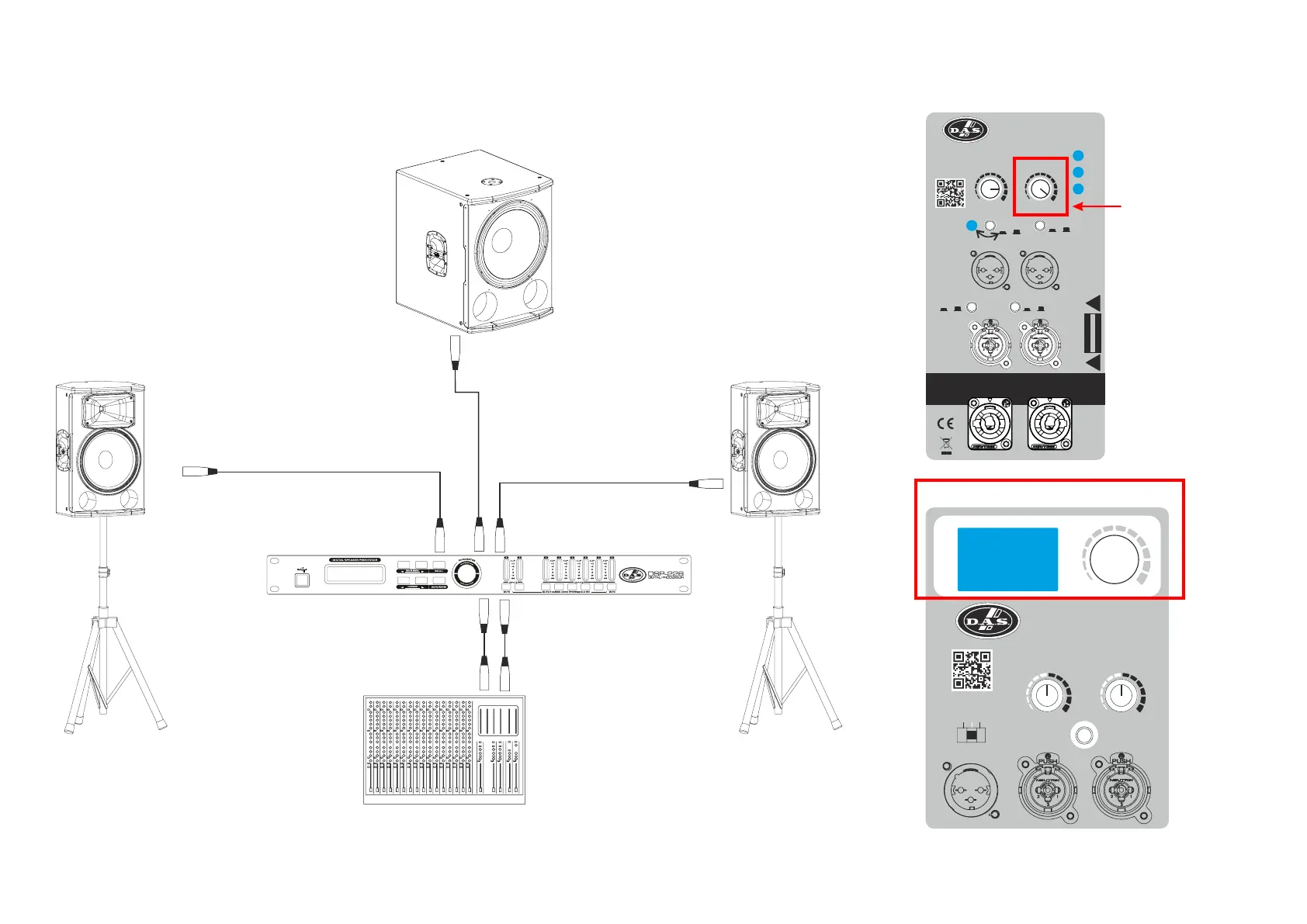

When using a external DSP the High Pass filter
for the top cabinets and the Low pass filter in the
subwoofer have to be set up in the processor.
This means that HPF needs to be off in VANTEC-
12A (VANTEC-15A) and Low Pass filter in the sub
at the maximum position. It would be extremely
important to time align the system.
L
R
VANTEC-15A (or VANTEC-12A)
VANTEC-18A
VANTEC-15A (or VANTEC-12A)
TRD-2 TRD-2
MIXER
OUTPUT A OUTPUT B
HPF/THRU
SATELLITE X-OVER
LIMIT
SIGNAL
ON
- +
POLARITY
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LEVEL
+6-oo
0
LOW-PASS
125Hz
80Hz
100Hz
DAS Audio Group, S.L. (Valencia)
MADE IN SPAIN
INPUT A
INPUT B
115/230 V~ 50/60Hz 500W
AC INPUT
MAX. 6@230V / 2@115V
UNITS VANTEC-18A
AC OUTPUT
DEEP/LOUD
PRESET
www.dasaudio.com
OFF/ON
LED
VV AA NN TT EE CC
series
Model: VANTEC-18A
CH 1
MAX-oo
0
CH 2
MAX-oo
0
INPUT 1 INPUT 2
AUX IN
MICLINE MICLINE
OUTPUT
MIX CH 1 CH 2
DAS Audio Group, S.L. (Valencia) MADE IN SPAIN
AUDIO MANAGEMENT
PUSH FOR DSP
GAIN
VOLUME
VV AA NN TT EE CC
www.dasaudio.com
series
HPF: OFF
Set Low Pass Filter
to maximum
position
Set HPF to off
