4 Magellan
TM
8300/8400

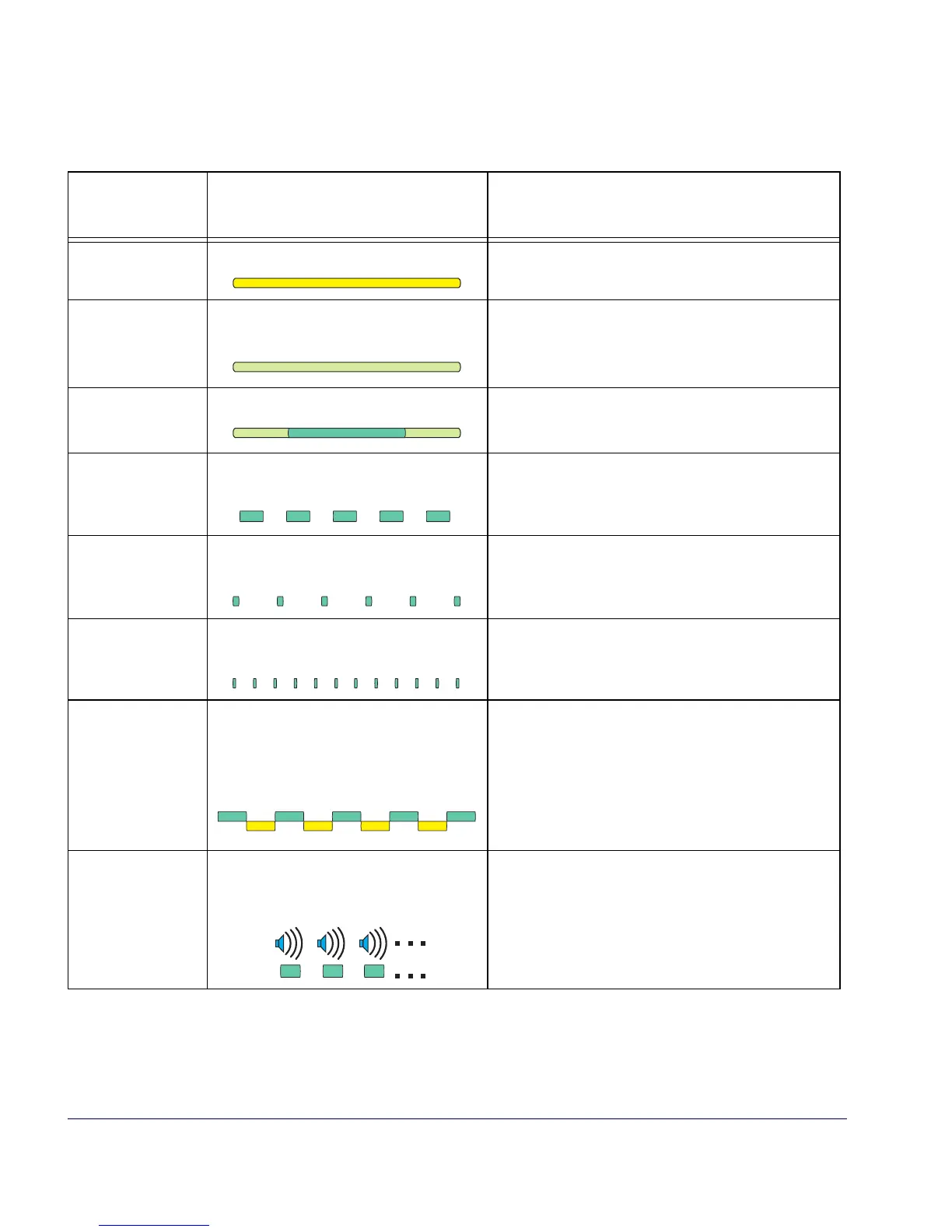

Table 1. Scanner and Scale Indications
LED
INDICATION
DURATION COMMENT
Scale at Zero
a
Scale (Yellow) LED on steady
The scale is at rest and reads zero weight. The
scale is ready to weigh.
Scanner Active
a
(Normal Mode)
Scanner (Green) LED on steady and
dim
The scanner is ready for operation. Scanning is
immediately available.
Good Read Indi-
cation
a
Scanner (Green) LED - bright flash
Indicates a bar code has been read and
decoded.
Program Mode
Indication
Scanner (Green) LED - Continuous
flashing 1 second on, 1 second off
Indicates the scanner is in Label Programming
Mode. Cycle power to exit Programming Mode.
Sleep Mode
Indication
Scanner (Green) LED flashes 10 mS
on, 1990 mS off
The scanner motor and/or laser have automati-
cally switched off and the unit has entered Sleep
Mode due to extended inactivity.
Host Disabled
Scanner (Green) LED 100 mS on,
900 mS off
Host has disabled scanning.
Field Replace-
able Unit (FRU)
Warning (Error
Mode)
Audible low error tone 1 second
Green and Yellow LEDs flash alter-
nately
Serves notice that a fatal FRU failure has been
detected. Consult the Product Reference Guide
for more details. If a low tone is heard, but con-
tinuous flashing is not observed, the scanner
can still function in a limited capacity. Call sys-
tems support for service in either case.
FRU Indication
Scanner (Green) LED flashes a
coded sequence in concert with the
speaker.
Occurs ONLY upon Volume/Tone button push
following an FRU warning indication. Enables
service technicians to identify FRU failures.
a. Certain functions of the Green and Yellow LEDs are selectable to be enabled or disabled. Your scanner
may not be programmed to display all indications.
