Portable Desktop Mounting
8
BC9600/BC9620 BASE STATIONS

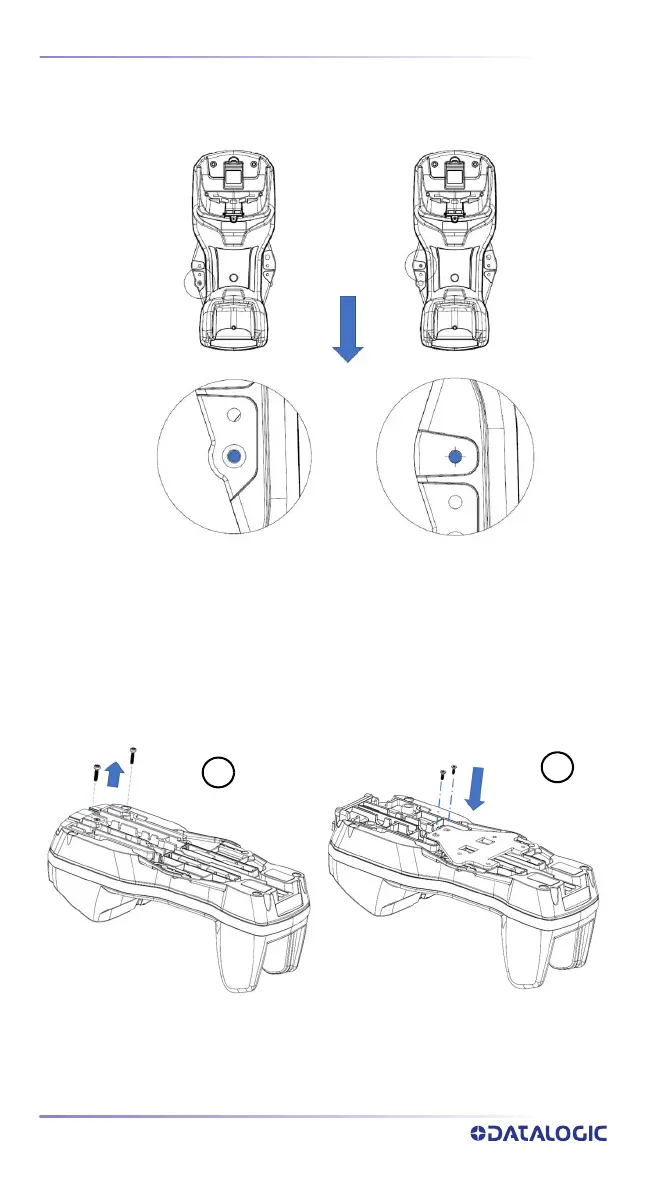

4. Move the base station down until the sphere is aligned with the smaller
hole.
Connection Module Fast Release - Mounting the Bracket (not
valid for BC9620 models)
1. Remove the protective strips.
2. Unscrew the connection module from the base station.
3. Screw the mounting plate to the connection module.
2
3
