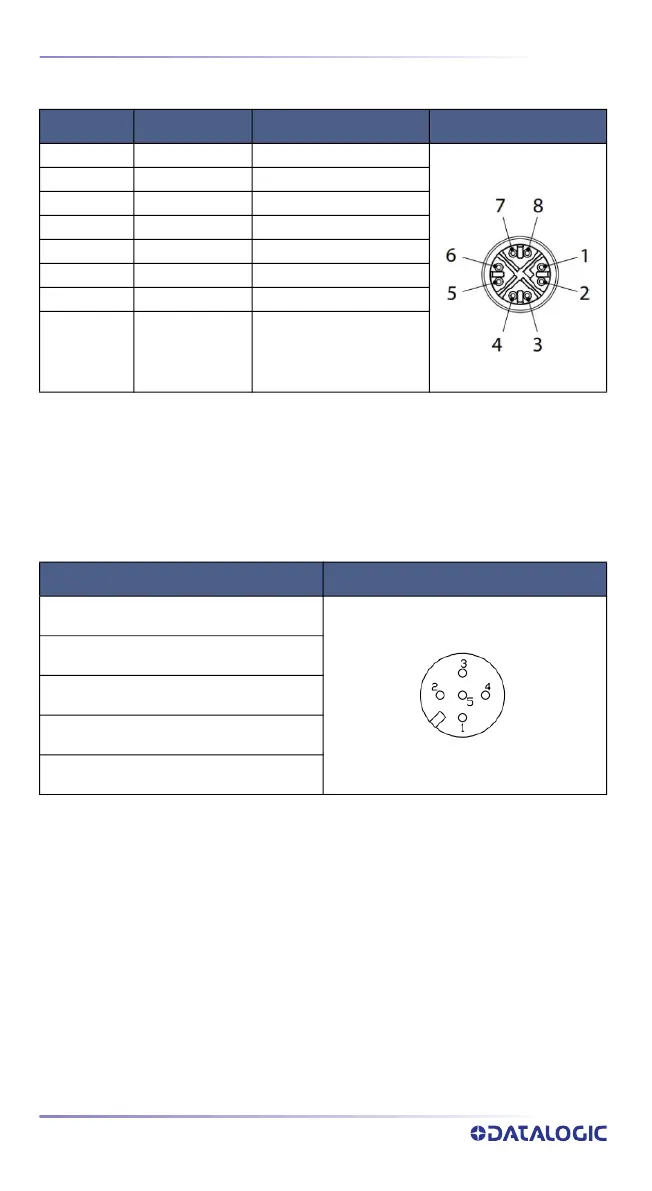

BC9681 Power Over Ethernet (PoE) Connection
M12 X-Coded Female Ethernet Network Connector
Power can be applied to any of the data pairs according to the IEE 802.3af
standard for Alternative A (Mid and Endspan) or Alternative B.
BC9681 External Power Connection
PIN NAME DESCRIPTION
1 TX+ Transmit Data +
2 TX- Transmit Data -
3 RX+ Receive Data +
4 RX- Receive Data -
5 DC1- Dc power -
6 DC2- Dc power -
7 DC1+ Dc power +
8
DC2+ Dc power +
DESCRIPTION
1 - BROWN 10-30V
2 - NOT USED (WITH HOLE)
3 - BLUE GND
4 - BLACK
5 - NOT USED (WITH HOLE)
