Datamax I-Class Mark II Quick Start Guide

Quick Start Guide
1 2

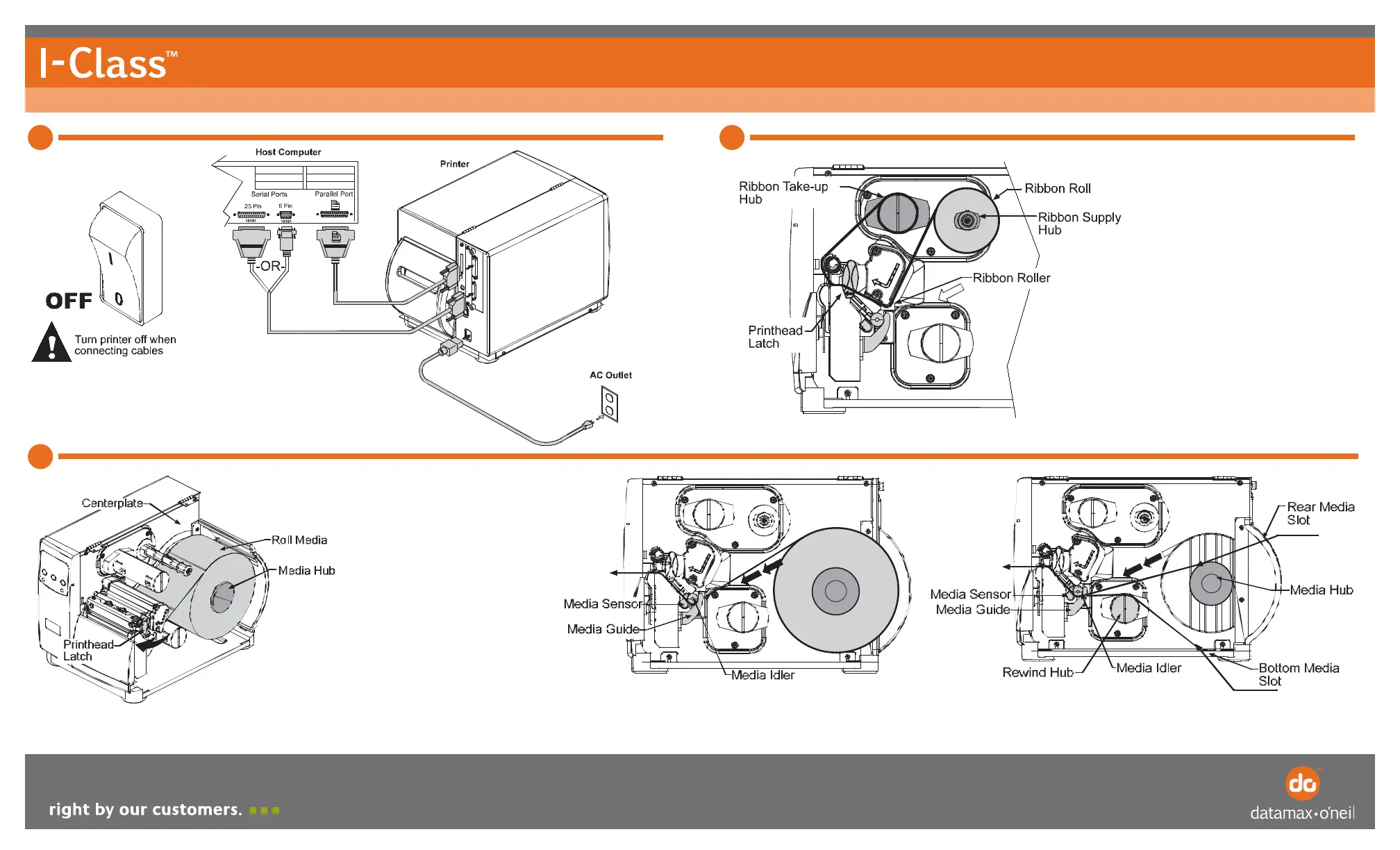

 Rotate the Printhead Latch and
raise the printhead
 Slide the ribbon onto Ribbon
Supply Hub
 Route the Ribbon as shown
 Wrap the ribbon around the
Ribbon Take-up Hub
 Close the printhead and rotate the
Ribbon Take-up Hub to remove
the slack in the ribbon
 Rotate the Printhead
Latch and raise the
printhead
 Slide the Roll Media
onto the Media Hub

Route the Media as
shown

Internal Media Loading
External Media Loading
3
*Optional

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
